Stainless Steel Wire Manufacturer in India
View sizes and diameter of SS 304 Annealed Wire
Table of content
- Stainless Steel Wire Specification
- Stainless Steel 304 Annealed Wire Size Chart
- SS 316 Woven Wire Dimensions
- Stainless Steel Flat Wire Chemical Composition
- Soft Annealed Stainless Steel Wire Mechanical Properties
- Polished Stainless Steel Wire Physical Properties
- SS 304 Spring Wire Uses
- Stainless Steel 316 Rope Wire HS Code
- Testing of Full Hard SS Wire
- 304 SS Annealed Wire Temperature Range
- Bright Stainless Steel Wire Features
- Thickness Chart of Stainless Steel 316 Woven Wire
- Stainless Steel Wire Price List
- Tolerance of Stainless Steel Chicken Wire
Stainless Steel Wire Specification
| Stainless Steel Spring Wire Length | Full Hard Stainless Steel WireDiameters | Stainless Steel Wire Grades |
|---|---|---|
|
|
|
| SS Wire Specifications | Stainless Steel Woven Wire Surface | Soft Annealed Stainless Steel Wire Group |
|
|
|
| SS Spring Wire Condition | Stainless Steel Rope Wire Technique | Half Hard Stainless Steel Wire Sizes |
|
|
|
| Stainless Steel Wires Packages | Polished Stainless Steel Wire Test Certificates | SS Wire Types/ Forms |
|
|
|
| Stainless Steel Woven Wire Dimensions | SS Annealed Wire Ultimate Strength ≥ MPa | Soft Annealed SS Wire Elongation ≥ % |
|
|
|
Various types of SS Wire
Polished Stainless Steel Wire

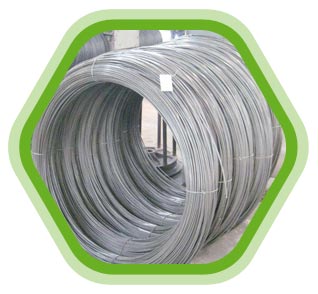

stainless steel 304 annealed wire

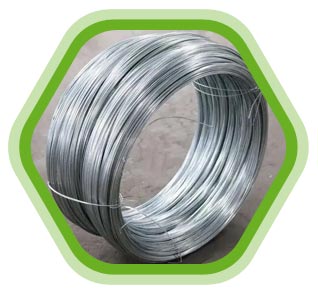

stainless steel 316 flat wire

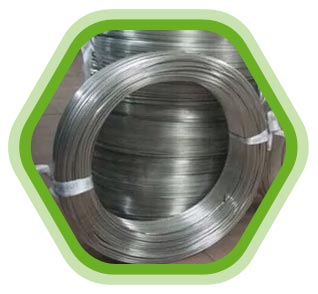

full hard stainless steel wire

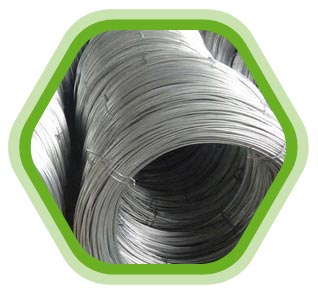

bright stainless steel wire
AISI 304 spring wireRefer Gauge Diameter of stainless steel 316 wire
Stainless Steel 304 Annealed Wire Size Chart
| Mesh Size | Gauge Diameter | ||
|---|---|---|---|
| Sizes in mm | In Inch | BWG No. | Sizes in mm |
| 19.1 | 3/4 | BWG21-16 | 0.81 – 1.65 |
| 15.9 | 5/8 | BWG21-16 | 0.81 – 1.65 |
| 12.7 | 1/2 | BWG22-16 | 0.71 – 1.65 |
| 25.4* 12.7 | 1 * 1/2 | BWG21-16 | 0.81 – 1.65 |
| 38.1 | 1 1/2 | BWG19-14 | 1.07 – 2.11 |
| 25.4 | 1 | BWG21-14 | 0.81 – 2.11 |
| 25.4 * 50.8 | 1 * 2 | BWG17-14 | 1.47 – 2.11 |
| 6.4 | 1/4 | BWG24-22 | 0.56- 0.71 |
| 50.8 | 2 | BWG16-12 | 1.65 – 2.77 |
| 9.5 | 3/8 | BWG23-19 | 0.64 – 1.07 |
| 50.8 to 305 | 2 to 12 | At Request | |
| Wires Diameter(mm) | Aperture (mm) |
Weight (Kg) | Mesh | Length(M) |
|---|---|---|---|---|
| 1.2 | 8 | 59 | 2.7 | 30 |
| 4.00 | 40 | 142 | 0.58 | 30 |
| 3.2 | 25 | 141 | 0.87 | 30 |
| 2.6 | 18 | 127 | 1.23 | 30 |
| 0.8 | 1.3 | 118 | 12 | 30 |
| 1.6 | 5 | 150 | 3.85 | 30 |
| 1.4 | 6 | 105 | 3.5 | 30 |
| 1.2 | 6 | 77 | 3.5 | 30 |
| 1.0 | 4 | 76 | 5 | 30 |
| 0.8 | 2.83 | 68 | 7 | 30 |
| 0.6 | 1.52 | 66 | 12 | 30 |
| 0.5 | 0.9 | 69 | 18 | 30 |
| 2.0 | 8 | 155 | 2.54 | 30 |
| 1.4 | 4 | 140 | 4.7 | 30 |
| 0.8 | 2.2 | 83 | 8.5 | 30 |
| 0.7 | 1.4 | 90 | 12 | 30 |
| 4.00 | 25 | 213 | 0.87 | 30 |
| 1.0 | 2.18 | 122 | 8 | 30 |
| 0.5 | 1.3 | 54 | 14 | 30 |
| 1.8 | 7 | 149 | 3 | 30 |
| 2.6 | 20 | 116 | 1.12 | 30 |
| 1.0 | 6 | 55 | 3.6 | 30 |
| 2.0 | 15 | 92 | 1.49 | 30 |
| 1.6 | 7 | 117 | 3 | 30 |
| 1.6 | 4 | 176 | 4.5 | 30 |
| 1.2 | 5 | 88 | 4 | 30 |
| 0.8 | 1.75 | 98 | 10 | 30 |
Polished Stainless Steel Wire is corrosion resistent and have atleast 10.5% chromium
Stainless Steel Flat Wire Chemical Composition
| AISI Grade |
Chemical Composition(%) | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Mn | Si | S | P | Cr | Ni | Mo | |
| 304 | =0.08 | =2.00 | =1.00 | =0.030 | =0.045 | 18.00~20.00 | 8.00~10.50 | – |
| 304L | =0.030 | =2.00 | =1.00 | =0.030 | =0.045 | 18.00~20.00 | 9.00~13.50 | – |
| 316 | =0.045 | =2.00 | =1.00 | =0.030 | =0.045 | 10.00~18.00 | 10.00~14.00 | 2.00~3.00 |
| 316L | =0.030 | =2.00 | =1.00 | =0.030 | =0.045 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 |
Soft Annealed Stainless Steel Wire Mechanical Properties
| Melting Point | 2650°F | 1454°C |
| Density | 0.289 lb/in³ | 8.0 g/cm³ |
| Modulus of Rigidity | 10196 ksi | 70.3 kN/mm² |
| Coefficient of Expansion | 10.1 x 10-6 in/in °F (70 – 212°F) | 18.2 μm/m °C (20 – 100°C) |
| Modulus of Elasticity | 27195 ksi | 187.5 kN/mm² |
Polished Stainless Steel Wire Physical Properties
| Condition | Approx. operating temperature | Approx. tensile strength | ||
|---|---|---|---|---|
| °F | °C | ksi | N/mm² | |
| Spring Temper | -330 to +570 | -200 to +300 | 189 – 319 | 1300 – 2200 |
| Annealed | -330 to +570 | -200 to +300 | 87 – 116 | 600 – 800 |
- Food Industry
- Automobile Industry
- Engineering
- Medical Industry
- Chemical Industry
- Construction
- Paper making
Stainless Steel 316 Rope Wire HS Code
| HS CODE | 72230099 |
|---|
- Pitting protection test
- Metallography Experimental Test
- Impact analysis
- Visual Dimension Test
- Penetrant Test
- Intergranular Corrosion Testing
- Roughness Testing
- Chemical examination analysis
- Hardness test
Stainless steel 304 spring wire can withstand temperature range of 1150°C
304 SS Annealed Wire Temperature Range
| Temperature Range | 1150°C |
|---|
Soft annealed stainless steel wire have good fatigue strength and impact toughness
Bright Stainless Steel Wire Features
- Flexibility
- Corrosion Resistance
- Fatigue strength
- Durability
- Versatility
- Impact toughness
- Ductility
- Electrical Conductivity
- Low Maintenance
Thickness Chart of Stainless Steel 316 Woven Wire
| Mesh | Wire Diameter (inch) |
% Open Area | Opening (inch) |
|---|---|---|---|
| 4 * 4 | 0.018 | 86 | 0.232 |
| 10 * 10 | 0.010 | 81 | 0.090 |
| 5 * 5 | 0.018 | 83 | 0.182 |
| 16 * 16 | 0.007 | 79 | 0.056 |
| 6 * 6 | 0.016 | 82 | 0.151 |
| 20 * 20 | 0.005 | 81 | 0.045 |
| 8 * 8 | 0.011 | 83 | 0.114 |
| 30 * 30 | 0.005 | 72 | 0.028 |
| 12 * 12 | 0.009 | 80 | 0.074 |
| 35 * 35 | 0.005 | 68 | 0.024 |
| 14 * 14 | 0.008 | 79 | 0.063 |
| 40 * 40 | 0.005 | 64 | 0.020 |
| 18 * 18 | 0.006 | 80 | 0.050 |
| 50 * 50 | 0.005 | 56 | 0.015 |
| 24 * 24 | 0.005 | 77 | 0.037 |
| 60 * 60 | 0.005 | 49 | 0.012 |
Stainless Steel Wire Price List
| Prices of stainless steel wire | Price In US | Price in UAE |
|---|---|---|
| AISI 304 ss Wire | US $ 9.99 | UAE 36.69 |
| Stainless Steel Wire Size: 100*100mm | US $ 6.85 | UAE 25.16 |
| SS wire Size: 10mm | US $ 475.30 | UAE 1745.78 |
Tolerance of Stainless Steel Chicken Wire
| Wire Diameter (inches) | Tolerance (± inches) |
|---|---|
| 0.500 | ±0.005 |
| 0.005 | ±0.0005 |
| 0.250 | ±0.003 |
| 0.010 | ±0.0005 |
| 0.100 | ±0.002 |
| 0.015 | ±0.001 |
| 0.125 | ±0.0025 |
| 0.020 | ±0.001 |
| 0.080 | ±0.002 |
| 0.025 | ±0.001 |
| 0.050 | ±0.0015 |
| 0.030 | ±0.001 |
| 0.062 | ±0.002 |
| 0.035 | ±0.001 |
| 0.045 | ±0.0015 |
| 0.040 | ±0.001 |
View delivery time for ss wire in different countries
| Destination Port | Delivery Timeline |
|---|---|
| Fujairah – UAE | 7-10 days |
| Ras Laffan – Qatar | 10-15 days |
| Dammam – Saudi Arabia | 10-15 days |
| Lagos – Nigeria | 25-30 days |
| Rotterdam – Netherlands | 25-30 days |
| Durban – South Africa | 25-30 days |
| Tanjung Priok – Indonesia | 10-15 days |
| Suez – Egypt | 15-20 days |
