Mild Steel Refractory Anchors

Manufacturer of Black MS Castable Anchors in India

$Mild Steel Refractory Anchors$

Table of content

Mild Steel Refractory Anchors specification

Diameter	Length	Type
6 mm to 20 mm	150 – 400 mm	Y-anchor V-anchor UV-anchor
Temperature Rating	Thickness	Standards
Up to 1000°C	2.3 mm to 2.5 mm	ASTM / ISO / EN
Surface Finish	Material Origin	Tolerances
Blackening Galvanized Buffing Hot Dip Galvanized Cadmium Zinc Plated Nickel Plated	Korean American Janpanese European Russia	+/- 3mm on Dimensional +/- 3° on Angular Dimensions
Installation Method	Corrosion Resistance
Welding or mechanical fixing	Moderate

Various Types of MS Refractory Anchor

MS UV Anchors

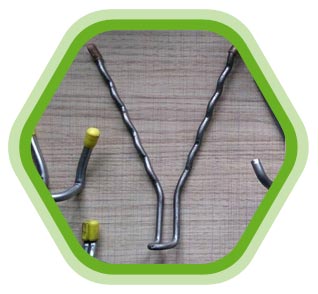

$Low Mild Steel refractory ceramic anchors$

Low Mild Steel refractory ceramic anchors

$Black Mild Steel Alloy refractory anchor$

Black Mild Steel Alloy refractory anchor

$Mild Steel Refractory fixing$

Mild Steel Refractory fixing

$Low MS Refractory Anchor Brick$

Low MS Refractory Anchor Brick

Mild Steel Castable Anchors

MS Brick Anchor sizes

Y- Anchors	Spiral Y Anchors	U anchors	V- Anchors
220 X 148 X 9 MM 188 X 48 X 9 MM 188 X 107 X9 MM 175 X 28 X 9 MM 155 X 69 X 9 MM 88 X 31 X 9 MM 85 X 29 X 9 MM	219 X 147 X 5 MM 192 X 47 X 5 MM 188 X 107 X 5 MM 178 X 37 X 5 MM 155 X 72 X 5 MM 90 X 32 X 5 MM 80 X 32 X 5 MM	45 X 15 X 05 MM 235 X 29 X 05 MM	65 X 25 X 10 MM

Black MS Castable Anchors chemical composition

Classification	Carbon (% Weight)	Secondary Alloying Elements (% Weight)
AISI 1008	<0.1	0.3 to 0.5 Mn; 0.04 P; 0.05 S
AISI 1015	0.13 to 0.18	0.3 to 0.6 Mn; 0.04 P; 0.05 S
AISI 1010	0.08 to 0.13	0.3 to 0.6 Mn; 0.04 P; 0.05 S

Mild Steel V refractory anchor mechanical properties

Ultimate Tensile Strength (MPa)	Modulus of Elasticity (GPa)	Brinell Hardness	Elongation at Break (%)	Yield Strength (MPa)
340	200	95	20	285

Mild Steel Refractory fixing melting point

Melting point

1350 – 1530°C

Low MS Refractory Anchor Brick Benefits

Black MS UV Anchors Testing and Inspection
