Stainless steel forged rings

Manufacturer of SS 304 Rolled Rings in India

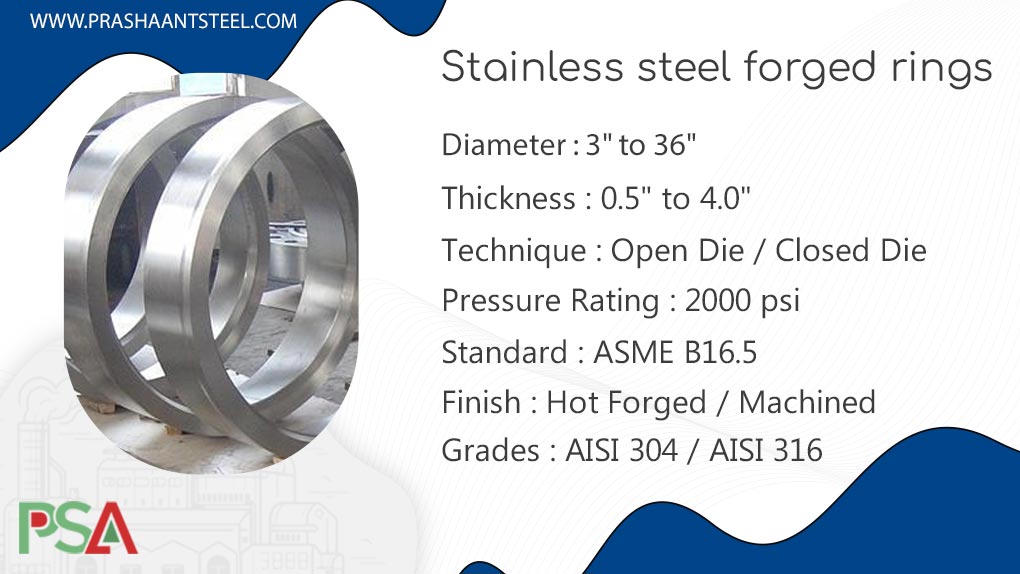

Stainless Steel Forged Rings

Table of content

Stainless Steel Forged Rings Specification

Stainless Steel Rolled Ring Forging Length	SS 304 Rolled Steel Rings Size range	316 SS Rolled Rings Thickness
18000 mm	UPTO 1800 OD	300 mm thick
Stainless steel 316 Rolled Steel Rings Forging Process	AISI 304 Rolled Ring Forging Benefits	SS Seamless Rolled Rings Quality and Caertificates
Drop Forging Hand Forging Machine Forging	High Strength Highly reliable Excellent Tolerance	ISO 9001:2015 Certification PED Certificate of Conformance ABS Certificate
Stainless Steel 304 Forged Steel Rings Heat Treatment	304 Stainless Steel Rolled Steel Rings Packing	SS Types
Tempering Stress Relieving Solution Annealing Quenching Annealing Normalizing	Inner Plastic Bag Wooden Case Custom Carton Box	Ring Rolling Forged Steel Rings Cold Rolled Steel Rings Seamless Rolled Rings Rolled Rings
Export to 304 SS Cold Rolled Steel Rings	AISI 316 Double Rolling Ring Machining	316 Stainless Steel Ring Rolling Specifications
Asia Middle East Sout America Europe Africa	milling drilling deep drilling boring vertical & horizontal turning	EN ASME DIN ASTM
SS Ring Rolling Grades	SS 316 Cold Rolled Rings Standards	SUS 304 Cold Rolled Steel Rings Width
SS 316 SS 304	A1090M ASTM A1090	Weight : 10,000 lbs Width : 3″ to 72″ OD

SS 304 Ring size

Thickness (mm)	Outer Diameter (OD) (mm)	Thickness (Inches)	Outer Diameter (OD) (Inches)
5	150	0.20	5.91
5	100	0.20	3.94
10	200	0.39	7.87
10	150	0.39	5.91
15	200	0.59	7.87
20	250	0.79	9.84
15	250	0.59	9.84
20	300	0.79	11.81
25	400	0.98	15.75
25	300	0.98	11.81
30	500	1.18	19.69
30	400	1.18	15.75
40	500	1.57	19.69
250	3000	9.84	118.11
50	600	1.97	23.62
40	600	1.57	23.62
50	800	1.97	31.50
75	1000	2.95	39.37
75	800	2.95	31.50
100	1000	3.94	39.37
150	1500	5.91	59.06
100	1500	3.94	59.06
150	2000	5.91	78.74
200	2500	7.87	98.43
200	2000	7.87	78.74
250	2500	9.84	98.43
300	3000	11.81	118.11

Machining range of SS seamless rolled rings

Structural rings	Bearing rings
500mm – 5,000mm	500mm – 2,400mm

SS rolled steel rings Chemical composition

Grade	Carbon	Titanium	Manganese	Nickel	Phosphorus	Sulfur	Chromium	Silicon	Molybdenum	Niobium
304	0.08		2	8.0-11.0	0.045	0.03	18.0-20.0	1
316	0.08		2	10.0-14.0	0.045	0.03	16.0-18.0	1	2.00-3.00

Stainless steel ring rolling Mechanical properties

Grade	Tensile Strength ksi (min)	Yield Strength 0.2% ksi (min)	Hardness MAX (Rockwell B)	Elongation %	Hardness MAX (Brinell)
304	70	25	92	40	201
316	75	30	95	40	217

SS double rolling ring Equivalent grade

STANDARD	Germany	France	British Standard	Russia	Japan	North America	Europe
STANDARD	WERKSTOFF NR.	AFNOR	BS	GOST	JIS	UNS	EN
304	1.4301	Z7CN18‐09	304S31	08Х18Н10	SUS 304	S30400	X5CrNi18-10
316	1.4401 / 1.4436	Z7CND17‐11‐02	316S31 / 316S33		SUS 316	S31600	X5CrNiMo17-12-2 / X3CrNiMo17-13-3

Quality testing of Stainless steel 304 cold rolled rings

Benefits of AISI 316 rolled ring forging
