Stainless Steel 904l Wire

AISI 904L Flat Wire Manufacturer in India

Table of content

Stainless Steel 904L Wire Specification
Manufacturing Techniques of 904l Stainless Steel Flat Wire
Stainless Steel 904L Wire Price List
Alloy 904l Thin Wire Features
ASTM A580 type 904l Round Wire Sizes
UNS N08904 Lashing Wire Dimensions
Thickness of WNR 1.4539 Flat Wire
ASME SA580 Filler Wire Chemical Composition
Mechanical Properties of AISI 904l Coil Wire
Equivalent Grades of SS 904L Spring Wire
HS Code of 904L SS Rope Wire
Applications of AISI 904L Flat Wire

Stainless Steel 904L Wire Specification

904l SS Wire Standard	AISI 904l Stainless Steel Wire Rope Length	Alloy 904l Flat Wire Diameter
ASTM A580 ASME SA580	Cut Lengths: 0.125 inch to 72 inches No Limits	10 microns to 1.0 mm 0.0004 – 0.040 inch
ASTM A580 type 904l Filler Wire Weaving methods	UNS N08904 TIG Wire Crimp Style	WNR 1.4539 Round Wire Packaging
plain weave dutch weave twill weave	Lock Crimp Flat Top Double Crimp Intercrimp	Reel Spool Carrier Coil Bobbin
SS 904l MIG Wire Testing	ASME SA580 904L Coil Wire Welding	Alloy 904l Spring Wire Finish
Hydrostatic Analysis Eddy Current Examining Pitting Protection Test Positive Material Recognition Power Generation Industries	Laser Bean Welding MAG-Welding Solid Wire Arc Welding (E) Submerged Arc Welding (SAW) TIG-Welding	Rough Turned Bright Polished Black BA Finish NO.4 Finish Matt Finish
Stainless Steel 904l Wire Types	AISI 904l Twistes Wire Test Certificate
Mig Wire Filler Wire Tig wire Coil Wire Spring Wire Twisted Wire Flat Wire	NACE MR0175 MTC as per EN 10204 3.2 NACE MR0103 EN 10204 3.1

Different types of SS 904L wire

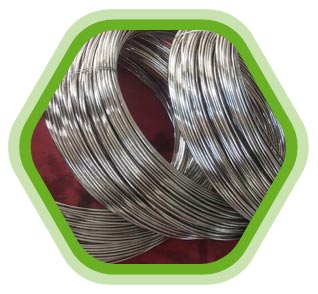

904l stainless steel polished wire

ASTM A580 type 904l round wire

UNS N08904 lashing wire

WNR 1.4539 flat wire

ASTM A580 Gr 904l coil wire

Alloy 904l thin wire

ASTM A580 type 904l round wire can be manufactured using Cold Heading or Cold Drawn technique

Manufacturing Techniques of 904l Stainless Steel Flat Wire

Cold Drawn
Hot Rolled
Hot drawn
Cold Rolled

Stainless Steel 904L Wire Price List

Price List of Stainless Steel 904L Wire	Price in USD	Price in UAE
904L SS Wire Size: 0.10 mm	US $ 15.00	UAE 55.25
Stainless Steel 904L Wire Size: 1.00 mm	US $ 10.00	UAE 36.73
SS 904L Wire Size: 2.00 mm	US $ 9.00	UAE 32.99

UNS N08904 lashing wire provides enhanced corrosion resistance in acidic condition

Alloy 904l Thin Wire Features

Non-Sensitizing
Corrosion Resistance
High Strength
Good Ductility
Resistance to Oxidation
High Nickel and Chromium Content
Versatility
Biocompatibility
Excellent Weldability

Refer sizes, thickness and dimensions of WNR 1.4539 flat wire

ASTM A580 type 904l Round Wire Sizes

Metric		ASTM/ Canadian		Japanese
Diam. (mm)	Size	Diam. (mm2)	Size	Diam. (mm)	Size
5	5	100	10M	6	6
11	11	2500	55M	29	29
5.5	5.5	200	15M	10	10
10	10	1500	45M	25	25
6	6	300	20M	13	13
22	22			48	48
7	7	500	25M	16	16
18	18			41	41
8	8	700	30M	19	19
20	20			44	44
9	9	1000	35M	22	22
28	28			57	57
12	12			32	32
40	40
14	14			35	35
36	36
16	16			38	38
44	44
25	25			51	51
50	50
32	32

UNS N08904 Lashing Wire Dimensions

Diameter or Width (mm)	Sectional Area		Weight per meter		Perimeter
	Round (cm²)	Square (cm²)	Round (kg)	Square (kg)	Round (cm)	Square (cm)
10	0.79	1.00	0.63	0.73	3.14	4.0
40	12.57	16.00	9.86	12.56	12.57	16.0
11	0.95	1.21	0.75	0.95	3.46	4.4
56	24.63	31.36	19.34	24.62	17.59	22.4
12	1.13	1.44	0.89	1.13	3.77	4.8
36	10.18	12.96	7.99	10.17	11.31	14.4
14	1.54	1.96	1.21	1.54	4.40	5.6
28	6.16	7.84	4.83	6.15	8.80	11.2
16	2.01	2.56	1.58	2.01	5.03	6.4
32	8.04	10.24	6.31	8.04	10.05	12.8
18	2.54	3.24	2.00	2.54	5.65	7.2
63	31.17	36.69	24.47	31.16	19.79	25.2
20	3.14	4.00	2.47	3.14	6.28	8.0
50	19.64	25.00	15.41	19.62	15.71	20.0
22	3.80	4.84	2.98	3.80	6.91	8.8
45	15.90	20.25	12.49	15.90	14.14	18.0
25	4.91	6.25	3.85	4.91	7.85	10.0
80	50.27	64.00	39.46	50.24	25.13	32.0
71	39.59	50.41	31.08	39.57	22.31	28.4

Thickness of WNR 1.4539 Flat Wire

Wire Thickness (mm)	Wire Thickness (inches)
0.10	0.004
0.15	0.006
0.20	0.008
0.25	0.010
0.30	0.012
0.40	0.016
0.50	0.020
0.60	0.024
0.70	0.028
0.80	0.032
1.00	0.040
1.20	0.047
1.50	0.059
2.00	0.079

Alloy 904l thin wire contains 19% chromium content

ASME SA580 Filler Wire Chemical Composition

Grade	C	Mn	P	Si	Cr	S	Ni	Mo	Cu
SS 904L	0.020 max	2.00 max	0.040 max	1.00 max	19.00 – 23.00	0.030 max	23.00 – 28.00	4.00 – 5.00 max	1.00 – 2.00

Mechanical Properties of AISI 904l Coil Wire

Melting Point	Density	Yield Strength	Tensile Strength	Elongation
1350 °C (2460 °F)	7.95 g/cm3	Psi 32000 , 220 MPa	Psi 71000 , 490 MPa	35 %

Equivalent Grades of SS 904L Spring Wire

STANDARD	WERKSTOFF NR.	UNS	EN	JIS	KS	BS	AFNOR
SS 904L	1.4539	N08904	X1NiCrMoCu25-20-5	SUS 904L	STS 317J5L	904S13	Z2 NCDU 25-20

HS Code of 904L SS Rope Wire

HS CODE	72210090

Applications of AISI 904L Flat Wire

Food and beverage
Hydrometallurgy
Pharmaceuticals
Flue gas cleaning
Desalination
Heat exchangers
Seawater handling
Petrochemical industry

Refer shipment time and the countries We export

Destination Port	Delivery Timeline
Rotterdam – Netherlands	25-30 days
Hamburg – Germany	25-30 days
Antwerp – Belgium	25-30 days
Los Angeles – USA	30-35 days
Jebel Ali – UAE	7-10 days
Sydney – Australia	25-30 days
Busan – South Korea	25-30 days
Tokyo – Japan	30-35 days
Durban – South Africa	25-30 days
Mombasa – Kenya	20-25 days
Marseilles – France	25-30 days
Valencia – Spain	25-30 days
Piraeus – Greece	25-30 days
