Copper Nickel 70/30 Pipe

70 30 Cu Ni Round Pipe Supplier in India

Table of content

Copper Nickel 70/30 Pipe Specification
Different types of 70/30 Cupro Nickel Pipe
Cupro Nickel 70/30 Hot Finished Seamless Pipe Dimensions
Copper Nickel 70/30 Pipe Price List
70/30 Copper Nickel Round Pipe Chemical Composition
Cu-Ni 70/30 Cold Drawn Pipe Mechanical Properties
ASTM B466 UNS C71500 Rectangular Pipe Equivalent Grades
Physical Properties of Cu-Ni 70/30 Seamless Pipe
70 30 Cu Ni Round Pipe Tolerance Chart
Weight Chart of WNR 2.0882 Rectangular Pipe
UNS C71500 Welde Pipe Features

Copper Nickel 70/30 Pipe Specification

Cuni 70/30 Welded Pipe Standard	Copper-nickel Alloy Seamless Pipe 70/30 Grade	Cupro Nickel 70/30 Clad Pipe Sizes
ASTM B466 / ASME SB466 ASME SB467 / ASTM B467	70/30	Size: 1/2 – 6 inches Outer Diameter : 4.00 – 22.00 mm
ASTM B466 70/30 Annealed Pipe Length	Cu Ni 70 30 Exhaust Pipe End	UNS C71500 Pipe Types
Double Random Cut to length Single Random	Plain Beveled Threaded	Welded Seamless
70 30 Copper Nickel Cold Drawn Pipe Delivery Condition	70 30 Cu Ni Seam Welded Pipe Surface Finish	WNR 2.0882 Pipe Form
Bright Pickled Polished Annealed	No.8 Mirror Finish No.4 2B No.1	Round Square Rectangular Hydraulic
Cu-Ni 70/30 Round Pipe Schedule	70/30 Copper Nickel Rectangular Pipe Testings	ASTM B466 UNS C71500 Square Pipe Test Reports
SCH XXS SCH XS SCH 160 SCH 80 SCH 10 SCH 5	Positive Material Identification – PMI Testing Destructive Test Hardness Test Third Party Inspection Ultrasonic Test Pitting Resistance	EN 10204/3.1B Third Party Inspection Report 100% Radiography Test Report Raw Materials Certificate
70 30 Cu Ni Bright Annealed Pipe Manufacturing Method	Copper Nickel 2.0882 Exhaust Pipe Services	70/30 Copper-nickel Alloy Solution Annealed Pipe Packaging
Cold Drawn Cold Rolled Precision Rolled Hot Rolled	Beveling Threading welding cut-to-length services machining	PE Fabric Bundles Wooden Boxes Wrapped in plastic Crates Bundles custom
ASME SB466 70/30 Cold Finished Seamless Pipe Hardness	Cuni 70/30 Welded Pipes Welding Method	WNR 2.0882 Hot Finished Seamless Pipe Applications
full hard 1/8 hard 1/6 hard 3/8 hard 1/2 hard 1/4 hard soft	MIG Welding Tack welding Gas-shielded Metal Arc Brazing TIG Welding Gas-shielded Tungsten Arc Manual Metal Arc	Power Plant Industry Energy Industry Refining Industry Oil and Gas Industry Pulp & Paper Indusry Pharmaceuticals Industry

Different types of 70/30 Cupro Nickel Pipe

Cuni 70/30 Cold Finished Pipe

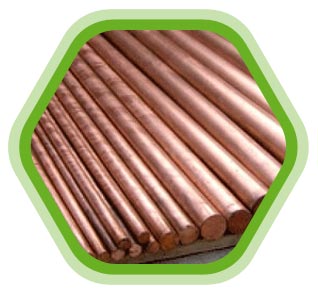

UNS C71500 Round Pipe

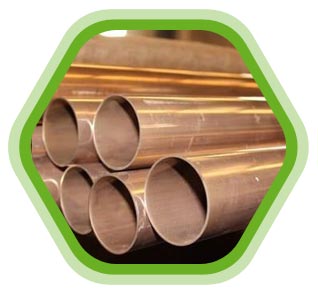

Copper Nickel 70/30 Seamless Pipe

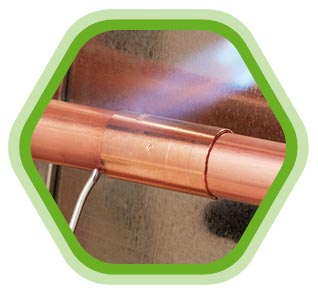

WNR 2.0882 Welded Pipe

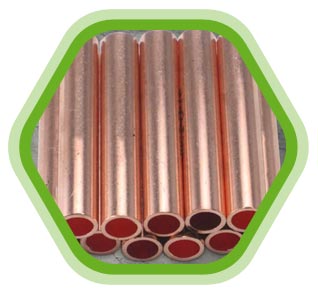

Cupro Nickel 70/30 Hot Finished Pipe

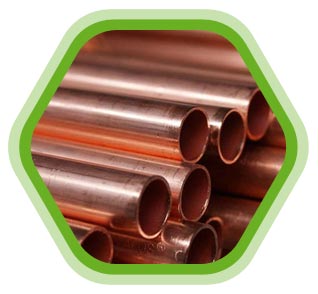

ASTM B466 C71500 Square Pipe

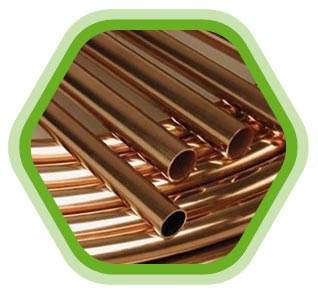

70/30 Copper Nickel Annealed Pipe

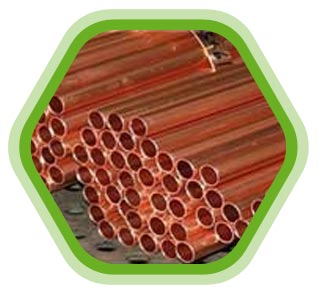

Cu-ni 70/30 Cold Drawn Pipe

Cuni 70/30 cold finished pipe contains 70% copper, Refer UNS C71500 ERW pipe dimensions in MM

Cupro Nickel 70/30 Hot Finished Seamless Pipe Dimensions

Size (in)	Outside Diameter (in)	Wall Thickness (in)	Approx Weight (lbs/ft)
2-1/2	2.88	0.38	12.1
1/2	0.84	0.120	1.1
1-1/2	1.9	0.25	5.25
1/4	0.54	0.072	0.43
1-1/4	1.66	0.220	2.18
3/4	1.05	0.148	1.71
1	1.32	0.180	2.61
3/8	0.68	0.095	0.19
3	3.5	0.46	18.7
2	2.38	0.340	8.85

Get latest price list of Copper Nickel 70/30 seamless pipe, Manufacturer of WNR 2.0882 welded pipe in Schedule range of SCH 5 to XXS

Copper Nickel 70/30 Pipe Price List

Price List of Copper-Nickel 70/30 Pipe	70/30 Copper-Nickel Pipe Price in USD	Pipe Price in UAE Dirham
Copper-Nickel 70/30 PIPE SIZE: OD 100 mm x WT 5 mm x Length 6000 mm	US $ 8.50	UAE 31.24
70/30 Copper-Nickel PIPE SIZE: OD 50 mm x WT 3 mm x Length 5000 mm	US $ 9.00	UAE 33.06

70/30 Copper Nickel Round Pipe Chemical Composition

Grade	Mn	Cu	Zn	Pb	Fe	Ni
Cu-Ni 70-30	1 max	65.0 min	1 max	.05 max	0.4-1.0	29-33

Cupro nickel 70/30 hot finished pipe have high oxidation resistance, ASTM B466 C71500 square pipe has a tensile strength of 50,000 psi

Cu-Ni 70/30 Cold Drawn Pipe Mechanical Properties

Properties	Imperial	Metric
Melting point	1171°C	2140°F
Density	0.323 lb/in3	8.94 g/cm3

ASTM B466 UNS C71500 Rectangular Pipe Equivalent Grades

STANDARD	WNR.	UNS
Copper Nickel 70/30	2.0882	C71500

Physical Properties of Cu-Ni 70/30 Seamless Pipe

Properties	Imperial	Metric
Charpy impact	78.9 ft-lb	107 J
Tensile strength, ultimate	54000-75000 -psi	372-517- MPa
Machinability	20%	20%
Tensile strength, yield	12800-70100 , psi	88.0-483- MPa
Shear modulus	8270 ksi	57.0 – GPa
Elongation at break	45.0%	45.0%
Elastic modulus	21800 ksi	150 – GPa
Poisson’s ratio	0.34	0.34

70 30 Cu Ni Round Pipe Tolerance Chart

Pipe Size (Nominal)	Outer Diameter (OD) Tolerance	Wall Thickness Tolerance	Length Tolerance
1″	±0.02 inches	±10%	±1.0 inches
1/2″	±0.02 inches	±10%	±1.0 inches
1-1/2″	±0.02 inches	±10%	±1.0 inches
1-1/4″	±0.02 inches	±10%	±1.0 inches
2-1/2″	±0.03 inches	±10%	±1.0 inches
3/4″	±0.02 inches	±10%	±1.0 inches
3″	±0.03 inches	±10%	±1.0 inches
2″	±0.03 inches	±10%	±1.0 inches
4″	±0.04 inches	±10%	±1.0 inches

View specification and weight chart of 70/30 Copper Nickel annealed pipe, Machinability rating of Cu-Ni 70/30 cold drawn pipe is 20%

Weight Chart of WNR 2.0882 Rectangular Pipe

N.P.S.	O.D.		SCH	Wall Thk.		Wght IN LBS	Wght In KG
N.P.S.	Inch.	Millimeter	SCH	Inch.	Millimeter	LBS/ Foot	Kilogram/ Meter
1″	1.315	33	40 STD	0.133	3.378	1.679	2.501
12″	12.750	324		0.188	4.775	25.222	37.570
2″	2.375	60	40 STD	0.154	3.912	3.653	5.441
42″	42.000	1067		0.312	7.925	138.911	206.914
3″	3.500	89	40 STD	0.216	5.486	7.576	11.284
16”	16.000	406		0.188	4.775	21.748	47.290
4″	4.500	114		0.237	6.020	10.790	16.073
24″	24.000	610		0.250	6.350	63.413	94.456
6″	6.625	168		0.188	4.775	12.924	19.252
36″	36.000	914		0.250	6.350	95.453	142.180
8″	8.625	219		0.188	4.775	16.940	25.233
48″	48.000	1219	STD	0.375	9.525	190.738	284.112
10″	10.750	273		0.188	4.775	21.207	31.588
30″	30.000	762		0.250	6.350	79.433	118.318
14″	14.000	356		0.188	4.775	27.732	41.308
20″	20.000	508		0.250	6.350	52.733	78.547
18″	18.000	457		0.219	5.563	41.588	61.948

UNS C71500 Welde Pipe Features

Ductility
Strength
Thermal Conductivity
Corrosion Resistance
Resistance to Biofouling
Durability
Thermal Expansion
Non-magnetic
Stress Corrosion Cracking Resistance

View the estimated time of delivery for different countries.

Destination Port	Typical Delivery Timeline
Rotterdam – Netherlands	25-30 days
Hamburg – Germany	25-30 days
Antwerp – Belgium	25-30 days
Los Angeles – USA	30-35 days
Jebel Ali – UAE	7-10 days
Sydney – Australia	25-30 days
Busan – South Korea	25-30 days
Tokyo – Japan	30-35 days
Durban – South Africa	25-30 days
Mombasa – Kenya	20-25 days
Marseilles – France	25-30 days
Valencia – Spain	25-30 days
Piraeus – Greece	25-30 days
