Nickel alloy bleed ring
Manufacturer of Nickel 200 Bleed Ring Flange in India
Table of content
- Nickel Alloy Bleed Ring Specification
- Various Types of Ni Bleed Rings
- Pure Nickel Bleed Rings Chemical Composition
- Ni Flange Bleed Ring Mechanical Properties
- Nickel Bleed Ring Equivalent Grade
- Benefits of Pure Nickel Alloy Drip Ring
- Size Chart of Nickel Alloy 200 Flange Bleed Ring
- Quality and Testing of Ni Alloy 201 Bleed Rings For Flanges
Pure Nickel bleed rings for flanges allows safe release of trapped gases or liquids
Nickel Alloy Bleed Ring Specification
| Ni 200 Bleed Ring Flange Size Range | Nickel 201 Bleed Rings For Flanges Ratings | Pure Nickel Bleed Flange Sealing Finish |
|---|---|---|
|
|
|
| Ni 201 Bleed Rings For Flanges Face Type | Ni Flange Bleed Ring Alloy Ports | Nickel 200 Drip Ring Materials |
|
|
|
| Ni Bleed Rings Also called | Nickel Alloy Bleed Ring Types | Nickel Flange Bleed Ring Packaging |
|
|
|
| Ni 201 Bleed Flange Standards | Nickel 200 Bleed Ring Flange Advantages | Nickel Bleed Rings Origin |
|
|
|
| Pure Nickel Alloy Drip Ring Test Certificates | Ni Alloy Bleed Flange Coatings |
Ni 200 Bleed Ring Flange Equipment |
|
|
|
Various Types of Ni Bleed Rings

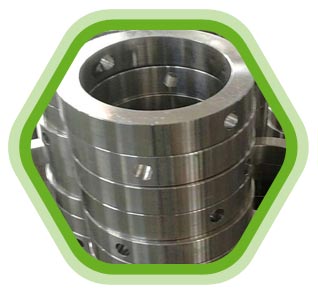

Nickel 201 Bleed Rings For Flanges

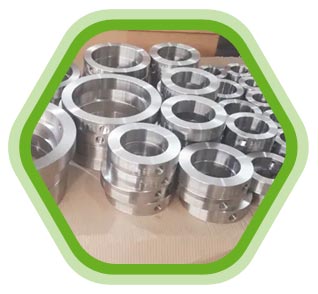

UNS N02200 Flange Bleed Ring

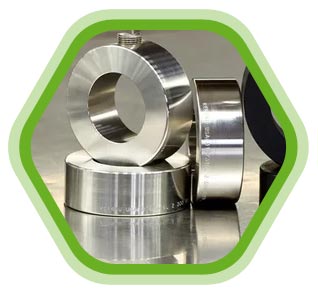

Ni 200 Drip Ring

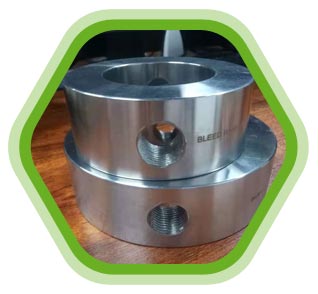

Nickel Alloy Bleed Ring Flange

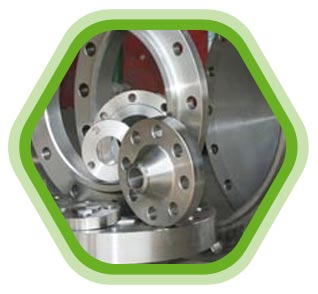

Pure Nickel Bleed FlangePure Nickel Bleed Rings Chemical Composition
| Grade | Ni | C | Si | Mn | Cu | S | Fe |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 99.0 min | 0.15 max | 0.35 max | 0.35 max | 0.25 max | 0.01 max | 0.40 max |
| Nickel 201 | 99.0 min | 0.02 max | 0.35 max | 0.35 max | 0.25 max | 0.01 max | 0.40 max |
Ni Flange Bleed Ring Mechanical Properties
| Element | Tensile Strength | Density | Yield Strength (0.2%Offset) | Melting Point | Elongation |
| Nickel 200 / 201 | Psi – 67000 , MPa – 462 | 8.9 g/cm3 | Psi – 21500 , MPa – 148 | 1446 °C (2635 °F) | 45 % |
Nickel Bleed Ring Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | BS | GOST | JIS | EN |
| Nickel 200 | N02200 | 2.4066 | N-100M | NA 11 | НП-2 | NW 2200 | Ni 99.2 |
| Nickel 201 | N02201 | 2.4068 | – | NA 12 | НП-2 | NW 2201 | LC-Ni 99 |
Nickel 200 flange bleed ring have excellent corrosion resistance and good weldability
Benefits of Pure Nickel Alloy Drip Ring
- Weldability
- Enhanced Strength
- Corrosion Resistance
- Versatility
- High-Temperature Stability
- Fatigue Resistance
Nickel 201 bleed flange are available in wide range of sizes
Size Chart of Nickel Alloy 200 Flange Bleed Ring
| Size (Nominal) | Length | Inner Diameter (ID) | Outer Diameter (OD) | Thickness |
|---|---|---|---|---|
| 2″ | 1 in | 1.75 in | 2.00 in | 0.125 in |
| 1.5″ | 1 in | 1.50 in | 1.75 in | 0.125 in |
| 1/4″ | 1 in | 0.25 in | 0.50 in | 0.125 in |
| 3/4″ | 1 in | 0.75 in | 1.00 in | 0.125 in |
| 1/2″ | 1 in | 0.50 in | 0.75 in | 0.125 in |
| 1″ | 1 in | 1.00 in | 1.25 in | 0.125 in |
Ultrasonic and Hydrostatic Testing are done on UNS N02200 bleed ring
Quality and Testing of Ni Alloy 201 Bleed Rings For Flanges
- Tensile Testing
- Non-Destructive Testing (NDT)
- Hydrostatic Testing
- Hardness Testing
- X-Ray Inspection
- Electrochemical Testing
- Ultrasonic Testing
- Salt Spray Testing
