Copper Nickel 90/10 Flange
Manufacturer of UNS C70600 Slip on flanges in India
Prashaant Steel stock Copper Nickel 90/10 flanges in different sizes and specifications. Our UNS C70600 Slip on flanges are manufactured to exceed industry standards and they are well suited for industries such as marine, offshore oil and gas, chemical processing, power generation and desalination plants.
Copper Nickel 90/10 flanges supplied by us are designed for such severe environment as they offer mechanical strength and tensile strength for high pressure applications. Cuni 90/10 Lap Joint Flanges possess high tensile strength and are well suited for mechanical stresses as well as for fluctuating temperatures, so they are ideal for being used in flowlines, chemical injection systems, boilers and heat exchangers.
The ASTM B151 UNS C70600 Blind Flange offer high heat transfer coefficient such that systems in application continue to run efficiently even under stress. This makes them the best when it comes to operation of industries such as the power generating industries and water desalination plants in which temperature is an important determinant of the operational ability. Our WNR 2.0872 flanges go through possible tests and inspections so that they can pass the ASTM B150, ASTM B564, ANSI, and ASME standards.
90/10 Copper Nickel Nickel Spectacle Flange can used in high pressure or low pressure requirement and make adjustments according to the customers’ request. Cupro nickel 90/10 RTJ Flange possess excellent biochemical erosion tolerance, high working temperatures and resistance to high pressure. PSA is manufacturer of Cuni 90/10 orifice flange which has resistance to hydrochloric acid, sulfuric acid, and chlorides.
Table of content
- Copper Nickel 90/10 Flange Specification
- Different Types of 90/10 Copper Nickel Flange
- Copper Nickel 90/10 Flange Price List
- Uns C70600 Blind Flange Dimensions
- Pressure Rating of 90 10 Cu Ni Threaded Flange
- ASTM B151 UNS C70600 Weld Neck Flange Chemical Composition
- Din 2.0872 Reducing Flange Mechanical Properties
- 90/10 Copper Nickel Weld Neck Flange Equivalent Grades
- Physical Properties of Cupro Nickel 90/10 Socket Weld Flange
- Tolerance Chart of Cu-ni 90/10 Orifice Flange
- Cupro Nickel 90/10 RTJ Flange Weight Chart

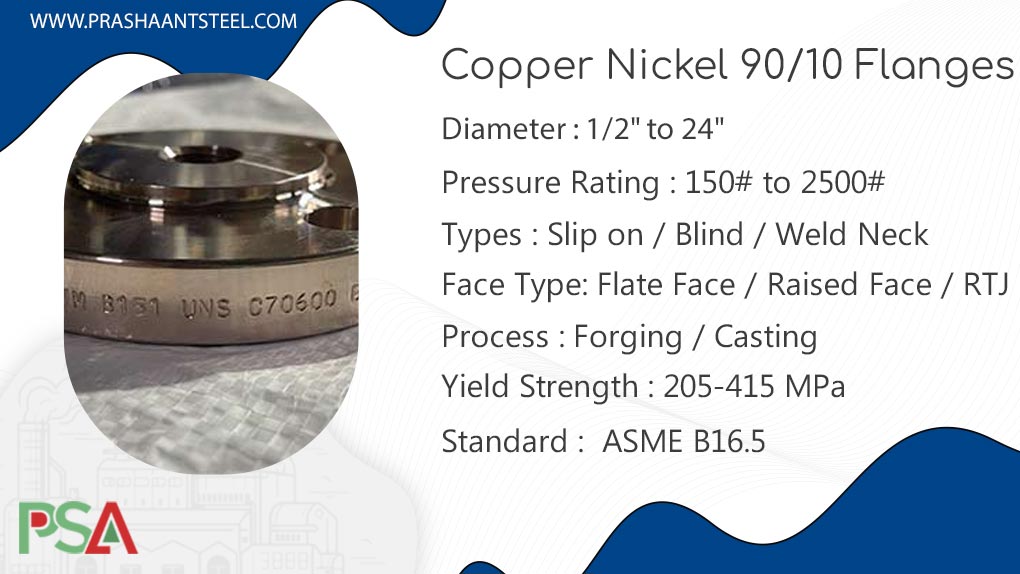

Copper Nickel 90/10 Flange Specification
| Cu-Ni 90/10 Socket Weld Flange Sizes | 90/10 Copper Nickel Slip on Flange Manufacturer Test Certificate | Cuni 90/10 Lap Joint Flange Thickness |
|---|---|---|
|
|
|
| ASME B151 90/10 Weld Neck Flange Pressure Rating Class | DIN 2.0872 Blind Flange Low Temperature Chart | 90/10 Copper Nickel Alloy Reducing Flange Temperature For Class 150 |
|
|
|
| ASTM B151 UNS C70600 Threaded Flange Standards | Copper Nickel Alloy 90/10 Long Weld Neck Flange Face Type | 90 10 Cu Ni Orifice Flange Applications |
|
|
|
| 90/10 Cupro Nickel Slip on Flange Production Technique | WNR 2.0872 Lwn Flange Wall Thickness | UNS C70600 RTJ Flange Threads |
|
|
|
| Cuni 90/10 Blind Flange Packaging | 90/10 Copper Nickel SORF Flange Coating | 90 10 Copper Nickel Reducing Flange Value added services |
|
|
|
| Cupro Nickel 90/10 Blind Flange Inspection methods | Types of Copper Nickel 90/10 Flange | |
|
|
Different Types of 90/10 Copper Nickel Flange
Copper Nickel 90/10 Flange

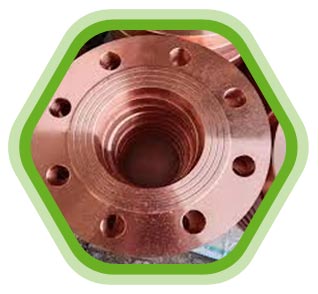

ASTM B466 UNS C70600 Slip on Flange

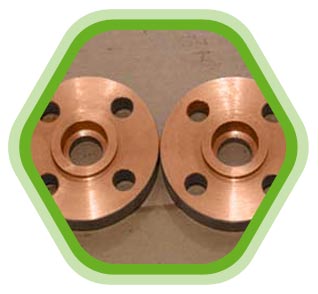

Cupro nickel 90/10 Blind Flange

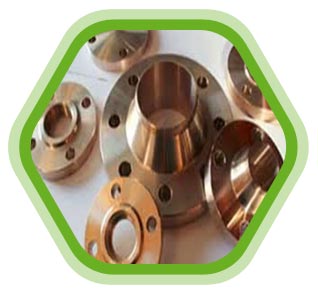

UNS C70600 Buttweld Weld Neck Flange
90/10 Copper Nickel Orifice Flange

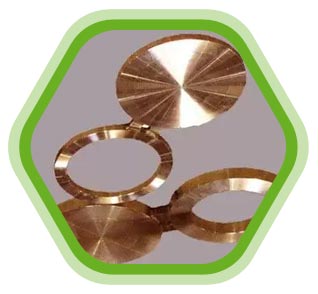

WNR 2.0872 Nickel Spectacle Flange

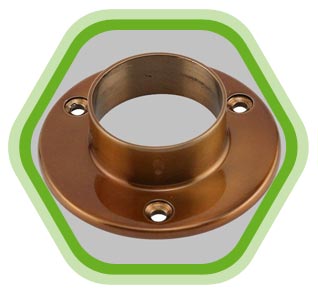

90 10 copper nickel Socket Weld Flange
Cuni 90/10 RTJ FlangeCopper Nickel 90/10 Flange Price List
| Price list of Copper Nickel 90/ 10 | Pipe Price in USD | Pipes Price in UAE Dirham |
|---|---|---|
| 90/10 COPPER NICKEL WELD NECK FLANGES 1 1/2 | US $ 51.31 | UAE 188.46 |
| COPPER -NICKEL 90/10 Flange Size: 1 1/4 | US $ 58.36 | UAE 214.36 |
Refer Cupro Nickel 90/10 flange price list, Check sizes and dimensions of WNR 2.0872 RTJ flange
Uns C70600 Blind Flange Dimensions
| (Normal Size Of Steel Pipe) In Inch | Daimeter Of BLRF Bolt Holes | Weight in Kg (Kilogram) | # BLRF Flange Bolts Holes |
RF Daimeter Of (C) |
Outer Daimeter Of (A) |
|---|---|---|---|---|---|
| 1-1/4 | 3/4 | 6 | 4 | 2-1/2 | 5-1/4 |
| 3/4 | 3/4 | 3 | 4 | 1-11/16 | 4-5/8 |
| 3 | 7/8 | 16 | 8 | 5 | 8-1/4 |
| 1 | 3/4 | 4 | 4 | 2 | 4-7/8 |
| 4 | 7/8 | 28 | 8 | 6-3/16 | 10 |
| 2 | 3/4 | 8 | 8 | 3-5/8 | 6-1/2 |
| 8 | 1 | 79 | 12 | 10-5/8 | 15 |
| 5 | 7/8 | 37 | 8 | 7-5/16 | 11 |
| 16 | 1-3/8 | 315 | 20 | 18-1/2 | 25-1/2 |
| 10 | 1-1/8 | 122 | 16 | 12-3/4 | 17-1/2 |
| 14 | 1-1/4 | 241 | 20 | 16-1/4 | 23 |
| 6 | 7/8 | 48 | 12 | 8-1/2 | 12-1/2 |
| 18 | 1-3/8 | 414 | 24 | 21 | 28 |
| 12 | 1-1/4 | 183 | 16 | 15 | 20-1/2 |
| 24 | 1-5/8 | 800 | 24 | 27-1/4 | 36 |
| 20 | 1-3/8 | 515 | 24 | 23 | 30-1/2 |
90/10 Copper Nickel slip on flange has moderate strength and good thermal stability, View Cuni 90/10 orifice flange pressure rating
Pressure Rating of 90 10 Cu Ni Threaded Flange
| Temp°C | 2500 | 150 | 900 | 300 | 600 | 400 | 1500 |
|---|---|---|---|---|---|---|---|
| 600 | 55.3 | – | 19.9 | 6.6 | 13.3 | 8.9 | 33.2 |
| -29 ~ 38 | 430.9 | 20.0 | 155.1 | 51.7 | 103.4 | 68.9 | 258.6 |
| 538 | 137.9 | 1.4 | 49.6 | 16.5 | 33.1 | 22.1 | 82.7 |
| 50 | 430.9 | 19.5 | 155.1 | 51.7 | 103.4 | 68.9 | 258.6 |
| 625 | 42.8 | – | 15.4 | 5.1 | 10.3 | 6.8 | 25.7 |
| 100 | 429.4 | 17.7 | 154.6 | 51.5 | 103.0 | 68.7 | 257.6 |
| 500 | 235.0 | 2.8 | 84.7 | 28.2 | 56.5 | 37.6 | 140.9 |
| 200 | 405.4 | 13.8 | 145.8 | 48.6 | 97.2 | 64.8 | 243.4 |
| 425 | 291.6 | 5.5 | 105.1 | 35.2 | 70.0 | 46.5 | 175.1 |
| 300 | 357.1 | 10.2 | 128.6 | 42.9 | 85.7 | 57.0 | 214.4 |
| 400 | 304.9 | 6.5 | 109.8 | 36.5 | 73.3 | 48.9 | 183.1 |
| 325 | 344.3 | 9.3 | 124.0 | 41.4 | 82.6 | 55.0 | 206.6 |
ASTM B151 UNS C70600 Weld Neck Flange Chemical Composition
| Grade | Zn | Pb | Mn | Cu | Fe | Ni |
|---|---|---|---|---|---|---|
| Cu-Ni 90-10 | 1 max | .05 max | 1.0 max | 88.6 min | 1.8 max | 9-11 max |
UNS C70600 blind flange offers resistance to hydrogen embrittlement, Refer physical properties of 90 10 copper nickel lap joint flange
Din 2.0872 Reducing Flange Mechanical Properties
| Properties | Imperial | Metric |
|---|---|---|
| Density | 0.323 lb/in3 | 8.94 g/cm3 |
| Melting Point – Liquidus | 2100 F | 1149 C |
| Melting Point – Solidus | 2010 F | 1099 C |
90/10 Copper Nickel Weld Neck Flange Equivalent Grades
| STANDARD | UNS | WNR. |
|---|---|---|
| Copper Nickel 90/10 | C70600 | 2.0872 |
Physical Properties of Cupro Nickel 90/10 Socket Weld Flange
| Properties | Imperial | Metric |
|---|---|---|
| Machinability | 20% | 20% |
| Tensile strength, yield | 16000-57000 -psi | 110-393 -MPa |
| Elongation at break | 42.00% | 42.00% |
| Tensile strength, ultimate | 43900-60000 -psi | 303-414 -MPa |
| Poisson’s ratio | 0.34 | 0.34 |
| Shear modulus | 7540 -ksi | 52.0 -GPa |
Manufacturer of ASTM B151 UNS C70600 socket weld flange using forging process, View tolerance of Cupro nickel 90/10 weld neck flange
Tolerance Chart of Cu-ni 90/10 Orifice Flange
| Flange Size (inches) | Diameter Tolerance (OD) | Bolt Hole Diameter Tolerance | Length Tolerance | Thickness Tolerance |
|---|---|---|---|---|
| 1/2″ | ±0.12 mm | ±0.2 mm | ±1.0 mm | ±0.5 mm |
| 3/4″ | ||||
| 1″ | ||||
| 1-1/4″ | ||||
| 1-1/2″ | ||||
| 2″ | ||||
| 2-1/2″ | ||||
| 3″ | ||||
| 4″ | ||||
| 6″ | ±0.15 mm | ±1.5 mm | ||
| 8″ | ||||
| 10″ | ||||
| 12″ |
Cupro Nickel 90/10 RTJ Flange Weight Chart
| Flange Size (inches) | Diameter Tolerance (OD) | Bolt Hole Diameter Tolerance | Length Tolerance | Thickness Tolerance |
|---|---|---|---|---|
| 1/2″ | ±0.12 mm | ±0.2 mm | ±1.0 mm | ±0.5 mm |
| 3/4″ | ||||
| 1″ | ||||
| 1-1/4″ | ||||
| 1-1/2″ | ||||
| 2″ | ||||
| 2-1/2″ | ||||
| 3″ | ||||
| 4″ | ||||
| 6″ | ±0.15 mm | ±1.5 mm | ||
| 8″ | ||||
| 10″ | ||||
| 12″ |
View the countries that we export as well as the shipment time.
| Destination Port | Typical Delivery Timeline |
|---|---|
| Colombo – Sri Lanka | 5-7 days |
| Dubai – UAE | 7-10 days |
| Mombasa – Kenya | 20-25 days |
| Port Klang – Malaysia | 10-15 days |
| Durban – South Africa | 25-30 days |
| Rotterdam – Netherlands | 25-30 days |
| Hamburg – Germany | 25-30 days |
| Bangkok – Thailand | 10-15 days |
| Tanjung Priok – Indonesia | 10-15 days |
| Barcelona – Spain | 25-30 days |
