Cupro Nickel Pipe Manufacturer in India

View Sizes and Dimensions of CuNi Seamless Pipes

Copper nickel Pipe manufacturer in India

Table of content

Cupro Nickel Pipe Specification
Various types of Cuni Pipe
Copper Nickel Pipe Price List
Weight Chart of Cupro Nickel Metal Square Pipe
CuNi Seamless Pipes Dimensions
Cupro Nickel Alloy Cold Finished Pipe Chemical Composition
ASTM B466 Rectangular Pipe Mechanical Properties
Cuni Alloy Welded Pipe Equivalent Grades
Schedule Chart of Copper Nickel Alloys Round Pipe
Cunifer Hot Finished Pipe Applications

Cupro Nickel Pipe Specification

Cuni Alloy Annealed Pipe Standard	ASTM B466 Square Pipe Grade	Cupronickel Bright Annealed Pipe Sizes
ASTM B467 / ASME SB467 ASTM B466 / ASME SB466	70/30 90/10	Size: 0.5 inch to 6 inch Outer Diameter : 4.00 mm to 22.00 mm
ASME SB467 Square Pipe Length	Cupro Nickel Metal Welded Pipe End	Cu-ni Pipe Types
Cut to length Double Random Single Random	Beveled Plain Threaded	Seamless Welded
Copper Nickel Alloys Seamless Pipe Delivery Condition	Cunifer Pipe Surface Finish	Cupro Nickel Pipe Form
Annealed Bright Polished Pickled	2B No.4 No.8 No.1 Mirror Finish	Hydraulic Round Rectangular Square
Copper Nickel Rectangular Pip Schedule	Cuni Hot Finished Pipe Testings	Cu Ni Alloy Cold Drawn Pipe Test Reports
SCH XXS SCH 160 SCH XS SCH 10 SCH 80 SCH 5	PMI Testing Third Party Inspection Destructive Test Ultrasonic Test Hardness Test Pitting Resistance	Third Party Inspection Report EN 10204/3.1B 100% Radiography Test Report
Copper Nickel Cold Finished Pipe Manufacturing Method	Cupro Nickel Hot Finished Pipe Services	Cupro Nickel Alloy Seamless Pipe Packaging
Precision Rolled Cold Drawn Hot Rolled Cold Rolled	Cut-to-length services welding Beveling machining Threading	Bundles PE Fabric Bundles custom Wooden Boxes Crates Wrapped in plastic
Cupro Nickel Metal Round Pipe Hardness	Copper Nickel Pipe Welding Method	Cu Ni Alloy Rectangular Pipe Dimensional Standarsd
soft full hard 1/8 hard 3/8 hard 1/6 hard 1/4 hard 1/2 hard	TIG Welding MIG Welding Gas-shielded Tungsten Arc Tack welding Manual Metal Arc Gas-shielded Metal Arc Brazing	ASTM DIN ASME EN

Various types of Cuni Pipe

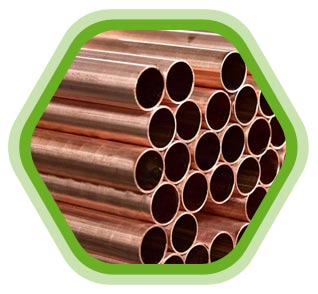

Cupro Nickel Seamless Pipe

Cupronickel Welded Pipe

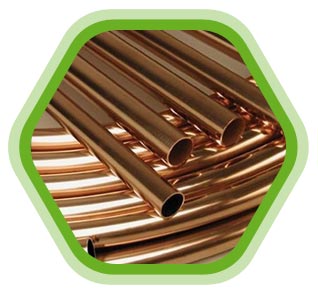

Cu Ni Alloy Annealed Pipe

Cuni Cold Drawn Pipe

Cunifer Cold Finished Pipe

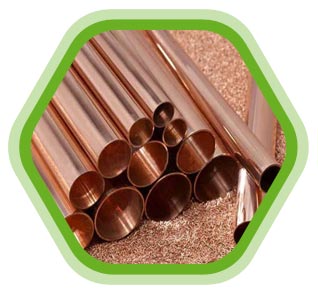

Cupro Nickel Alloy Hot Finished Pipe

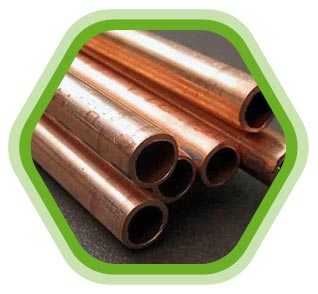

Copper Nickel Round Pipe

Cuni Alloy Square Pipe

Cupro Nickel Seamless Pipe Has Superior Strength and Machinability, View Price List of Cupronickel Welded Pipe

Copper Nickel Pipe Price List

Product	Price in USD	Price in UAE
Copper Nickel Pipe Size: 60 Mtr	USD $ 7.52	UAE 27.62
Copper Nickel Seamless Pipes Size: 3.00mm x6000mml	USD $ 9.93	UAE 36.47
CuNi Seamless Pipe Size: 1.2mm 1.25mm	USD $ 7.20	UAE 26.45

Cu Ni Alloy Annealed Pipe Are Commonly Used in Seawater Piping, Refer Sizes and Weight of Cuni Cold Drawn Pipe

Weight Chart of Cupro Nickel Metal Square Pipe

Nominal Copper Pipe Size	WT			O.D.		Weight	Weight
Nominal Copper Pipe Size	mm	in	Sched	in	mm	Lb/ft	kilogram/Meter
48″	9.525	0.0375	STD	48.000	1219	190.0738	284.112
1″	3.378	0.0133	40 STD	1.315	33	1.679	2.501
36″	6.350	0.0250		36.000	914	95.453	142.180
3″	5.486	0.0216	40 STD	3.500	89	7.576	11.284
30″	6.350	0.0250		30.0000	762	79.433	118.318
4″	6.020	0.0237		4.500	114	10.0790	16.073
20″	6.350	0.0250		20.0000	508	52.733	78.547
6″	4.775	0.0188		6.625	168	12.924	19.252
42″	7.925	0.0312		42.000	1067	138.911	206.914
8″	4.775	0.0188		8.625	219	16.940	25.233
18″	5.563	0.0219		18.000	457	41.588	61.948
10″	4.775	0.0188		10.0750	273	21.207	31.588
24″	6.350	0.0250		24.000	610	63.413	94.456
12″	4.775	0.0188		12.750	324	25.222	37.570
16”	4.775	0.0188		16.000	406	21.748	47.290
14″	4.775	0.0188		14.000	356	27.732	41.308

CuNi Seamless Pipes Dimensions

Outside diameter of pipe			14 bar		10 bar
			Wall thickness (WT)	Theoretical weight chart	Wall thickness (WT)	Theoretical weight chart
nominal		actual	actual		actual
inch	ND	mm	mm	Kg/m	mm	Kg/m
10	250	267	4	29.55	3	22.24
0.38	10	16	1	0.42	1	0.42
7	175	193.7	3.5	18.7	2.5	13.43
0.5	15	20	1	0.53	1	0.53
8	200	219.1	3.5	21.19	3	18.21
0.75	20	25	1.5	0.99	1.5	0.99
20	500	508	6.5	91.55	4.5	63.63
1	25	30	1.5	1.2	1.5	1.2
24	600	610	8	135.26	5	84.96
1.25	32	38	1.5	1.54	1.5	1.54
14	350	368	5.5	56	4	40.89
1.5	40	44.5	1.5	1.81	1.5	1.81
16	400	419.1	6	69.6	4	46.62
28	700	711	9	177.45	6	118.8
2	50	57	1.5	2.34	1.5	2.34
12	300	323.9	5	44.78	4	35.94
2.5	65	76.1	2	4.16	2	4.16
3	80	88.9	2.5	6.07	2	4.88
32	800	813	10	225.53	6	135.99
4	100	108	2.5	7.41	2.5	7.41
36	900	914	11	278.98	8	203.57
5	125	133	3	10.95	2.5	9.16
18	450	457.2	6	76.03	4	50.91
6	150	159	3	13.14	2.5	10.99

Cupro Nickel Alloy Cold Finished Pipe Chemical Composition

Grade	Pb	Cu	Ni	Mn	Zn	Fe
Cu-Ni 90-10	0.5 max	88.6 min	9-11 max	1.00 max	1.00 max	1.8 max
Cu Ni 70/30	0.5 max	65.0 min	29-33 max	1.00 max	1.00 max	0.4-1.0

ASTM B466 Rectangular Pipe Mechanical Properties

Grade	Melting Point	Density	Tensile Strength	Yield Strength	Elongation
CuNi 90/10 Pipe	1443 °C (2430 °F)	8.1 g/cm3	Psi 80,000, MPa 551	Psi 35,000, MPa 241	30 %
CuNi 70/30 Pipe	2260 °F	0.323 lb/in3 at 68 °F	50000 – Psi	20000 – Psi	30 %

Cuni Alloy Welded Pipe Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.
Copper Nickel 90/10	C70600	2.0872
Copper Nickel 70/30	C71500	2.0882

Manufacturer of Cunifer cold finished pipe according to ASTM B466 standard, Check Cupro nickel alloy hot finished pipe schedule chart

Schedule Chart of Copper Nickel Alloys Round Pipe

Nominal Pipe Size (inches)	Schedule 80	Schedule 40	Schedule 10
4″	8.2 mm	4.6 mm	4.5 mm
1/2″	2.6 mm	2.1 mm	2.0 mm
3″	7.1 mm	4.0 mm	4.0 mm
2″	5.0 mm	3.4 mm	3.2 mm
3/4″	3.0 mm	2.2 mm	2.2 mm
1-1/4″	4.0 mm	3.0 mm	2.7 mm
1″	3.6 mm	2.8 mm	2.5 mm
2-1/2″	6.4 mm	3.6 mm	3.8 mm
1-1/2″	4.6 mm	3.2 mm	2.9 mm

Ready stock of Copper Nickel round pipe in Plain and Beveled Ends, CuNi alloy square pipe has excellent resistance to atmospheric corrosion

Cunifer Hot Finished Pipe Applications

Power Plant Industry
Petrochemical Industry
Pulp & Paper Indusry
Chemical Industry
Food Processing Industry
Energy Industry
Pharmaceuticals Industry
Refining Industry
Aerospace Industry
Oil and Gas Industry

Verify the different countries we ship along with the period for shipping.

Destination Port	Delivery Timeline
Suez – Egypt	15-20 days
Ras Laffan – Qatar	10-15 days
Fujairah – UAE	7-10 days
Jebel Ali – UAE	7-10 days
Port Harcourt – Nigeria	25-30 days
Dammam – Saudi Arabia	10-15 days
Rotterdam – Netherlands	25-30 days
Singapore	7-10 days
Batam – Indonesia	10-15 days
Durban – South Africa	25-30 days
