Brass Inlays Strips

Manufacturer of Decorative Brass Trim Strips and Flooring Strips in India for Inlay

Brass Strip

Table of content

Brass Strip Specification
Types of Brass Strips
Brass Cold Rolled Thickness
Most Available Stocks of Brass Inlays Strips
Brass Inlay Strips Chemical Composition
Flat Brass Strips Mechanical Properties
Brass Inlay Strips Tolerance Chart
Heat Treatment of UNS C36000 Strip
Machinability of UNS C26000 Hot Rolled Strip
Hot Working of Thin Brass Strips
Most Important Documents to Import Brass Inlays Strips
Brass Inlay Strips Sizes
Applications Of Brass Inlays Strips

Buy 1mm, 2mm, 3mm, 5mm Drushed and Thin Brass Strips For Doors and Stairs

Brass Strip Specification

Brass Strip Manufacturer in India offering a Technical Specification in Detailed.

UNS C36000 Thin Strip Thickness	Brass Inlay Strips Width	Flat Brass Strips Diameter
0.04 – 2.5 mm	8.0 To 406.4 mm (16inch)	610 to +0/-5 mm
Brass Hot Rolled Strip Specifications	Thermal Property	Brass Inlay Strips Hot Working Processes
ASTM B36 ASME SB36	Thermal Conductivity : 116 W/m.K Thermal Expansion : 20.5×10-6 /°C	Hot Forging Hot Rolling
Thin Brass Strips Hardness	Brass Strip Types	Brass Cold Rolled Strips Finishes
Soft Half Hard Quarter Hard Hard Spring Hard	Brass Hot Rolled Strips Brass Strips Brass Cold Rolled Strips Flat Brass Strips Thin Brass Strips	Polished Finish Coated Finish Natural Finish Anodized Finish Brushed Finish
Solid Brass Inlay Strips GRADE	Flat Brass Strips Hardness Range	Antique Brass Inlay Strip Welding method
Brass Inlay Strips	60 to 220 VPN	MIG or TIG. MMA
UNS C2600 Flat Strip Cutting methods	Hot Rolled brass Strip Marking	Brass Inlay Strips Packaging
Plasma cutting Oxy-propane flame cutting Laser cutting Waterjet cutting	Material grade Manufacturer logo / name Sizes Manufacturing date Origin of material ASTM/ ASME standard	Wooden Pallets Bubble wraps Customized Pallets Steel Strips Bundled

Refer Polished and Solid brass Inlay strips Various Types and Tolerance

Types of Brass Strips

Check Brass Strip Manufacturer in India Delivering Various Types.

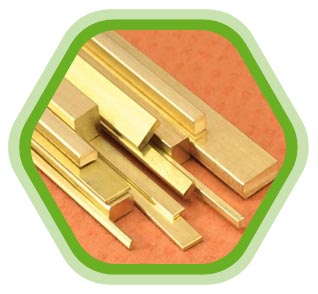

UNS C36000 Brass Strips for Inlay

Brass Inlay Strips

Flat Brass Strips

Thin Brass Strips

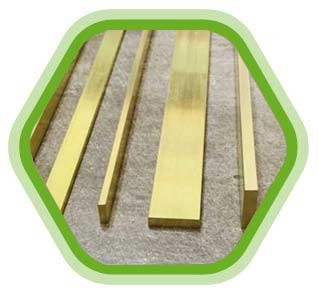

Brass Metal Strips

Brass Flooring Strips

Stockist and Manufacturer of Flat Brass Strips in Different Finishes and Thickness

Brass Cold Rolled Thickness

Thickness (mm)	Tolerance (mm)
0.10 – 0.20	+/- 0.010
0.04 – 0.05	+/- 0.003
0.21 – 0.30	+/- 0.015
0.06 – 0.10	+/- 0.005
0.51 – 0.80	+/- 0.020
0.31– 0.50	+/- 0.020
1.41 – 2.00	+/- 0.030
0.81 – 1.40	+/- 0.020
2.01 – 2.50	+/- 0.040

Most Available Stocks of Brass Inlays Strips

Brass Square Strips

Brass Rectangular Strips

Brass T- Section Strips

Brass L-angle Strips

Check Solid Brass Inlay Strips Contains Copper upto 66%

Brass Inlay Strips Chemical Composition

Brass Inlays Strips Manufacturer in India offering high-performance goods with exceptional Chemical analysis.

Chemical Element	%
Cu	62.00 – 64.00
Pb	0.0 – 0.10
Al	0.0 – 0.05
Ni	0.0 – 0.30
Fe	0.0 – 0.10
Zn	Balance
Others (total)	0.0 – 0.10
Sn	0.0 – 0.10

Flat Brass Strips Mechanical Properties

Property	Value
Density	8.44 kg/m3
Tensile Strength	300 – 550 MPa
Melting Point	916°C
Proof Stress	110 – 500 MPa
Hardness Vickers	55 – 180 HV
Elongation	38 – 3%

Brass Inlay Strips Tolerance Chart

Nominal thick		Greather than	–	2,5	10	15	5,0	7,5	25	50
Nominal thick		up to and including	2,5	5,0	15	25	7,5	10	50	–
thick tolerances for nominal widths	Up to & including 700	1	By agreement	± 0,25	± 0,75	± 0,95	± 0,35	± 0,45	± 1,30	± 1,50
	Up to & including 700	2	By agreement	± 0,30	± 0,95	± 1,20	± 0,45	± 0,60	± 1,60	± 1,90
	Greater than 700, up to and inc. 1000	1	By agreement	± 0,30	± 0,80	± 1,05	± 0,40	± 0,50	± 1,40	± 1,65
	Greater than 700, up to and inc. 1000	2	By agreement	± 0,35	± 1,00	± 1,30	± 0,50	± 0,65	± 1,75	± 2,05
	Greater than 1000, up to and inc. 1500	1	By agreement	± 0,35	± 0,90	± 1,30	± 0,45	± 0,55	± 1,50	± 1,80
	Greater than 1000, up to and inc. 1500	2	By agreement	± 0,45	± 1,10	± 1,60	± 0,55	± 0,75	± 1,90	± 2,20

Heat Treatment of UNS C36000 Strip

Quenching
Annealing
Stress Relief
Aging

Machinability of UNS C26000 Hot Rolled Strip

Machinability	80-100%

Hot Working of Thin Brass Strips

Machinability	600°C and 800°C (1112°F to 1472°F)

Most Important Documents to Import Brass Inlays Strips

Customs Declaration
Safety Data Sheet
Commercial Invoice
Bill of Lading (B/L)
Packing List
Certificate of Origin
Import License

Brass Inlay Strips Sizes

Find Brass Inlays Strips Manufacturer in India offering a wide range of sizes

Type	Inner Diameter	Thickness	Width
Brass Cold Rolled Strips	610 or 508 +0/-5 mm	0.3~3.0 mm	610~1524 mm
Brass Hot Rolled No.1 Strips	610 +0/-5 mm	2.5~10.0 mm	610~2000 mm

Applications Of Brass Inlays Strips

Brass Inlays Strips Manufacturer in India Supplying Strips To Various engineering applications.

Aerospace and Defense Industry
Medical Equipment Industry
Power Tools Industry
Automotive Industry
Battery Manufacturing Industry
Electronics Industry

View Delivery Timetable for countries where we export

Destination Port	Delivery Timeline
Suez – Egypt	15-20 days
Port Harcourt – Nigeria	25-30 days
Fujairah – UAE	7-10 days
Batam – Indonesia	10-15 days
Jebel Ali – UAE	7-10 days
Rotterdam – Netherlands	25-30 days
Ras Laffan – Qatar	10-15 days
Durban – South Africa	25-30 days
Dammam – Saudi Arabia	10-15 days
Singapore	7-10 days
