90/10 Copper Nickel Fittings

Cuni 90/10 Elbow Manufacturer in India

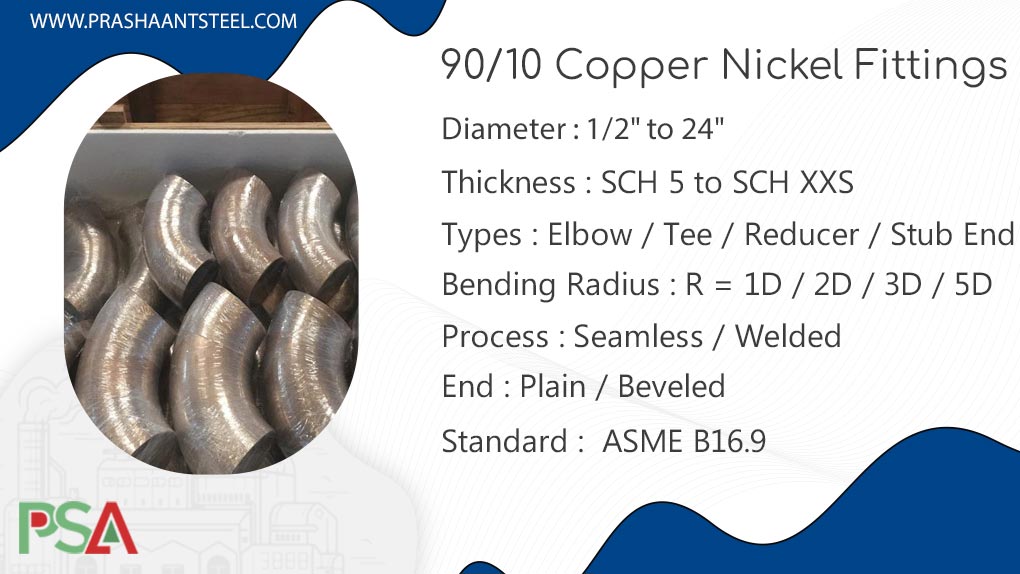

90/10 Copper Nickel Fittings

Prashaant Steel is a reputed and leading 90/10 Copper Nickel Fittings manufacturer in India and offers excellent and advanced engineered products for various industries. Located in Mumbai, India, Prashaant Steel and Alloys has been serving the steel and alloy market for more than twenty years, focusing on manufacturing Copper Nickel 90/10 pipe fittings, which is an ideal alloy material for the marine and chemical industries owing to design strengths such as high corrosion resistance, high strength, and high durability.

Copper Nickel 90/10 Welded Fitting generally contains 90 % of copper base and 10% of nickel, due to this combination it has a good combination of formability, anti-corrosive property and good mechanical strength. This makes the Cuni 90/10 elbow suitable for operation in severe corrosive atmospheres where pitting and stress corrosion resistance is expected for instance, in seawater and chemical processing industries. The company is supplying EEMUA 146 CuNi 90/10 Fittings in Spain, UAE, Malaysia and Algeria at best price.

For seawater cooling system, ballast tanks, firefighting systems, as well as heat exchangers, ASTM B466 UNS C70600 Tee are applied to produce improved performance and resistance to the destructive action of saltwater. Consumers use our products for their high strength at elevated temperatures and pressures, and their reliability avoid failure. Cupro nickel 90/10 pipe fittings are manufactured in size range of 1/2″ to 24″ in various types like tee, reducer, elbow and stub end in ASME B16.9 standard.

WNR 2.0872 Seamless fittings offer better performance in seawater and high-temperature areas that in turn give the consequential low maintenance cost and long life cycle. These Cuni 90/10 Reducer have a strong tendency to stay shiny and function effectively in conditions that may last for long periods. While copper-nickel system has good thermal conductivity thus making it suitable for many heat exchange products.

Table of content

90/10 Copper Nickel Fittings Specification

Copper Nickel 90/10 Elbow Sizes 90/10 Copper Nickel Tee Standards Cuni 90/10 Reducer Temperature
  • Seamless Fittings : 1/2″ – 24″
  • Welded Fittings:1/2″ to 48″
  • ASTM B466
  • ASME SB 466
  • 843 – 954°C
UNS C70600 Cap Coating Cu Ni 90 10 Stub End Schedule 90 10 Copper Nickel Pipe Fittings Types
  • Back painting
  • Hot-dip galvanizing elbow
  • Varnished
  • PE coating
  • Anti rust light oiling
  • FBE coated
  • XXH
  • SCH 160
  • SCH 60
  • STD
  • SCH 10
  • SCH 20
  • SCH 40
  • XH
  • SCH 80
  • Elbow
  • Tee
  • Reducer
  • Cap
  • Stub End
  • Pipe Bend
  • Cross
  • Buttweld Fittings
WNR 2.0872 Cross Bend Radius Cu-Ni 90/10 Buttweld Fittings Bending Method 90 10 Copper Nickel Welded Fitting Bend Angle
  • 8D
  • 4D
  • 6D
  • 5D
  • 3D
  • 10D
  • Roll Bending
  • Mandrel Bending
  • Hot Induction Bending
  • Rotary Draw Bending
  • Ram-Type Bending
  • 60°
  • 15°
  • 135°
  • 180°
  • 45°
  • 30°
  • 22.5
  • 90°
Copper Nickel Alloy 90/10 Pipe Fittings Packaging Cupro Nickel 90/10 Seamless Fitting Ends 90/10 Cupro Nickel Elbow Markings
  • Carton Box
  • Wooden Pallet
  • Wooden Cases
  • Custom
  • Compound Bevel
  • Plain Bevel
  • Bevelled
  • Grade
  • Size
  • Heat number
  • Manufacturers name
  • Dimensional standard – ASME B16.9
90 10 Cu Ni Tee Testing DIN 2.0872 Reducer American standard ASTM B466 90/10 Stub End Meet the requirements
  • Ultrasonic test
  • HIC tested
  • Positive Material Identification (PMI)
  • Hyrdrostatic test
  • MSS-SP-95
  • MSS-SP-43
  • ANSI/ ASME B16.25
  • ANSI/ ASME B16.28
  • ANSI / ASME B16.9
  • MSS-SP-83
  • MSS-SP 119
  • NACE TM-0284
  • IBR
  • Sour service
  • ISO 15156
  • MTC EN 10204 3.1/ 3.2 certificate
  • NACE MR0103
  • NORSOK
  • NACE MR0175

Refer latest price list of Copper Nickel 90/10 Welded Fitting, Refer weight chart of ASTM B466 UNS C70600 Tee

Price List of 90/10 Copper Nickel Fittings

Price list of copper nickel 90/10 pipe fittings Price in USD Price in UAE Dirham
90/10 COPPER NICKEL PIPE FITTINGS Size 219.1 X 4/108 X 3MM US $ 41.90 UAE 153.90
90/10 COPPER NICKEL TEE  Size: 133 X 88.9MM X 3.0/3.0MM US $ 24.47 UAE 89.88

Cupro nickel 90/10 Stub End are available in size range of 1/2 to 24 inch, UNS C70600 Buttweld Fittings are available in various types such as Cap, equal and reducing tee

Various types of Copper Nickel 90/10 Fittings

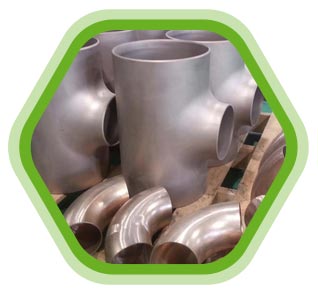

Copper Nickel 90/10 Welded Fitting

Copper Nickel 90/10 Welded Fitting

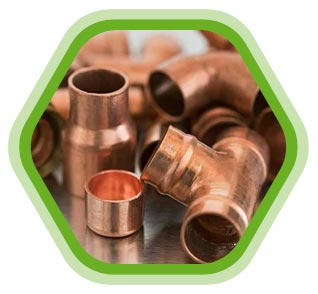

ASTM B466 UNS C70600 Tee

ASTM B466 UNS C70600 Tee

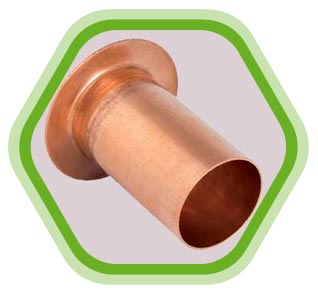

Cupro nickel 90/10 Stub End

Cupro nickel 90/10 Stub End

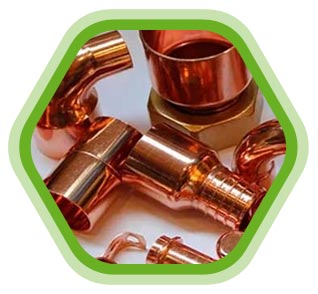

UNS C70600 Buttweld Fittings

UNS C70600 Buttweld Fittings

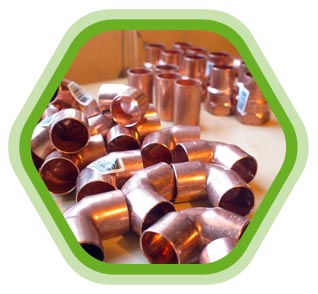

90/10 Copper Nickel Pipe Fittings

90/10 Copper Nickel Pipe Fittings

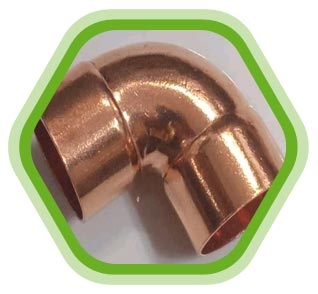

WNR 2.0872 Elbow

WNR 2.0872 Elbow

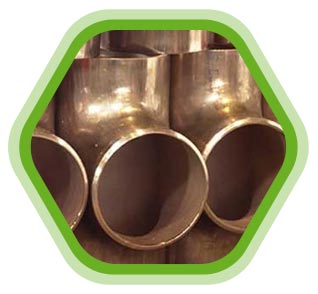

90 10 copper nickel Seamless Fitting

90 10 copper nickel Seamless Fitting

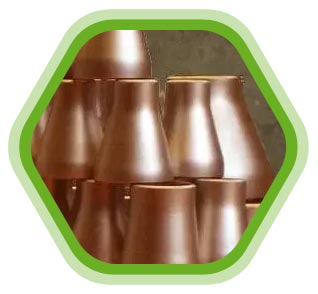

Cuni 90/10 Reducer

Cuni 90/10 Reducer

Copper Nickel Alloy 90/10 Seamless Fitting Chemical Composition

Grade Ni Zn Mn Pb Fe Cu
Cu-Ni 90-10 9-11 max 1 max 1.0 max .05 max 1.8 max 88.6 min
NDT and Ultrasonic test are performed on WNR 2.0872 Elbow, Melting point of 90/10 Copper Nickel Pipe Fittings is 1100-1145 °C

DIN 2.0872 Stub End Mechanical Properties

Properties Metric Imperial
Melting Point – Solidus 1099 C 2010 F
Melting Point – Liquidus 1149 C 2100 F
Density 8.94 g/cm3 0.323 lb/in3

90/10 Cupro Nickel Pipe Bend Equivalent Grades

STANDARD WNR. UNS
90/10 Copper Nickel 2.0872 C70600

UNS C70600 Welded Fitting Physical Properties

Properties Metric Imperial
Machinability 20% 20%
Tensile strength, yield 110-393 -MPa 16000-57000 -psi
Elongation at break 42.00% 42.00%
Tensile strength, ultimate 303-414 -MPa 43900-60000 -psi
Poisson’s ratio 0.34 0.34
Shear modulus 52.0 -GPa 7540 -ksi
Cuni 90/10 Reducer are available in concentric and eccentric types, 90 10 copper nickel Seamless Fitting are available in plain and beveled ends

90/10 Cupro Nickel Reducer Weight Chart

DN Schedule 80S Schedule 40S Schedule 10S
Con reducer Ecc reducer Reducing tee Con reducer Reducing tee Ecc reducer Con reducer Reducing tee Ecc reducer
50×40 0.59 1.43 0.59 1.15 0.45 0.45 0.76 0.31 0.31
40x.25 0.34 0.90 0.34 0.76 0.26 0.26 0.60 0.19 0.19
80x.50 1.79 3.91 1.79 2.91 1.00 1.00 1.56 0.55 0.55
50×25 0.54 1.37 0.54 1.10 0.40 0.40 0.73 0.28 0.28
150×80 5.51 11.57 5.51 9.68 3.95 3.95 6.86 1.82 1.82
100×50 1.95 6.55 1.95 4.48 1.50 1.50 2.94 0.78 0.78
150×100 5.96 11.97 5.96 11.94 4.07 4.07 7.10 1.96 1.96
100×80 2.33 6.79 2.33 4.64 1.74 1.74 3.04 0.87 0.87
200×150 10.12 25.31 10.12 18.82 6.74 6.74 14.08 3.19 3.19
200×100 9.23 24.18 9.23 17.98 6.55 6.55 13.46 3.01 3.01

Dimensions of UNS C70600 Reducer

Nominal
Pipe
Size		 Outside
Diameter		 Straight Tees Reducers Stub Ends Straight Crosses
inch inch mm Center to End
(inch)		 Length
(inch)		 Lap Diameter
(inch)		 Short Length
(inch)		 Long Length
(inch)		 Center to End
(inch)
8 8.625 219.1 7 4 10 5/8 4 8 7
1 1.315 33.4 1 1/2 1 1/2 2 2 4 1 1/2
2 2.375 60.3 2 1/2 1 1/2 3 5/8 2 1/2 6 2 1/2
1 1/4 1.660 42.2 1 7/8 1 1/2 2 1/2 2 4 1 7/8
3 3.500 88.9 3 3/8 2 5 2 1/2 6 3 3/8
1 1/2 1.900 48.3 2 1/4 1 1/2 2 7/8 2 4 2 1/4
4 4.500 114.3 4 1/8 2 1/2 6 3/16 3 6 4 1/8
2 1/2 2.875 73.0 3 1 1/2 4 1/8 2 1/2 6 3
5 5.563 141.3 4 7/8 3 7 5/16 3 8 4 7/8
3 1/2 4.000 101.6 3 3/4 2 1/2 5 1/2 3 6 3 3/4
10 10.750 273.1 8 1/2 5 12 3/4 5 10 8 1/2
6 6.625 168.3 5 5/8 3 1/2 8 1/2 3 1/2 8 5 5/8
12 12.750 323.9 10 6 15 6 10 10

Features of Cu Ni 90 10 Buttweld Fittings

  • Weldability
  • Non-Magnetic
  • Thermal Conductivity
  • Temperature Resistance
  • Corrosion Resistance
  • Low Friction
  • Resistance to Biofouling
  • Strength
  • Durability
