Monel Wire Manufacturer in India
View Nickel 400 Thin Wire sizes and dimensions
Table of content
- Monel Wire Specification
- Monel 400 Flat Wire Sizes
- DIN 2.4361 Coil Wire Dimensions
- Properties of UNS N04400 Bright Wire
- Applications of AMS 4730 Filler Wire
- Temperature Range of Alloy 400 Annealed Wire
- Monel Wire Price List
- ASTM B164 UNS N04400 Rope Wire Test Certificates
- Equivalent Grades of Alloy K500 Coil Wire
- Chemical Composition of UNS N04400 Thin Wire
- Monel 400 Bright Wire Mechanical Properties
- Nickel Alloy 400 Round Wire Manufacturing Methods
- Physical Properties of Nickel K500 Annealed Wire
Monel 400 wire are widely used in acidic and alkaline environments
| Nickel Alloy 400 Coil Wire Specifications | Monel Wire Grades | DIN 2.4361 Bright Wire Length |
|---|---|---|
|
|
|
| AMS 4730 Thin Wire Packages | Monel 400 Wire Forms | ASTM B164 Bright Wire Testing |
|
|
|
| ASTM B164 UNS N04400 Flat Wire Benefits | Monel K500 Wire Export to | Nickel 400 Filler Wire Crimp Style |
|
|
|
| Alloy K500 Round Wire Dimension | ASME SB164 Annealed Wire Value Added Services | DIN 2.4361 Woven Wire Documentation |
|
|
|
Types of Monel Wire
Monel 400 wire
Monel k500 wire

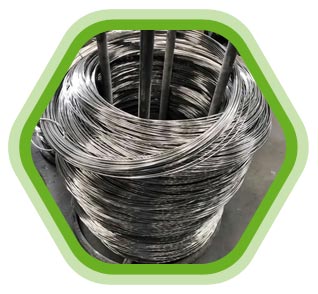

DIN 2.4361 Coil Wire
UNS N04400 Bright Wire

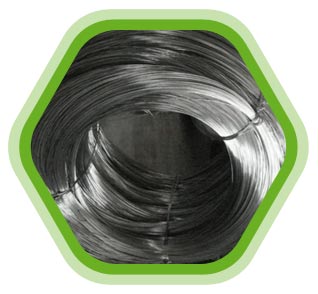

Nickel Alloy 400 round wire

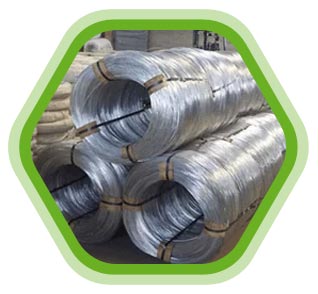

Alloy K500 annealed wire| Diameter (mm) | Diameter (inches) |
|---|---|
| 2.032 | 0.080 |
| 0.381 | 0.015 |
| 0.254 | 0.010 |
| 0.508 | 0.020 |
| 0.305 | 0.012 |
| 0.762 | 0.030 |
| 0.635 | 0.025 |
| 1.270 | 0.050 |
| 1.575 | 0.062 |
| 1.016 | 0.040 |
| 2.540 | 0.100 |
| 6.350 | 0.250 |
| 3.175 | 0.125 |
DIN 2.4361 Coil Wire Dimensions
| Size (AWG) | Thickness (inches) | Diameter (inches) | Weight (lbs/1000 ft) | Cross-Sectional Area (in²) |
|---|---|---|---|---|
| 34 | 0.250 | 0.250 | 31.085 | 0.0490874 |
| 26 | 0.062 | 0.062 | 1.890 | 0.0030192 |
| 10 | 0.010 | 0.010 | 0.049 | 0.0000785 |
| 30 | 0.100 | 0.100 | 4.942 | 0.0078539 |
| 12 | 0.012 | 0.012 | 0.070 | 0.0001134 |
| 32 | 0.125 | 0.125 | 7.677 | 0.0122719 |
| 14 | 0.015 | 0.015 | 0.111 | 0.0001767 |
| 28 | 0.080 | 0.080 | 3.139 | 0.0050265 |
| 16 | 0.020 | 0.020 | 0.197 | 0.0003142 |
| 24 | 0.050 | 0.050 | 1.227 | 0.0019635 |
| 18 | 0.025 | 0.025 | 0.311 | 0.0004909 |
| 22 | 0.040 | 0.040 | 0.790 | 0.0012566 |
| 20 | 0.030 | 0.030 | 0.440 | 0.0007069 |
Properties of UNS N04400 Bright Wire
- Good Resistance against corrosive conditions.
- Cleanability and reusability.
- Can withstand high temperatures up to 1300 F.
- Preventive against acidic and alkali media
- Good weldability.
Applications of AMS 4730 Filler Wire
- Solvent industries
- Acidic and alkaline environments
- Distillation of petroleum crude
- Industrial heat exchangers
- Chemical industries
- Deaerating heaters
- Marine Applications
- Aerospace engineering
- Hydrocarbon processing equipment
Annealing of Monel K500 wire is conducted in the temperature range from 850 to 1,000 °C
Temperature Range of Alloy 400 Annealed Wire
| Temperature Range | 850 to 1,000 °C |
|---|
| Price list of Monel Wires | Price in USD | Price in UAE Dirham |
|---|---|---|
| MONEL WIRE 326FT PER ROLL | US $ 34.46 | UAE 126.57 |
| MONEL 400 WIRE | US $ 25.78 | UAE 94.69 |
| MONEL FILLER Wire Size: 60.093 X 36 | US $ 27.20 | UAE 99.91 |
Get MTC test reports with ASTM B164 UNS N04400 Bright Wire as per EN 10204 3.1
ASTM B164 UNS N04400 Rope Wire Test Certificates
- MTC EN 10204 3.1/3.2
- Raw Materials Certificate
- Fumigation Certificates
- Surface roughness measurement
- HS Code
- Moisture testing report
- DFARS compliant
- Form A for GSP
- Heat Treatment Charts
- Lab. Test Report from Govt. Approved Lab
- Commercial Invoice
- Third Party Inspection Report
Equivalent Grades of Alloy K500 Coil Wire
| STANDARD | UNS | WNR. | BS | JIS | GOST | EN | AFNOR |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NA 13 | NW 4400 | МНЖМц 28-2,5-1,5 | NiCu30Fe | NU-30M |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Chemical Composition of UNS N04400 Thin Wire
| Trade Name | ASTM/AISI Alloy type | Chemical composition(%) | ||||||
|---|---|---|---|---|---|---|---|---|
| Cu | Ni | Ti | Al | Mn | Fe | Si | ||
| Monel 405 | B 164 | 28-34 | 63 min | 2.0 max | 2.5 max | 0.5 max | ||
| Monel 404 | 28-34 | 63 min | 2.0 max | 2.5 max | ||||
| Monel 401 | 28-34 | 63 min | 2.0 max | 2.5 max | ||||
| Monel 400 | B 127, B 164 | 28-34 | 63 min | 2.0 max | 2.5 max | |||
| Monel K-500 | B 865 | 27-33 | 63 min | 0.35-0.85 | 2.3-3.15 | 1.5 max | 2.0 max | |
Monel 400 Bright Wire Mechanical Properties
| Element | Melting Point | Density | Yield Strength | Elongation | Tensile Strength |
|---|---|---|---|---|---|
| Monel K500 | 1350 °C (2460 °F) | 8.44 g/cm3 | Psi 115000 , MPa 790 | 20 % | Psi 160000 , MPa 1100 |
| Monel 400 | 1350 °C (2460 °F) | 8.8 g/cm3 | Psi 35,000 , MPa 240 | 40 % | Psi 80,000 , MPa 550 |
Alloy K500 annealed wire manufactured by using cold working method
Nickel Alloy 400 Round Wire Manufacturing Methods
- Cold Forged
- Cold Drawn
- Hot Forged
- Heat Treatment
- Cold Working
- Extrusion
- Finishing Processes
Physical Properties of Nickel K500 Annealed Wire
| Thermal Conductivity | 22.0 W/m-°K (20°C) |
| Electrical Resistivity | 0.511 Microhm-cm at 21°C |
| Modulus of Elasticity | 182 GPa (20°C) |
| Specific Heat | 427 J/kg-°K (20°C) |
View the projected delivery time for each Country
| Destination Port | Typical Delivery Timeline |
|---|---|
| Hamburg – Germany | 25-30 days |
| Antwerp – Belgium | 25-30 days |
| San Francisco – USA | 30-35 days |
| Busan – South Korea | 25-30 days |
| Tokyo – Japan | 30-35 days |
| Jebel Ali – UAE | 7-10 days |
| Rotterdam – Netherlands | 25-30 days |
| Sydney – Australia | 25-30 days |
| Durban – South Africa | 25-30 days |
