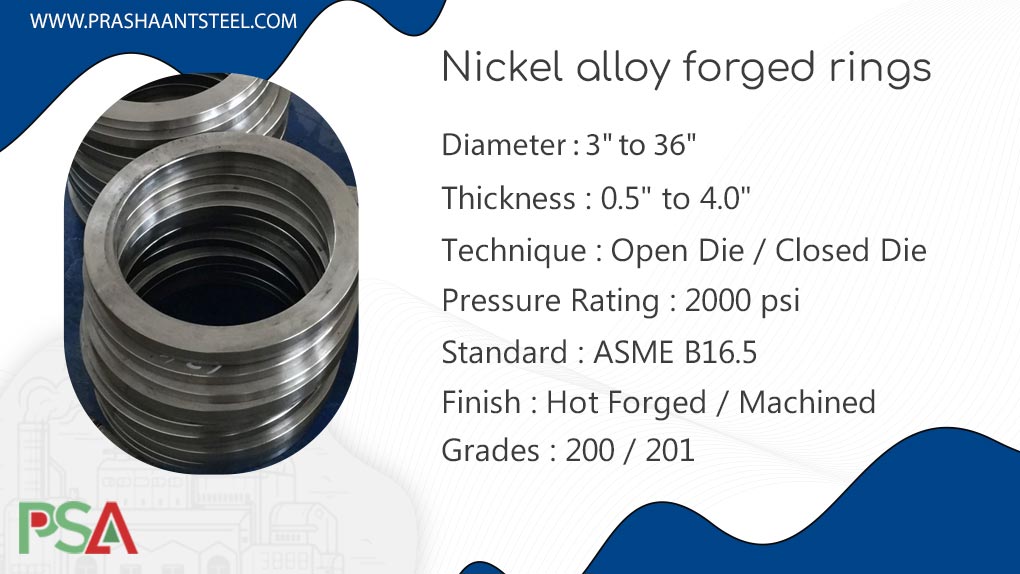

Nickel alloy forged rings
Nickel 200 Seamless Rolled Rings Manufacturer in India
Table of content
Nickel cold rolled steel rings available in size range of 3.50 to 18 inches
Nickel Alloy Forged Rings Specification
| Nickel Alloy Rolled Steel Rings Length | UNS N02201 Ring Rolling Thickness | Nickel Alloy 201 Rolled Ring Forging Size |
|---|---|---|
|
|
|
| Nickel Alloy 200 Forging Process | UNS N02200 Forged Steel Rings Benefits | Ni Alloy 201 Cold Rolled Rings Quality and Caertificates |
|
|
|
| Nickel 200 Double Rolling Ring Heat Treatment | DIN 2.4066 Rolled Rings Packing | Nickel Alloy Forged Rings Types |
|
|
|
| Export to DIN 2.4068 Cold Rolled Rings | UNS N02200 Seamless Rolled Rings Machining | Ni 201 Double Rolling Ring Specifications |
|
|
|
| Nickel Rolled Rings Material | Ni Alloy 200 Forged Steel Rings Standards | DIN 2.4066 Ring Rolling Width |
|
|
|
Manufacturing standards of Ni rolled rings
- NACE MR0175
- ISO 15156
- ASME B16.47
- ASME B16.48
- ASME B16.5
- ASTM B247-15
- BS 3293:1960
- Pressure Equipment Directive
Refer chemical and mechanical properties of DIN 2.4066 forged steel rings
Nickel cold rolled steel rings chemical composition
| Grade | Ni | C | Si | Mn | Cu | S | Fe |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 99.0 min | 0.15 max | 0.35 max | 0.35 max | 0.25 max | 0.01 max | 0.40 max |
| Nickel 201 | 99.0 min | 0.02 max | 0.35 max | 0.35 max | 0.25 max | 0.01 max | 0.40 max |
Ni rolled ring mechanical properties
| Element | Tensile Strength | Density | Yield Strength (0.2%Offset) | Melting Point | Elongation |
| Nickel 200 / 201 | Psi – 67000 , MPa – 462 | 8.9 g/cm3 | Psi – 21500 , MPa – 148 | 1446 °C (2635 °F) | 45 % |
Nickel Alloy forged steel rings equivalent grade
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | BS | GOST | JIS | EN |
| Nickel 200 | N02200 | 2.4066 | N-100M | NA 11 | НП-2 | NW 2200 | Ni 99.2 |
| Nickel 201 | N02201 | 2.4068 | – | NA 12 | НП-2 | NW 2201 | LC-Ni 99 |
Nickel 201 ring rolling has good ductility and low work hardening rate
Forged Nickel Alloy Advantages
- Flexibility
- Accuracy Designing
- Superior Strength
- High Ductility
- Seamless manufacturing
- High elasticity
- Can be used in extreme circumstances
UNS N02200 rolled ring forging widely used in Oil and Gas and Aerospace industry
Nickel 201 ring rolling appplications
- Automotive
- Aviation
- Large equipment
- Oil and Gas
- Power industry
- Petroleum industry
- Aerospace
- Pinion wheels
Check for the various countries we Export to and its Delivery time
| Destination Port | Delivery Timeline |
|---|---|
| Los Angeles – USA | 30-35 days |
| Rotterdam – Netherlands | 25-30 days |
| Sydney – Australia | 25-30 days |
| Hamburg – Germany | 25-30 days |
| Jebel Ali – UAE | 7-10 days |
| Antwerp – Belgium | 25-30 days |
| Busan – South Korea | 25-30 days |
| Durban – South Africa | 25-30 days |
| Tokyo – Japan | 30-35 days |
| Marseilles – France | 25-30 days |
| Mombasa – Kenya | 20-25 days |
| Piraeus – Greece | 25-30 days |
| Valencia – Spain | 25-30 days |
