316 stainless steel cotter pins are fasteners which can used to hold two or more components securely in different mechanical applications. SS 316 Cotter pins in the most general sense are split pins or safety pins which are passed through holes in a shaft or some other part and bent to lock them in position. Cotter pins made from 316 stainless steel serve several unique functions, most importantly in situations where corrosion is a massive issue. Prashaant Steel and Alloys is reliable supplier of 316 SS cotter pin as per DIN 94 standard. The company conduct wide range of testing procedure to ensure quality of this product.
AISI 316 Large Cotter Pin are usually a wire or rod piece of metal, which may be bent half lengthwise into two forked legs. As for when this is put through a hole in a fastener or shaft the legs of the pin are curved over to ensure it does not come off easily. Prashaant Steel offers AISI 316 split locking pins which are tailored to meet various industrial needs. PSA is already supplying Alloy 316 cotter pins in UAE, Italy, Kenya and Indonesia.
Standard Cotter Pins: These are the most usual varieties with rounded head/and or divided legs.
Tapered Cotter Pins: All of them are a little more conically shaped than round ones, which provides better fixation of parts in some cases.
Enhanced Corrosion Resistance: The enhanced capability of 316 stainless steel against chloride environment, acids and alkaline substances tends to provide longer lasting of cotter pins used in such conditions.
Strength and Durability: The SS 316 Split Pins is capable of withstanding the mechanical loads that tend to be applied to these pins all along without seemingly cracking or deforming in the process.
Non-Toxic and Safe: These are non-galvanic, which makes it ideal for use in the industries of food processing and manufacturing of foods and beverages, and in pharmaceutical industries.
The SS 316 cotter pin is then hammered to fit into a small slot around this shaft or bolt. The legs are then arranged in a way that folds over the shaft to hold this pin which prevents the components from coming off again.
Table of content
- 316 Stainless Steel Cotter Pins Specification
- Types of 316 SS Cotter Pins
- AISI 316 Split Pin Chemical Composition
- SS 316 Self Locking Cotter Pin Mechanical Properties
- SUS 316 Heavy Duty Cotter Pins Equivalent Grades
- Stainless Steel 316 Cotter Pins Dimensions
- Testing inspection of UNS S31600 Large Cotter Pin
- Benefits of WNR 1.4401 Metric Cotter Pins
Check sizes of SS 316 self locking cotter pin
316 Stainless Steel Cotter Pins Specification
| AISI 316 Split Pin Sizes | UNS S31600 Metric Cotter Pins Width | WNR 1.4401 Large Cotter Pin Length |
|---|---|---|
|
|
|
| SUS 316 Heavy Duty Cotter Pins Material | SS 316 316 Cotter Pins Shape | 316 Stainless Steel Split Pin Standard |
|
|
|
| AISI 316 Heavy Duty Cotter Pins Specifications | Stainless Steel 316 Large Cotter Pin Grade | SUS 316 Split Pin Packaging |
|
|
|
| 316 Stainless Steel Cotter Pins Types | Stainless Steel 316 Cotter Pin Head Type | 316 SS Metric Cotter Pins Benefits |
|
|
|
| UNS S31600 Heavy Duty Cotter Pins Finishes | WNR 1.4401 Large Cotter Pin Temperature Range | |
|
|

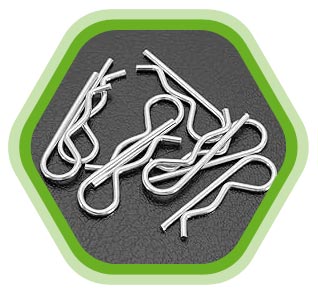

Stainless Steel 316 Cotter Pin

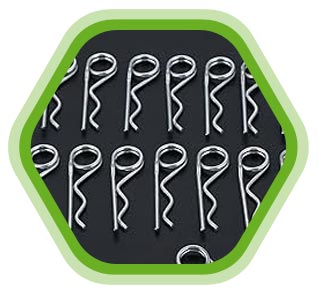

SS 316 Split Pins

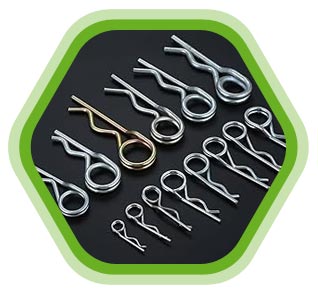

WERKSTOFF NR 1.4401 Locking Cotter Pin

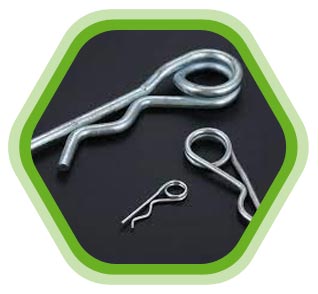

316 Stainless Steel Small Cotter Pins

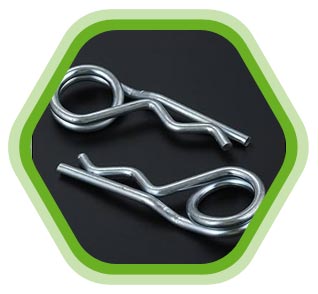

AISI 316 Large Cotter Pin
WNR 1.4401 Metric Cotter Pins

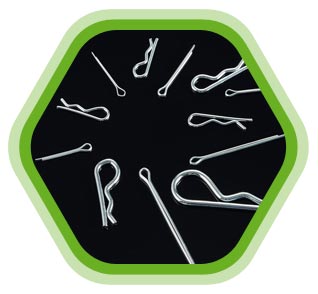

UNS S31600 Heavy Duty Cotter Pins

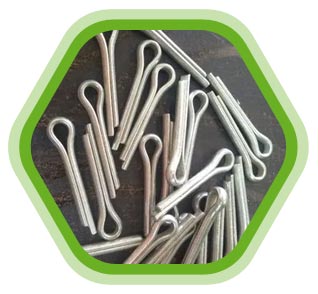

SUS 316 Long Cotter Pins

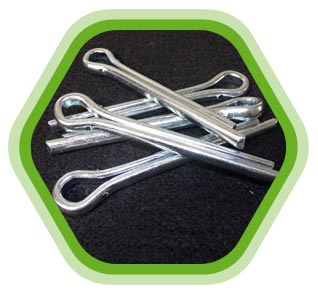

316 SS Self Locking Cotter Pin
UNS S31600 large cotter pin contains 2 to 3% molybdenum
AISI 316 Split Pin Chemical Composition
| Grade | Si | C | Mo | N | Ni | Mn | Cr | P | S |
|---|---|---|---|---|---|---|---|---|---|
| 316 (S31600) |
0.75 max |
0.08 max |
min: 2.0 max: 3.0 |
0.10 max |
min: 10.0 max: 14.0 |
2.0 max |
min: 16.0 max: 18.0 |
0.045 max |
0.03 max |
WNR 1.4401 metric cotter pins has yield strength of 290 MPa
SS 316 Self Locking Cotter Pin Mechanical Properties
| Melting Point | Density | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 1400 °C to (2550 °F) | 8.0 g/cm3 | Psi 75000 , MPa 290 | Psi 30000 , MPa 205 | 35 % |
SUS 316 Heavy Duty Cotter Pins Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | BS | EN | JIS | GOST | AFNOR |
|---|---|---|---|---|---|---|---|
| SS 316 | 1.4401 | S31600 | 316S31 / 316S33 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | SUS 316 | – | Z7CND17‐11‐02 |
Stainless Steel 316 Cotter Pins Dimensions
| Nominal SizeTM | 20 | 4 | 16 | 5 | 13 | 6.3 | 10 | 8 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| b | – | 40 | 8 | 32 | 10 | 26 | 12.6 | 20 | 16 | ||
| d | Max. | 19.3 | 3.7 | 15.4 | 4.6 | 12.4 | 5.9 | 9.5 | 7.5 | ||
| Min. | 19.0 | 3.5 | 16.1 | 4.4 | 12.1 | 5.7 | 9.3 | 7.3 | |||
| c | Max. | 38.5 | 7.4 | 30.8 | 9.2 | 24.8 | 11.8 | 19.0 | 15.0 | ||
| Min. | 33.8 | 6.5 | 27.0 | 8.0 | 21.7 | 10.3 | 16.6 | 13.1 | |||
| a | Max. | 6.30 | 4 | 6.30 | 4 | 6.30 | 4 | 6.30 | 4 | ||
| Min. | 3.15 | 2 | 3.15 | 2 | 3.15 | 2 | 3.15 | 2 | |||
| corresponding diameters | Clevis Pins | Over | 180 | 12 | 110 | 17 | 69 | 23 | 44 | 29 | |
| To | – | 17 | 180 | 23 | 110 | 29 | 69 | 44 | |||
| bolts | Over | 170 | 14 | 120 | 20 | 80 | 27 | 56 | 39 | ||
| To | – | 20 | 170 | 27 | 120 | 39 | 80 | 56 | |||
