Carbon steel solar cable clips
Manufacturer of CS Solar Wire Clips in India
Table of content
- Carbon Steel Solar Cable Clips Specification
- Different Types of CS Solar Cable Clips
- Black Carbon Steel Size Chart
- Benefits of Fully killed CS Solar Panel Cable Clips
- Temperature range of CS Solar Structure Cable Clips
- Low Carbon Steel Solar Wire Clips Mechanical Properties
- CS Solar Cable Power Clips Chemical Composition
- Technical Parameters of Carbon Steel Solar Cable Routing Clips
CS solar panel wire clips have thickness range of 1 – 3 mm
Carbon Steel Solar Cable Clips Specification
| CS Solar Wire Clips Thickness | Carbon Steel Solar Wire Clips Lengths | Low carbon steel Solar Wire Clips Material |
|---|---|---|
|
|
|
| Black Carbon Steel Solar Structure Cable Clips Characteristics | CS Power Cable Clips Surface Treatments | Carbon Steel Solar Cable Clips Types |
|
|
|
| CS Solar Wire Clips Product Type | Black CS Solar Panel Cable Clips Material | Low Carbon Steel Solar Cable Clips Advantages |
|
|
|
| CS Solar Structure Cable Clips Applications | Export to Fully killed CS Solar Cable Clips | Black Carbon Steel Wire Clips Manufacturing Techniques |
|
|
|
Different Types of CS Solar Cable Clips
CS Solar Cable Clips
Solar Panel Cable Clips
Carbon Steel Solar Panel Wire Clips
Black Carbon Steel Solar Wire Clips
Low Carbon Steel Solar Power Cable Clips

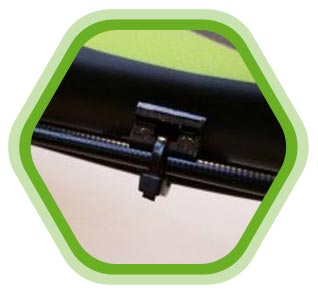

Fully killed CS Solar Structure Cable Clips| Cable Diameter (mm) | Mounting Hole Diameter (mm) | Length (mm) | Thickness (mm) | Width (mm) |
|---|---|---|---|---|
| 10 – 14 | 7 | 70 | 1.5 | 30 |
| 4 – 6 | 5 | 50 | 1.2 | 20 |
| 14 – 18 | 8 | 80 | 2.0 | 35 |
| 6 – 10 | 6 | 60 | 1.5 | 25 |
Black Carbon Steel solar cable routing clips are durable and easy to install
Benefits of Fully killed CS Solar Panel Cable Clips
- Durability
- Cost-Effectiveness
- Availability
- Coating Options
- Strength
- Good Mechanical Properties
- Ease of Fabrication
Low carbon steel solar structure cable clips are necessary tool to install solar panels
Temperature range of CS Solar Structure Cable Clips
| Temperature range | − 29°C and approximately 400°C |
Fully killed CS solar panel cable clips has high tensile strength and impact resistance
Low Carbon Steel Solar Wire Clips Mechanical Properties
| Yield | 36 ksi, min |
| Tensile | 70 ksi, min |
| Hardness | 187 HBW max |
| Elongation | 30% |
CS Solar Cable Power Clips Chemical Composition
| Element | Composition %, Note C |
|---|---|
| Molybdenum | .12 max, note A,B |
| Sulfur | .040 max |
| Carbon | .35 max |
| Silicon | .10-35 |
| Manganese | .60-1.05 |
| Copper | .40 max, note A |
| Phosphorus | .035 max |
| Chromium | .30 max, note A,B |
| Nickel | .40 max, note A |
| Vanadium | .08 max, note A |
Technical Parameters of Carbon Steel Solar Cable Routing Clips
| Technical Parameters: | |
| Installation Site: | Roof solar panel mounting |
| PV Modules: | Framed/ Frameless |
| Color: | polishing |
| Profile Material: | SUS 304 Stainless Steel |
| Snow Load: | 1.4 KN/M2 |
| Wind Load: | 60 m / s |
| Module Orientation: | Horizontal / Vertical |
| Standards: | AS/NZS 1170 |
| California Building Code CBC 2010 | |
| GB50009-2012 | |
| DIN 1055 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| IBC2009 | |
List different Nations and its Delivery Time
| Destination Port | Typical Delivery Timeline |
|---|---|
| Hamburg – Germany | 25-30 days |
| Piraeus – Greece | 25-30 days |
| Sydney – Australia | 25-30 days |
| Los Angeles – USA | 30-35 days |
| Mombasa – Kenya | 20-25 days |
| Rotterdam – Netherlands | 25-30 days |
| Antwerp – Belgium | 25-30 days |
| Durban – South Africa | 25-30 days |
| Busan – South Korea | 25-30 days |
| Valencia – Spain | 25-30 days |
| Jebel Ali – UAE | 7-10 days |
| Marseilles – France | 25-30 days |
| Tokyo – Japan | 30-35 days |
