Stainless Steel Bleed Ring
AISI 304 Bleed Ring Flange Manufacturer in India
Table of content
- Stainless Steel Bleed Ring Specification
- Types of SS Bleed Rings
- SS Drip Ring Chemical Composition
- Stainless Steel Bleed Ring Flange Mechanical Properties
- SS Ring Rolling Equivalent Grade
- AISI 304 Flange Bleed Ring Operating Pressure
- Stainless Steel 316 Drip Ring Dimensions
- 304 Stainless Steel Bleed Flange Applications
- 304 Stainless Steel Bleed Flange Applications
View stainless steel bleed ring weight chart and thickness chart
Stainless Steel Bleed Ring Specification
| Stainless Steel Bleed Ring Size Range | AISI 304 Bleed Flange Ratings | SS 316 Flange Bleed Ring Sealing Finish |
|---|---|---|
|
|
|
| 304 SS Flange Bleed Ring Face Type | SUS 316 Bleed Rings For Flanges Ports | Stainless Steel 304 Drip Ring Materials |
|
|
|
| AISI 316 Bleed Rings For Flanges Also called | SS Bleed Rings Types | 316 Stainless Steel Bleed Ring Flange Packaging |
|
|
|
| SUS 304 Drip Ring Standards | 316 SS Flange Bleed Ring Advantages | SS Bleed Flange Ring Origin |
|
|
|
| 304 Stailess Steel Bleed Rings For Flanges Test Certificates | SS 304 Flange Bleed Ring Coatings | SUS 316 Flange Bleed Ring Equipment |
|
|
|
Stainless steel 316 bleed flange comes in Socket Weld and Threaded connection types

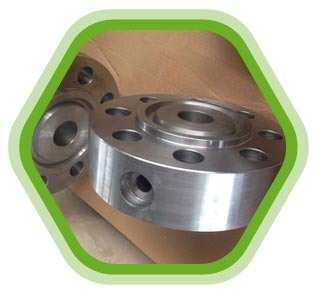

AISI 304 Bleed Rings For Flanges

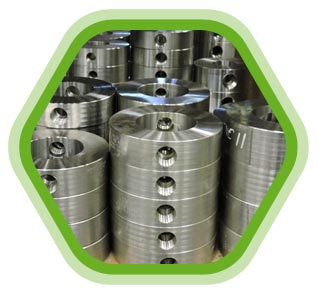

Stainless Steel Flange Bleed Ring

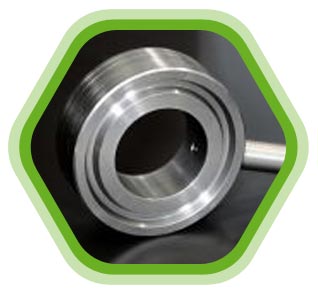

Stainless steel 316 Drip Ring

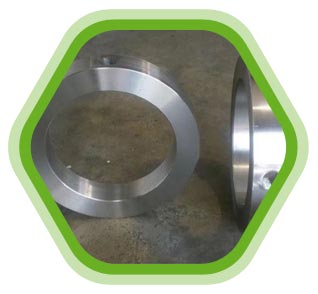

304 SS Bleed Ring Flange
SS Bleed FlangeSS Drip Ring Chemical Composition
| Grade | Titanium | Carbon | Manganese | Phosphorus | Chromium | Molybdenum | Silicon | Sulfur | Niobium | Nickel |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | 0.08 | 2 | 0.045 | 16.0-18.0 | 2.00-3.00 | 1 | 0.03 | 10.0-14.0 | ||
| 304 | 0.08 | 2 | 0.045 | 18.0-20.0 | 1 | 0.03 | 8.0-11.0 |
Stainless Steel Bleed Ring Flange Mechanical Properties
| Grade | Tensile Strength ksi (min) | Yield Strength ksi (min) | Elongation % | Hardness MAX (Brinell) | Hardness MAX (Rockwell B) |
|---|---|---|---|---|---|
| 304 | 70 | 25 | 40 | 201 | 92 |
| 316 | 75 | 30 | 40 | 217 | 95 |
SS Ring Rolling Equivalent Grade
| STANDARD | Germany | North America | Europe | France | British Standard | Russia | Japan |
|---|---|---|---|---|---|---|---|
| WERKSTOFF NR. | UNS | EN | AFNOR | BS | GOST | JIS | |
| 316 | 1.4401 / 1.4436 | S31600 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | Z7CND17‐11‐02 | 316S31 / 316S33 | SUS 316 | |
| 304 | 1.4301 | S30400 | X5CrNi18-10 | Z7CN18‐09 | 304S31 | 08Х18Н10 | SUS 304 |
SS drip ring allows access to the fluid flow
AISI 304 Flange Bleed Ring Operating Pressure
| Operating Pressures and Temperatures | |||
|---|---|---|---|
| Type | Size | psi Temp WOG | psi Temp Steam |
| BLEED600SS | 1” to 24” | 1440 100 °F | 600 489 °F |
| BLEED150 | 1” to 24” | 285 100 °F | 150 366 °F |
| BLEED600 | 1” to 24” | 1480 100 °F | 600 489 °F |
| BLEED150SS | 1” to 24” | 275 100 °F | 150 366 °F |
| BLEED300SS | 1” to 24” | 720 100 °F | 300 422 °F |
| BLEED300 | 1” to 24” | 740 100 °F | 300 422 °F |
Stainless steel 304 Bleed Ring are available in pressure rating of 150# to 2500#
Stainless Steel 316 Drip Ring Dimensions
| Dimensions (Inches) | |||||
|---|---|---|---|---|---|
| Size | B | “A” Dimension | |||
| Inches | Prefix | Class 600 | Class 300 | Class 150 | |
| 10 | 1000 | 10 3/4 | 15 5/8 | 14 1/8 | 13 1/4 |
| 24 | 2400 | 24 | 30 7/8 | 30 3/8 | 28 1/8 |
| 1 | 0100 | 1 5/16 | 2 3/4 | 2 3/4 | 2 1/2 |
| 14 | 1400 | 14 | 19 1/8 | 19 | 17 5/8 |
| 2 | 0200 | 2 3/8 | 4 1/4 | 4 1/4 | 4 |
| 12 | 1200 | 12 3/4 | 17 3/4 | 16 1/2 | 16 |
| 3 | 0300 | 3 1/2 | 5 3/4 | 5 3/4 | 5 1/4 |
| 18 | 1800 | 18 | 23 7/8 | 23 3/8 | 21 1/2 |
| 4 | 0400 | 4 1/2 | 7 1/2 | 7 | 6 3/4 |
| 20 | 2000 | 20 | 26 5/8 | 25 5/8 | 23 3/4 |
| 6 | 0600 | 6 5/8 | 10 3/8 | 9 3/4 | 8 5/8 |
| 16 | 1600 | 16 | 22 | 21 1/8 | 20 1/8 |
| 8 | 0800 | 8 5/8 | 12 1/2 | 12 | 10 7/8 |
Surface Finish of SS 304 Bleed Ring Flange
- Passivated Finish
- Polished Finish
- Mill Finish
- Electropolished Finish
- Brushed Finish
304 Stainless Steel Bleed Flange Applications
- Food and Beverage Industry
- Industrial Machinery
- Aerospace
- Automotive Fuel Systems
- Marine Applications
- Water Treatment
