Stainless Steel Refractory Anchors
Manufacturer of SS Refractory Anchor Brick in India
Prashaant Steel & Alloys is a reputable manufacturing company that offers a whole spectrum of industrial products at competitive prices. According to the needs of various sectors, We offer Stainless Steel Refractory Anchors in a variety of grades, sizes, and specifications. We have a renowned manufacturing workforce and cutting-edge contemporary manufacturing equipment. We guarantee that all customer needs will be met in the shortest amount of time possible, and all information on required legal documents will also be delivered.
Table of content
- Stainless Steel Refractory Anchors specification
- Types of SS Refractory Anchor
- Stainless Steel Castable anchor size chart
- Testing of SS Refractory Anchors
- SS UV Anchors chemical composition
- Stainless Steel Refractory fixing mechanical properties
- SS brick anchors equivalent grade
- Features of SS castable anchor
- Stainless Steel y anchor refractory Application
View sizes and specification of Stainless steel castable refractory anchor
Stainless Steel Refractory Anchors specification
| Diameter | Type | Length |
|---|---|---|
| 6 mm to 20 mm |
|
Upto 120MM |
| Surface Finish | Tolerances | Material Origin |
|
|
|
| Temperature Rating | Standards | Thickness |
| Up to 1600°C | ASTM / ISO / EN | 2.3 mm to 2.5 mm |
| Installation Method | Available grades | |
|
|

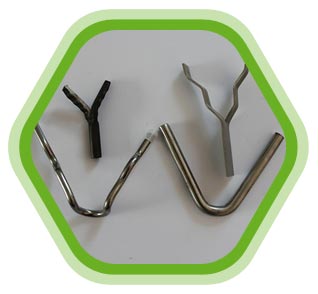

SS refractory anchors

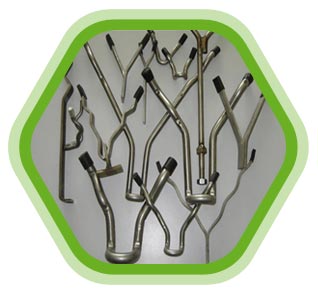

Stainless steel Refractory Anchor Brick
SS castable refractory anchor
SS refractory brick anchors

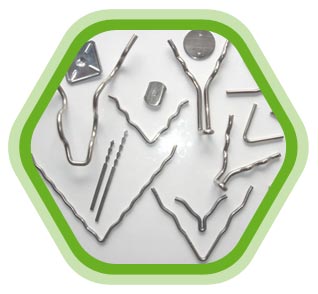

SS UV Type Refractory Anchors
Stainless steel Castable Anchors
Stainless Steel Castable anchor size chart
| Anchor Type | Diameter (mm) | Length (mm) | Weight (kg) | Recommended Spacing (mm) |
|---|---|---|---|---|
| L-shaped | 6 – 12 | 150 – 300 | 0.1 – 0.5 | 300 – 500 |
| U-shaped | 10 – 14 | 150 – 300 | 0.1 – 0.6 | 300 – 500 |
| V-shaped | 8 – 12 | 150 – 300 | 0.1 – 0.5 | 300 – 500 |
Ultrasonic and hammer test are performed on SS Refractory fixing
Testing of SS Refractory Anchors
- Tensile Strength Test
- Fatigue Test
- Corrosion Resistance Test
- Heat Resistance Test
- Bending Test
- Ultrasonic Test
- Dimensional Inspection
- Impact Test
- Hammer test
SS UV Anchors chemical composition
| Grade | Carbon | Titanium | Manganese | Nickel | Phosphorus | Sulfur | Chromium | Silicon | Molybdenum | Niobium |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 | 2 | 8.0-11.0 | 0.045 | 0.03 | 18.0-20.0 | 1 | |||
| 316 | 0.08 | 2 | 10.0-14.0 | 0.045 | 0.03 | 16.0-18.0 | 1 | 2.00-3.00 |
Stainless steel UV Type Refractory Anchors are used in high-temperature applications
Stainless Steel Refractory fixing mechanical properties
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Hardness MAX (Rockwell B) | Elongation % | Hardness MAX (Brinell) |
|---|---|---|---|---|---|
| 304 | 70 | 25 | 92 | 40 | 201 |
| 316 | 75 | 30 | 95 | 40 | 217 |
SS brick anchors equivalent grade
| STANDARD | Germany | France | British Standard | Russia | Japan | North America | Europe |
|---|---|---|---|---|---|---|---|
| WERKSTOFF NR. | AFNOR | BS | GOST | JIS | UNS | EN | |
| 304 | 1.4301 | Z7CN18‐09 | 304S31 | 08Х18Н10 | SUS 304 | S30400 | X5CrNi18-10 |
| 316 | 1.4401 / 1.4436 | Z7CND17‐11‐02 | 316S31 / 316S33 | SUS 316 | S31600 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
SS UV Anchors resist the corrosion of corrosive acids and oxidation
Features of SS castable anchor
- Corrosion Resistance
- Durability and Versatility
- Mechanical Strength
- Lightweight Design
- Ease of Installation
- Low Thermal Conductivity
- High-Temperature Resistance
Stainless Steel y anchor refractory Application
- Furnaces
- Kilns
- Boilers
- Petrochemical Reactors
- Glass Manufacturing
- Energy Generation
