Inconel Wire Manufacturer in India
Check Alloy 625 Bright Wire gauge chart and sizes
Prashaant Steel has established itself as a trusted Inconel Wire Manufacturer in India. With its highly reliable performance in high temperature, pressure and aggressive surroundings, Inconel wire is widely applied in various industries especially in circumstances where normal materials cannot be utilized because of oxidation, tool corrosion or high heat. It is most suited for application in aerospace, chemical processing, power generation and many other demanding industries.
It is also built to stand high temperatures and is also protected against corrosion from the aggressive environments. Because of its mechanical character, Inconel x750 wire is resistant to oxidation and corrosion when used in high stress areas where other materials may begin to fail such as applications like hot gas, steam, or aggressive chemicals. Prashaant Steel and Alloys is known for its commitment to quality, precision, and customer satisfaction. The company delivers inconel spring wire which meets stringent industry standards.
Inconel 600 wires maintain their tensile strength in applications where many other alloys lose their strength or deplete under thermal loads. WNR 2.4816 flat wire, however, is not very hard and it is quite easy to form though it has very high strength. alloy 625 wire exhibits high tensile strength and does not fail under cyclic loading thus it is used in high-stress parts such as turbine blades and in exhaust systems.
Inconel 718 wire offer great tensile strength especially when used at high temperature and also resist both fatigue and creep; making them suitable for use in long term high stress applications. We offers quickest delivery in Algeria, Peru, Mexico and UAE of Inconel 601 wire in different diameters.
Inconel 625 wire is used extensively to withstand highly corrosive and oxidation environments due to the exceptional strength of this particular type of wire. It is commonly applied in aerospace industry, marine engineering, chemical industry and offshore drilling machinery production for the features of high intensity and strong anti-corrosion performance.
Table of content
- Inconel Wire Specification
- Inconel 601 Flat Wire Gauge Chart
- Sizes of UNS N06600 Bright Wire
- WNR 2.4816 Flat Wire Properties
- Alloy 625 Bright Wire sizes
- Nickel 601 Spring Wire Tolerance
- Features of Inconel 625 Lashing Wire
- Inconel Wire Price List
- Alloy UNS N06600 Round Wire Testing
- Inconel 600 Wire Equivalent Grades
- Nickel Alloy 625 Coil Wire Chemical Composition
- WNR 2.4816 Filler Wire Mechanical Properties
- Inconel Alloy 601 Bright Wire Applications
- HS Code of UNS N06625 Spring Wire
| Alloy 625 Rope Wire Length | Inconel 625 Wire Diameters | Inconel Wire Specifications |
|---|---|---|
|
|
|
| WNR 2.4816 Flat Wire Test Certificates | UNS N06600 Annealed Wire Dimensions | Inconel 601 Rope Wire Surface |
|
|
|
| Alloy 601 Spring Wire Packages | Nickel 718 Round Wire Forms | UNS N06600 Bright Wire Material |
|
|
|
| Inconel 2.4816 Wire Condition | Alloy 601 Coil Wire Sizes | Inconel Annealed Wire Origin |
|
|
|
| Inconel 718 Wire Lengths | UNS N06625 Filler Wire Manufacturing Technique | |
|
|
Different types of Inconel Wire
Inconel 600 wire
Inconel 601 wire
Inconel 625 wire
Inconel 718 wire
Alloy 625 coil wire

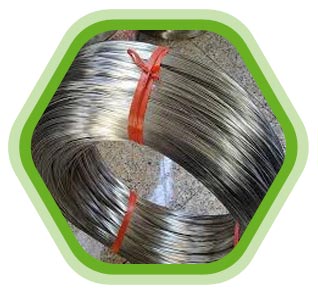

WNR 2.4816 flat wireInconel 601 Flat Wire Gauge Chart
| AWG Gauge | Diameter (inches) | Diameter (mm) |
|---|---|---|
| 8 | 0.1285 | 3.264 |
| 10 | 0.1019 | 2.588 |
| 12 | 0.0808 | 2.052 |
| 14 | 0.0641 | 1.626 |
| 16 | 0.0508 | 1.290 |
| 18 | 0.0403 | 1.024 |
| 20 | 0.0320 | 0.812 |
| 22 | 0.0253 | 0.643 |
| 24 | 0.0201 | 0.511 |
| 26 | 0.0159 | 0.404 |
| 28 | 0.0126 | 0.320 |
| 30 | 0.0100 | 0.254 |
WNR 2.4816 round wire are available in diameter range of 0.25 to 7mm
Sizes of UNS N06600 Bright Wire
| Sizes | |
|---|---|
| 0.25mm | 30AWG |
| 0.20mm | 32AWG |
| 0.40mm | 26AWG |
| 0.30mm | 28/29AWG |
| 0.28mm | 29AWG |
| 0.35mm | 27AWG |
| 0.32mm | 28AWG |
Nickel 601 spring wire offers higher creep and stress rupture properties
WNR 2.4816 Flat Wire Properties
| Creep Properties | Stress Rupture Properties |
|---|---|
| Creep Strength | Fatigue Resistance |
| High Temperature Resistance | Rupture Strength |
| Temperature Range | Stress Rupture Testing |
| Microstructural Stability | Long-Term Stability |
| Inconel 600 wire diameter | Thickness |
|---|---|
| 0.045 | 1/16 in. |
| 1/4 in. | 1/2 in. |
| 1/8 in. | 3/16 in. |
| 1/16 | 3/32 in. |
| 3/16 in. | 1/4 in. |
| 1/16 | 1/8 in. |
Nickel 601 Spring Wire Tolerance
| Diameter | Tolerance |
|---|---|
| 0.03 | ±0.0025 |
| >0.10-0.40 | ±0.006 |
| >0.03-0.10 | ±0.005 |
| >0.80-1.20 | ±0.02 |
| >0.40-0.80 | ±0.013 |
| >1.20-2.00 | ±0.03 |
Features of Inconel 625 Lashing Wire
- High Temperatures
- Uniform and beautiful surface condition
- Good electric and thermal conduction
- long life etc.
- Corrosion
- Oxidtion resistance
- wear resistance
- High intensity and elastic module
- Radiation protection ,Anti-static
| Price list of Inconel Wires | Price in USD | Price in UAE Dirham |
|---|---|---|
| INCONEL WIRE Size: 64 X 44 , 92 7,9 MM | US $ 883.14 | UAE 3243.77 |
| INCONEL WIRE | US $ 23.19 | UAE 85.18 |
| INCONEL 625 FILLER WIRE Size: 1.2MM | US $ 28.63 | UAE 105.16 |
| INCONEL GRADE 600 SPRING WIRE -DIAMETER: 1.6MM | US $ 25.45 | UAE 93.48 |
Alloy UNS N06600 Round Wire Testing
- Micro and MacroTest
- Positive Material Identification – PMI Testing
- Tensile Test
- Flattening Test
- Intergranular Corrosion (IGC) Test
- Pitting Resistance Test
- Flaring Test
- Hardness Test
- Chemical Analysis – Spectro Analysis
Inconel 600 Wire Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | EN | AFNOR |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | МНЖМц 28-2,5-1,5 | NA 13 | NiCr15Fe | NC15FE11M |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | XH60BT | NA 49 | NiCr23Fe | NC23FeA |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | ХН75МБТЮ | NA 21 | NiCr22Mo9Nb | NC22DNB4M |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Nickel Alloy 625 Coil Wire Chemical Composition
| Grade | C | S | Mn | Cu | Si | Ni | Fe | Cr |
|---|---|---|---|---|---|---|---|---|
| Inconel 718 | 0.08 max | 0.015 max | 0.35 max | 0.30 max | 0.35 max | 50.00 – 55.00 | – | 17.00 – 21.00 |
| Inconel 625 | 0.10 max | 0.015 max | 0.50 max | – | 0.50 max | 58.0 min | 5.0 max | 20.0 – 23.0 |
| Inconel 601 | 0.10 max | 0.015 max | 1.0 max | 1.0 max | 0.5 max | 58.0 – 63.0 | Balance | 21.0 – 25.0 |
| Inconel 600 | 0.15 max | 0.015max | 1.00 max | 0.50 max | 0.50 max | 72.00 min | 6.00 – 10.00 | 14.00 – 17.00 |
Tensile tests are performed on Inconel 600 wire before dispatching
WNR 2.4816 Filler Wire Mechanical Properties
| Element | Melting Point | Density | Yield Strength | Tensile Strength | Elongation |
|---|---|---|---|---|---|
| Inconel 600 | 1413 °C (2580 °F) | 8.47 g/cm3 | 45,000 psi, 310 Mpa | 95,000 psi , 655 Mpa | 40 % |
| Inconel 601 | 1411 °C (2571 °F) | 8.1 g/cm3 | 30,000 psi , 205 Mpa | 80,000 psi , 550 Mpa | 30 % |
| Inconel 625 | 1350 °C (2460 °F) | 8.4 g/cm3 | 75,000 psi , 517 Mpa | 1,35,000 psi , 930 Mpa | 42.5 % |
| Inconel 718 | 1350 °C (2460 °F) | 8.2 g/cm3 | 75,000 psi , 482 Mpa | 1,35,000 psi , 930 Mpa | 45 % |
UNS N06625 annealed wire has good resistance to oxidation at high temperatures
Inconel Alloy 601 Bright Wire Applications
- Hydropower
- Machine building industry
- Petrochemical
- Aerospace industry
- shipbuilding
- Chemical fiber
- Nuclear power
- Oil refining
HS Code of UNS N06625 Spring Wire
| HS Code | 75052200 |
|---|
Check shipment time and the countries We export
| Destination Port | Typical Delivery Timeline |
|---|---|
| Rotterdam – Netherlands | 25-30 days |
| Hamburg – Germany | 25-30 days |
| Antwerp – Belgium | 25-30 days |
| San Francisco – USA | 30-35 days |
| Singapore – Singapore | 7-10 days |
| Jebel Ali – UAE | 7-10 days |
| Sydney – Australia | 25-30 days |
| Busan – South Korea | 25-30 days |
| Tokyo – Japan | 30-35 days |
| Durban – South Africa | 25-30 days |
| Mombasa – Kenya | 20-25 days |
