Inconel Refractory Anchors specification
Types of Inconel Refractory Anchors
Inconel Alloy UV Anchors chemical composition
Inconel Castable Anchor mechanical properties
Inconel Refractory fixing equivalent grade
Inconel refractory ceramic anchors sizes
Factors to Consider When Selecting Inconel Anchor Brick
Installation Process for Inconel Refractory Anchors
Benefits of Using Inconel UV Type Anchors

Inconel alloy refractory anchors are available in different types such as V, Y and U anchors

Inconel Refractory Anchors specification

Diameter	Length	Type
6 mm to 20 mm	Upto 120MM	V-anchor Y-anchor UV-anchor
Temperature Rating	Thickness	Standards
Up to 1600°C	2.3 mm to 2.5 mm	ASTM / ISO / EN
Surface Finish	Material Origin	Tolerances
Hot Dip Galvanized Nickel Plated Blackening Galvanized Buffing Cadmium Zinc Plated	Janpanese Russia Korean American European	+/- 3mm on Dimensional +/- 3° on Angular Dimensions
Installation Method	Available grades
Suitable for manual & arc welding both	Inconel 600 Inconel 601 Inconel 625 Inconel 718

Types of Inconel Refractory Anchors

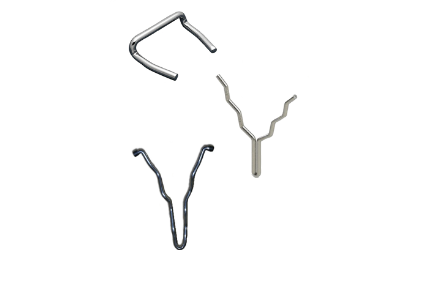

Inconel UV Anchors

$Inconel refractory ceramic anchors$

Inconel refractory ceramic anchors

$Inconel Alloy refractory anchor$

Inconel Alloy refractory anchor

$Inconel Refractory fixing$

Inconel Refractory fixing

$Inconel Refractory Anchor Brick$

Inconel Refractory Anchor Brick

Inconel Castable Anchors

Inconel Alloy UV Anchors chemical composition

Grade	C	S	Mn	Cu	Si	Ni	Fe	Cr
Inconel 718	0.08 max	0.015 max	0.35 max	0.30 max	0.35 max	50.00 – 55.00	–	17.00 – 21.00
Inconel 625	0.10 max	0.015 max	0.50 max	–	0.50 max	58.0 min	5.0 max	20.0 – 23.0
Inconel 601	0.10 max	0.015 max	1.0 max	1.0 max	0.5 max	58.0 – 63.0	Balance	21.0 – 25.0
Inconel 600	0.15 max	0.015max	1.00 max	0.50 max	0.50 max	72.00 min	6.00 – 10.00	14.00 – 17.00

Inconel Castable Anchor high mechanical strength and corrosion resistance

Inconel Castable Anchor mechanical properties

Element	Melting Point	Density	Yield Strength	Tensile Strength	Elongation
Inconel 600	1413 °C (2580 °F)	8.47 g/cm3	45,000 psi, 310 Mpa	95,000 psi , 655 Mpa	40 %
Inconel 601	1411 °C (2571 °F)	8.1 g/cm3	30,000 psi , 205 Mpa	80,000 psi , 550 Mpa	30 %
Inconel 625	1350 °C (2460 °F)	8.4 g/cm3	75,000 psi , 517 Mpa	1,35,000 psi , 930 Mpa	42.5 %
Inconel 718	1350 °C (2460 °F)	8.2 g/cm3	75,000 psi , 482 Mpa	1,35,000 psi , 930 Mpa	45 %

Inconel Refractory fixing equivalent grade

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	BS	EN	AFNOR
Inconel 600	2.4816	N06600	NCF 600	МНЖМц 28-2,5-1,5	NA 13	NiCr15Fe	NC15FE11M
Inconel 601	2.4851	N06601	NCF 601	XH60BT	NA 49	NiCr23Fe	NC23FeA
Inconel 625	2.4856	N06625	NCF 625	ХН75МБТЮ	NA 21	NiCr22Mo9Nb	NC22DNB4M
Inconel 718	2.4668	N07718	–	–	–	–	–

Inconel Refractory fixing are available in 5mm to 12mm diameter

Inconel refractory ceramic anchors sizes

Y- Anchors	Spiral Y Anchors	U anchors	V- Anchors
220 X 148 X 9 MM 188 X 48 X 9 MM 188 X 107 X9 MM 175 X 28 X 9 MM 155 X 69 X 9 MM 88 X 31 X 9 MM 85 X 29 X 9 MM	219 X 147 X 5 MM 192 X 47 X 5 MM 188 X 107 X 5 MM 178 X 37 X 5 MM 155 X 72 X 5 MM 90 X 32 X 5 MM 80 X 32 X 5 MM	45 X 15 X 05 MM 235 X 29 X 05 MM	65 X 25 X 10 MM

Factors to Consider When Selecting Inconel Anchor Brick

Temperature Resistance
Corrosion Resistance
Mechanical Stress
Installation Requirements

Installation Process for Inconel Refractory Anchors

Surface Preparation
Anchor Placement
Anchor Embedment
Curing and Drying
Refractory Lining Application
Final Inspection

Various NDT test are performed on Inconel refractory ceramic anchors before dispatching, View benefits

Benefits of Using Inconel UV Type Anchors

Corrosion Resistance
High-Temperature Resistance
Mechanical Stability
Versatility
Longevity
