Stainless Steel Cotter Pins
AISI 304 Split Pins Manufacturer in India
Table of content
A4 stainless steel split pins are available in Diameters ranging from M1 to M13
Stainless Steel Cotter Pins Specification
| SS Cotter Pins Sizes | A4 Stainless Steel Split Pins Width | Marine Stainless Steel Split Pins Length |
|---|---|---|
|
|
|
| SS Split Pin Shape | AISI 304 Split Pins Material | Standard |
|
|
|
| Stainless Steel Split Pins Specifications | SS Metric Cotter Pins Grade | Packaging |
|
|
|
| Stainless Steel Cotter Pins Types | Stainless Steel 304 Cotter Pin Head Type | SUS 304 Split Pin Benefits |
|
|
|
| SS 304 Locking Cotter Pin Finishes | Stainless Steel Cotter Pins Temperature Range | |
|
|
Different types of SS Cotter Pins
SS Cotter Pin
AISI 304 Split Pins
Stainless Steel Locking Cotter Pin
SUS 304 Small Cotter Pins
304 Stainless Steel Large Cotter Pin

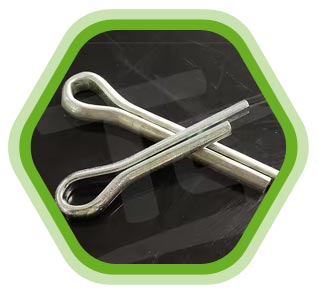

Stainless Steel 304 Metric Cotter Pins
Marine SS Heavy Duty Cotter Pins
SS 304 Long Cotter Pins
SUS 304 Self Locking Cotter Pin
SS metric cotter pins are corrosion resistance and durable
Stainless Steel Split Pins Size Chart
| Nominal Size | d | c | b | a | |||
|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | Max. | Min. | Max. | |
| 16 | 15.1 | 15.4 | 27 | 30.8 | 32 | 3.1 | 6.3 |
| 1.6 | 1.3 | 1.4 | 2.4 | 2.8 | 3.2 | 1.2 | 2.5 |
| 1 | 0.8 | 0.9 | 1.6 | 1.8 | 3 | 0.8 | 1.6 |
| 6.3 | 5.7 | 5.9 | 10.3 | 11.8 | 12.6 | 2 | 4 |
| 1.2 | 0.9 | 1 | 1.7 | 2 | 3 | 1.2 | 2.5 |
| 10 | 9.3 | 9.5 | 16.6 | 19 | 20 | 3.1 | 6.3 |
| 2 | 1.7 | 1.8 | 3.2 | 3.6 | 4 | 1.2 | 2.5 |
| 4 | 3.5 | 3.7 | 6.5 | 7.4 | 8 | 2 | 4 |
| 2.5 | 2.1 | 2.3 | 4 | 4.6 | 5 | 1.2 | 2.5 |
| 8 | 7.3 | 7.5 | 13.1 | 15 | 16 | 2 | 4 |
| 3.2 | 2.7 | 2.9 | 5.1 | 5.8 | 6.4 | 1.6 | 3.2 |
| 13 | 12.1 | 12.4 | 21.7 | 24.8 | 26 | 3.1 | 6.3 |
| 5 | 4.4 | 4.6 | 8 | 9.2 | 10 | 2 | 4 |
Stainless Steel 304 cotter pin are used to secure bolts and other fasteners
SS Split Pins Chemical Composition
| Grade | Carbon | Phosphorus | Titanium | Sulfur | Manganese | Chromium | Nickel | Molybdenum | Silicon |
|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.08 | 0.045 | 0.03 | 2 | 18.0-20.0 | 8.0-11.0 | 1 | ||
| 316 | 0.08 | 0.045 | 0.03 | 2 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | 1 |
Stainless Steel Metric Cotter Pins Mechanical Properties
| Grade | Yield Strength | Tensile Strength | Hardness MAX Brinell | Hardness MAX Rockwell B | Elongation % |
|---|---|---|---|---|---|
| 304 | 25 | 70 | 201 | 92 | 40 |
| 316 | 30 | 75 | 217 | 95 | 40 |
SS Locking Cotter Pin Equivalent Grades
| STANDARD | Germany | North America | France | Japan | British Standard | Europe | Russia |
|---|---|---|---|---|---|---|---|
| WERKSTOFF NR. | UNS | AFNOR | JIS | BS | EN | GOST | |
| 304 | 1.4301 | S30400 | Z7CN18‐09 | SUS 304 | 304S31 | X5CrNi18-10 | 08Х18Н10 |
| 316 | 1.4401 / 1.4436 | S31600 | Z7CND17‐11‐02 | SUS 316 | 316S31 / 316S33 | X3CrNiMo17-13- /3X5CrNiMo17-12-2 |
Leading stockist and supplier of SUS 304 locking cotter pin
Stainless Steel 304 Cotter Pin Application
- Aerospace
- Automotive
- Machinery
- Agriculture
- Marine
- Construction
- Furniture
- Electrical
