Nickel Alloy Cotter Pins
Inconel split pin manufacturer in India
Table of content
Monel cotter pins as per ASTM B164 UNS N04400
Nickel Alloy Cotter Pins Specification
| Inconel Split Pin Sizes | Nickel Alloy Cotter Pin Width | UNS N02200 Small Cotter Pins Length |
|---|---|---|
|
|
|
| Nickel Alloy Long Cotter Pins Material | Nickel 201 Split Cotter Pin Shape | Nickel 200 Split Pins Suitable Environment |
|
|
|
| Hastelloy C276 Locking Cotter Pin Temperature Limit | DIN 2.4068 Long Cotter Pins Hardness | UNS N02201 Heavy Duty Cotter Pins Packaging |
|
|
|
| Nickel Alloy Cotter Pins Types | Nickel Alloy Split Cotter Pin Head Type | Pure Nickel Locking Cotter Pin Benefits |
|
|
|
| UNS N02200 Split Pins Finishes | Nickel 201 R Cotter Pin Applications | DIN 2.4068 Self Locking Cotter Pin Corrosion Resistance |
|
|
|
Various Types of Nickel Cotter Pins
Pure Nickel Cotter Pin
Nickel Alloy Split Pins
Inconel Split Locking Cotter Pin
DIN 2.4066 Small Cotter Pins

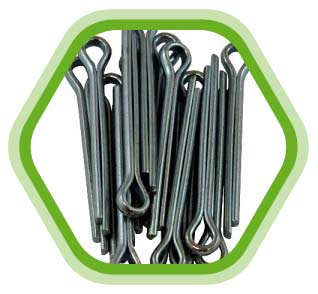

UNS N02201 Large Cotter Pin
Nickel 200 Metric Cotter Pins

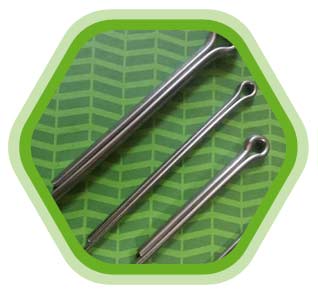

UNS N02200 Heavy Duty Cotter Pins
Ni 200 Long Cotter Pins
DIN 2.4068 Self Locking Cotter Pin
Manufacturer of Hastelloy cotter pins in grade C276, C22
Nickel Cotter Pins Chemical Composition
| Grade | Ni | C | Si | Mn | Cu | S | Fe |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 99.0 min | 0.15 max | 0.35 max | 0.35 max | 0.25 max | 0.01 max | 0.40 max |
| Nickel 201 | 99.0 min | 0.02 max | 0.35 max | 0.35 max | 0.25 max | 0.01 max | 0.40 max |
Check sizes of Incoloy cotter pins in grade 800, 800h and 825
| Nominal Size | Basic Pin Diameter | T | W | B | A | Recommended Hole Size | ||
| Total Shank Diameter | Wire Width | Head Diameter | Extended Prong Length | |||||
| Max. | Min. | Max. | Min. | Min. | Min. | |||
|
1/16 |
0.062 | 0.060 | 0.056 | 0.060 | 0.044 | 0.12 | 0.03 | 0.078 |
| 3/32 | 0.094 | 0.090 | 0.086 | 0.090 | 0.069 | 0.19 | 0.04 | 0.109 |
| 1/8 | 0.125 | 0.120 | 0.116 | 0.120 | 0.093 | 0.25 | 0.06 | 0.141 |
| 5/32 | 0.156 | 0.150 | 0.146 | 0.150 | 0.116 | 0.31 | 0.07 | 0.172 |
| 3/16 | 0.188 | 0.176 | 0.172 | 0.176 | 0.137 | 0.38 | 0.09 | 0.203 |
| 1/4 | 0.250 | 0.225 | 0.220 | 0.225 | 0.176 | 0.50 | 0.11 | 0.266 |
| 5/16 | 0.312 | 0.280 | 0.275 | 0.280 | 0.220 | 0.62 | 0.14 | 0.312 |
| 3/8 | 0.375 | 0.335 | 0.329 | 0.335 | 0.263 | 0.75 | 0.16 | 0.375 |
| 1/2 | 0.500 | 0.473 | 0.467 | 0.473 | 0.373 | 1.00 | 0.23 | 0.500 |
Ni Split Pins Mechanical Properties
| Element | Tensile Strength | Density | Yield Strength (0.2%Offset) | Melting Point | Elongation |
| Nickel 200 / 201 | Psi – 67000 , MPa – 462 | 8.9 g/cm3 | Psi – 21500 , MPa – 148 | 1446 °C (2635 °F) | 45 % |
Ni Alloy Small Cotter Pins Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | BS | GOST | JIS | EN |
| Nickel 200 | N02200 | 2.4066 | N-100M | NA 11 | НП-2 | NW 2200 | Ni 99.2 |
| Nickel 201 | N02201 | 2.4068 | – | NA 12 | НП-2 | NW 2201 | LC-Ni 99 |
Heat Treatment of Hastelloy Cotter Pins
| Heat Treatments | in °C | in °F |
|---|---|---|
| Hot forming | 870 to 1230 | 1600 to 2250 |
| Heavy forming | More than 1090 | More than 2000°F |
| Normally annealed | 1150-1175 | 2100-2150 |
Ultrasonic and PMI test are conducted on Nickel 200 Large Cotter Pin
Testing of Incoloy Cotter Pins
- Tensile Testing
- Corrosion Testing
- Microstructural Analysis
- Hardness Testing
- Ultrasonic Testing
- Dimensional Inspection
- PMI Test
- Non-destructive Testing
- Fatigue Testing
- Thermal Testing
