Silicon bronze nuts

Table of content

Silicon Bronze Nuts Specification
Price list of Silicon Bronze C651 Nut
Types of Silicon Bronze Nut
UNS C65600 Square Nuts Chemical Composition
C65600 Alloy Heavy Hex Nut Mechanical Properties
C65600 Bronze Thin Nuts Physical Properties
ASTM B98 C65100 Hex Nut Dimensions
Weight Chart of Silicon Bronze Heavy Hex Nuts
Does silicon Bronze nut rust?
Characteristics of UNS C65100 Hex Nut

Silicon Bronze Nuts Specification

ASTM C65600 Nut Imperial Sizes	Silicon Bronze Alloy Nut Metric Size	ASTM B98 C65100 Heavy Hex Nuts Standard
3/6 " – 2 "	M3 – M56	ASME SB584 ASTM SB584
Silicon Bronze Hex Jam Nuts DIN Standards	C65600 Bronze Square Nuts ISO Standard	Surface Coating
DIN 933 DIN 931 DIN 970 DIN 934	ISO 4032 ISO 4033 JIS	Teflon Coated Zinc Coated Hot Dipped Galvanizing Coating Xylon Coating
UNS C65600 Hex Coupling Nut Threads	Alloy C651Heavy Duty Hex Nuts Head Type	ASTM B584 C65600 Hex Nuts Head Style
UNF Metric UNC UNEF	Square Round Threading Hex	Six-Lobe Slotted Phillips Phillips/Slot etc
Export to ASME SB584 Self Locking Nuts	Silicon Bronze Nuts Types	UNS C65100 Spring Nuts Uses
Australia UAE Canada USA Malaysia UK	Large Heavy Hex Nuts Heavy Hex Nuts Hex Jam Nut Heavy Duty Hex Nuts Heavy Hex Coupling Nut	Nuclear power Wind tower Industrial Electronic Milled end Construction
C65100 Eye Nuts Testing	Silicon Bronze Alloy Lock Nut Certification	C651 Silicon Bronze Heavy Hex Nut Marking
Intergranular Corrosion Elevated Tensile Wedge Testing Charpy UT Hardness	Third Party Inspection Report MTC EN 10204 3.1/3.2 HS Code Raw Materials Certificate Moisture testing report	Size Method of Manufacturing Specification Heat Number Manufacturer’s Name or Logo Grade Schedule

Price list of Silicon Bronze C651 Nut

Silicon Bronze Nuts	Price in USD	Price in UAE
SILICON BRONZE NUT SIZE:	USD $ 0.68	UAE 2.50
SILICON BRONZE C651 Nut	USD $ 0.23	UAE 0.84
SILICON BRONZE HEX NUT SILICON BRONZE HEX NUT FULL FULL Size: 3/4 UNC	USD $ 7.45	UAE 27.36

Types of Silicon Bronze Nut

UNS C65100 Hex Nut

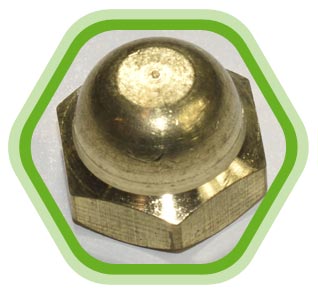

C65500 Alloy Acorn Nuts

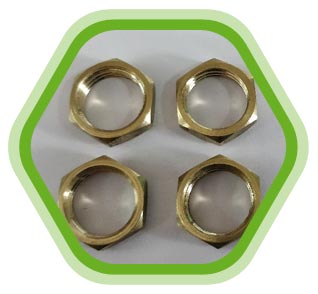

C65600 Bronze Thin Nuts

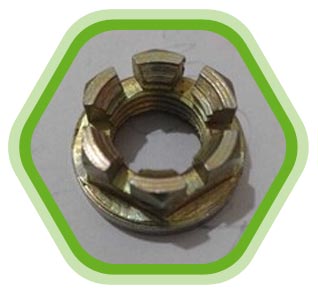

UNS C65100 Slotted Nuts

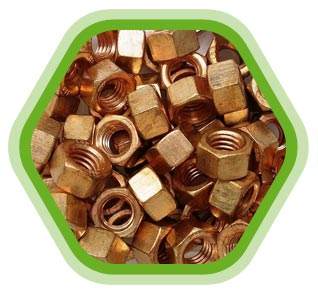

C65600 Alloy Heavy Hex Nut

ASTM B98 C65100 Domed Cap Nut

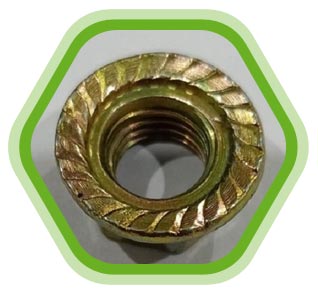

C651 Silicon Bronze Serrated Flange Nuts

Silicon Bronze C651 T-Nuts

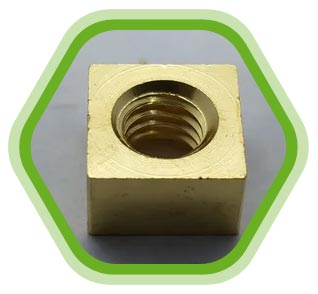

UNS C65600 Square Nuts

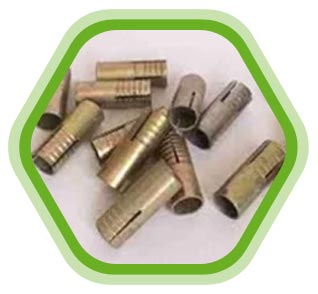

C65600 Bronze Sleeve Nuts

Silicon Bronze 655 Rivet Nuts

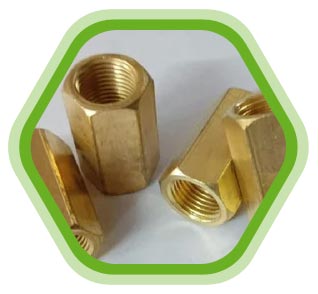

C65100 Alloy Coupling Nuts

UNS C65600 Square Nuts Chemical Composition

Component	Silicon Bronze
Cu	98.5
Mn	Max 0.7
Fe	Max 0.8
Si	0.8 – 2
Pb	Max 0.05
Zn	Max 1.5

C65600 Alloy Heavy Hex Nut Mechanical Properties

Physical Strength	Metric	English
Density	8.53 g/cc	0.308 lb/in³
Melting Point	970 – 1025 °C	1780 – 1880 °F
Liquidus	1025 °C	1880 °F
Solidus	970 °C	1780 °F

C65600 Bronze Thin Nuts Physical Properties

Mechanical Properties
Hardness, Rockwell F	55	55
Tensile Strength, Yield	105 MPa	15200 psi	0.5% extension under load
Tensile Strength, Ultimate	275 MPa	39900 psi
Modulus of Elasticity	115 GPa	16700 ksi
Elongation at Break	50 %	50 %	In 50 mm
Shear Modulus	44 GPa	6380 ksi
Machinability	30 %	30 %	UNS C36000 (free-cutting brass) = 100%

ASTM B98 C65100 Hex Nut Dimensions

Nominal Size or Basic Major Thread Diameter		H			G		F
		Thickness			Width Across Corners		Width Across Flats
		Basic	Min	Max	Max	Min	Basic	Min	Max
1/4	.2500	15/64	.218	.250	.577	.556	1/2	.488	.500
7/16	.4375	27/64	.403	.441	.866	.830	3/4	.728	.750
5/16	.3125	19/64	.280	.314	.650	.622	9/16	.546	.562
9/16	.5625	35/64	.526	.568	1.083	1.037	15/16	.909	.938
3/8	.3750	23/64	.341	.377	.794	.763	11/16	.669	.688
7/8	.8750	55/64	.833	.885	1.660	1.589	1-7/16	1.394	1.438
1/2	.5000	31/64	.464	.504	1.010	.969	7/8	.850	.875
1-1/8	1.1250	1-7/64	1.079	1.139	2.093	2.002	1-13/16	1.756	1.812
5/8	.6250	39/64	.587	.631	1.227	1.175	1-1/16	1.031	1.062
1-1/4	1.2500	1-7/32	1.187	1.251	2.309	2.209	2	1.938	2.000
3/4	.7500	47/64	.710	.758	1.443	1.382	1-1/4	1.212	1.250
1-1/2	1.5000	1-15/32	1.433	1.505	2.742	2.622	2-3/8	2.300	2.375
1	1.0000	63/64	.956	1.012	1.876	1.796	1-5/8	1.575	1.325
1-5/8	1.6250	1-19/32	1.556	1.632	2.959	2.828	2-9/16	2.481	2.562
1-3/8	1.3750	1-11/32	1.310	1.378	2.526	2.416	2-3/16	2.119	2.188
2	2.0000	1-31/32	1.925	2.013	3.608	3.449	3-1/8	3.025	3.125
1-3/4	1.7500	1-23/32	1.679	1.759	3.175	3.035	2-3/4	2.662	2.750
2-1/2	2.5000	2-29/64	2.401	2.505	4.474	4.275	3-7/8	3.750	3.875
2-1/4	2.2500	2-13/64	2.155	2.251	4.041	3.862	3-1/2	3.388	3.500
3	3.0000	2-61/64	2.893	3.013	5.340	5.102	4-5/8	4.475	4.625
2-3/4	2.7500	2-45/64	2.647	2.759	4.907	4.688	4-1/4	4.112	4.250
3-1/2	3.5000	3-7/16	3.370	3.506	6.207	5.928	5-3/8	5.200	5.375
3-1/4	3.2500	3-3/16	3.124	3.252	5.774	5.515	5	4.838	5.000
4	4.0000	3-15/16	3.862	4.014	7.073	6.755	6-1/8	5.925	6.125
3-3/4	3.7500	3-11/16	3.616	3.670	6.640	6.341	5-3/4	5.562	5.750

Weight Chart of Silicon Bronze Heavy Hex Nuts

Size	Weight
M1	0.030
M10	11.6
M1.2	0.054
M12	17.3
M1.4	0.063
M14	25.0
M1.6	0.076
M16	33.3
M2	0.142
M22	79
M2.5	0.280
M5	1.23
M3	0.384
M33	288
M3.5	0.514
M85	3930
M4	0.81
M20	64.4
M36	393
M6	2.50
M56	1420
M7	3.12
M27	165
M8	5.20
M39	502
M18	49.4
M24	110
M45	800
M30	223
M60	1690
M48	977
M42	652
M64	1980
M52	1220
M72	2670
M68	2300
M80	3440
M76	3040
M100	6820
M90	4930

Does silicon Bronze nut rust?

No, Silicon Bronze Nuts do not rust. They are typically made up of copper and silicon.Silicon bronze is resistant to corrosion, particularly in humid and marine applications, as opposed to rusting, which is the oxidation of iron. Silicon Bronze Nuts are durable choice for variousa applications

Characteristics of UNS C65100 Hex Nut

Excellent dimensional precision
High electrical and thermal conductivity
Corrosion and metal fatigue resistance
Low friction
Expansion when hardening
High ductility
High melting point
Great surface finish
Hard elemental property
