Refractory Anchors Manufacturer in India
View Refractory Brick Anchors sizes and specification
Table of content
Refractory v anchors and u anchors are manufactured in thickness range of 2.3 to 2.5 mm
Refractory Anchors specification
| Diameter | Type | Length |
|---|---|---|
| 6 mm to 20 mm |
|
150 – 400 mm |
| Temperature Rating | Standards | Thickness |
| Up to 1000°C | ASTM / ISO / EN | 2.3 mm to 2.5 mm |
| Surface Finish | Tolerances | Material Origin |
|
|
|
| Installation Method | Corrosion Resistance | |
|
Moderate |

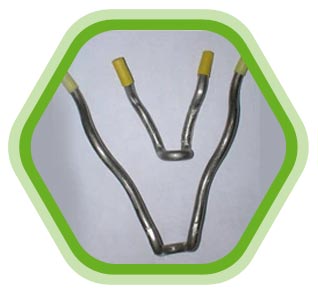

Refractory v anchors

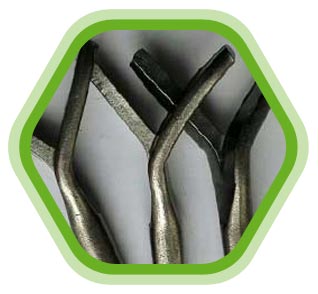

Refractory y anchors

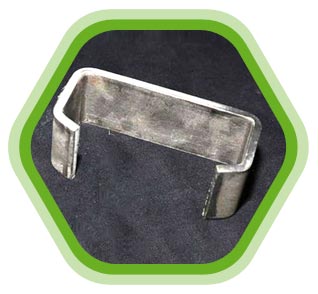

Refractory brick anchors
Refractory stud anchors
Castable anchor
UV Anchors
Manufacturer of refractory stud anchors as per EN 10278 standard
Refractory stud anchors size chart
| Diameter (mm) | Length (mm) | Spacing (mm) |
|---|---|---|
| 10 – 20 | 150 – 400 | 300 – 600 |
Features of Refractory Anchors
- Ease of Installation
- Prolong application lifespan
- Protect against corrosion
- High-Temperature Resistance
- Provide thermal insulation
Temperature Resistant of Anchor Metal
| Anchor Metal | Temperature Resistant |
| Mild Steel | 540 Deg C |
| Stainless Steel 304 | 1080 Deg C |
| Stainless Steel 310 | 1350 Deg C |
Bend and hammer test are performed on refractory y anchors supplied by us
Testing and Inspection of Refractory v anchors
- Tensile Strength Test
- Hardness Test
- Load Testing
- Non-Destructive Testing
- Ultrasonic Testing
- Visual Inspection
Castable anchors are widely used in the construction industry for securing components
Application of Y anchor refractory
- Petrochemical Reactors
- Glass Manufacturing
- Boilers
- Energy Generation
- Furnaces
- Kilns
