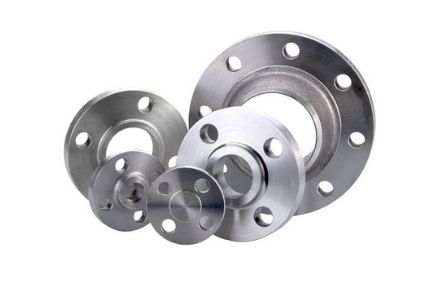

korean flanges standards
KS B1503 Weld neck flange, KS D 3578 korean standard blind flange supplier and exporter in India.
Korean Flanges manufacturer in India, KS B 1503 Pipe Flange exporter in Mumbai, KS D 3578 Korean standard flange stockholders in Mumbai, India
Detailed Information

Prashaant Steel & Alloys is a maker of Korean Flanges of exceptional quality. The Korean Flanges that we manufacture are highly common due to their superior quality. Korean Flanges have the standards of the correct specifications to be used in surface drilling and production. These flanges have a long history, and many of these have been discontinued or replaced with a newer version. We are one of the top Korean Flanges Manufacturers in India who produce high-quality Korean Weld Neck Flange and other types of flanges with current configurations.

This flange comes in different dimensions with sizes ranging from ½ inches to 80 inches with materials ranging in carbon steel and stainless steel. The KS B 6216 10k rf flange is labeled in Korean standards for the pressure class. There are pressure classes ranging differently and the 10k is a medium pressure range. The KS D 4308 Korean Flange is made up of different materials such as the F304, F304L, F316 and so on with the specification being ASTM A182. The applications vary based on the material grade and the different types and shapes of the flanges. The KS D 3578 Korean standard flanges can also come with different anti rust types such as the anti rust oil, black paint, yellow paint coating, hot dip galvanized and so on. The Korean Flange KS B 2332 can range from ½ inches to 48 inches in size with Korean standards ranging from 5K to 63K.  Korean standard flanges are used in Korea locally and elsewhere in the world internationally. The Korean flanges come in different grades, standards and in different dimensions. There are stainless steel, austenitic, ferritic, duplex and other alloy flanges such as the KS B 6216 Flange. Our Korean Flange comes with a maximum working pressure of 5000 PSI. According to the client’s requirements, we offer different types of BX flange, including weld neck, blind, etc.

Korean standard flange Specification list

Korean Flanges Size Chart

1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000

Korean Flanges Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1,

API7S-15, API7S-43, API605, EN1092

UNI

6Bar 10Bar 16Bar 25Bar 40Bar

EN

6Bar 10Bar 16Bar 25Bar 40Bar

Korean Flanges Pressure Rating ANSI

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

Korean Flanges Pressure Calculation in DIN

6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64

JIS

5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K

Test Certificates

EN 10204/3.1B

Raw Materials Certificate

100% Radiography Test Report

Third Party Inspection Report, etc

Coating

Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized

Most common types of Korean Flanges

forged / Threaded / Screwed / Plate

Production technique

forged, Heat treated and machined

Connect Type/ Flange Face Type

Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove

Special design

As per your drawing

AS, ANSI, BS, DIN and JIS

15 NB (1/2″) to 200 NB (8″)

Equal and Reducing Configurations

Origin

Indian / West Europe / Japan / USA / Korean

Manufacturer of

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.

Korean Flanges: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange,

MSS SP 44 Flange, GOST Flange, PSI Flange

  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Korean Flanges

The other standard: MSS SP 44; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276

Test

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Equipment

Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc

KS B 1503 Flanges Dimensions:

KS B 1503 10K Flange

KS B 1503 5K Flange

KS B 1503 40K Flange

KS B 1503 20K Flange

KS B 1503 16K Flange

KS B 1503 30K Flange

KS D 3578 Flange

KS D 4308 Flange

KS B 6216 Flange

KS B 2332 & 2333 Flange

DIN 6 BAR Flange

KS B 6216 Flange

ANSI CL 400-600 Flange

ANSI CL 900 Flange

ANSI CL 1500-2500 Flange

JIS – KS Material Specifications

DIN 6 BAR Flange

DIN 10 BAR Flange

DIN 16 BAR Flange

DIN 25 BAR Flange

DIN 40 BAR Flange

ANSI CL 150-300 Flange

KS B 6216 flange Standard Weight

NPS

(Inches)

DN

(mm)

FLANGE OD

A MM

FLANGE THICKNESS D

MM

SLIP ON FLANGE WEIGHT (KGS)

WELD NECK FLANGE WEIGHT (KGS)

BLIND FLANGE WEIGHT (KGS)

1/ 2

15

88.9

11.2

0.4

0.5

0.4

3/ 4

20

98.6

12.7

0.6

0.7

0.6

1

25

108

14.2

0.8

1

0.9

1 1/ 4

32

117.3

15.7

1

1.3

1.2

1 1/ 2

40

127

17.5

1.3

1.7

1.5

2

50

152.4

19.1

2.1

2.6

2.4

2 1/ 2

65

177.8

22.4

3.3

4.1

3.9

3

80

190.5

23.9

3.9

4.9

4.9

3 1/ 2

90

215.9

23.9

4.8

6.1

6.2

4

100

228.6

23.9

5.3

6.8

7.0

5

125

254

23.9

6.1

8.6

8.6

6

150

279.4

25.4

7.5

10.6

11.3

8

200

342.9

28.4

12.1

17.6

19.6

10

250

406.4

30.2

16.5

24

28.6

12

300

482.6

31.8

26.2

36.5

43.2

14

350

533.4

35.1

34.6

48.4

58.1

16

400

596.9

36.6

44.8

60.6

76.1

18

450

635

39.6

48.9

68.3

93.7

20

500

698.5

42.9

61.9

84.5

122.0

24

600

812.8

47.8

86.9

115

185.0

Available Material of Korean Flanges

Carbon Steel

  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694

Stainless Steel

  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H

Alloy Steel

  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91

Inconel

  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750

Copper

T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200,

C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc

Copper Nickel

Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640

Brass

3602 / 2604 / H59 / H62 / etc.

Hastelloy

Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X

Monel

Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)

Alloy 20

Carpenter® 20 Alloy, Alloy 20Cb-3

Aluminium

5052 /6061/ 6063 / 2017 / 7075 / etc.

Nickel

Nickel 200, Nickel 201

Duplex

S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61

Super Duplex

S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61

Incoloy

Incoloy 800, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825)

254 Smo

SMO 254/6Mo, UNS S31254, DIN 1.4547

Nimonic

Nimonic 75, Nimonic 80A, Nimonic 90

Other material

Tin bronze, Alumunum bronze, Lead bronze

Titanium

  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7

Korean Flanges Flange Standards

ASME/ANSI B 16.36

Welding Neck Flange, Slip on Flange, Threaded Flange

PRESSURE CLASS

300, 400, 600, 900, 1500, 2500

ASME/ANSI B 16.5

Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange

PRESSURE CLASS

150, 300, 400, 600, 900, 1500, 2500

ASME/ANSI B 16.47

Welding Neck Flange, Blind Flange [Series A & B]

PRESSURE CLASS

75, 150, 300, 400, 600, 900

BS 4504 SEC 3.1

Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange

PRESSURE CLASS

PN 2.5 TO PN 40

BS 4504[PART 1]

Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange

PRESSURE CLASS

PN 2.5 TO PN 400

BS 1560 BOSS

Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange

PRESSURE CLASS

150, 300, 400, 600, 900, 1500, 2500

BS10

Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange

TABLE

D, E, F, H

DIN FLANGES

DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673

PRESSURE CLASS

PN 6 TO PN 100
