ASME B16.9 Lateral Tee

[wpseo_breadcrumb]

Specification

CHEMICAL & MECHANICAL COMPOSITION

Enquire Now

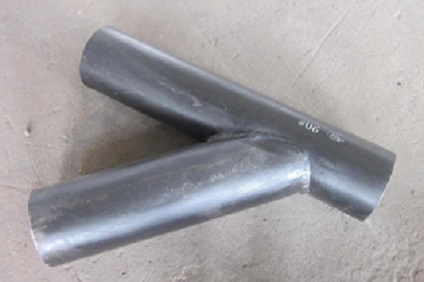

ANSI B16.9 lateral tee

We Have Specialization To Manufacture Customized ANSI/ASME B16.9 Lateral Tee Per Customers’ Specifications.

ANSI/ASME B16.9 Lateral Tee manufacturer, suppliers and exporters in India.

Detailed Information

Prashaant Steel & Alloys is an outstanding ASME B16.9 Lateral Tees fabricator and manufacturer. The ASME B16.9 Lateral Tees are one of the most common forms of Forged fittings used in the industries. These ASME B16.9 Lateral Tees are used in applications in different industries because of the special features they give. At Prashaant Steel & Alloys, we are engaged in the development of the ASME B16.9 Lateral Tees which provide excellent stability and precision in dimension. Our state-of-the-art manufacturing facility helps us to manufacture the ASME B16.9 Lateral Tees in different sizes and diameters. The ASME B16.9 Lateral Tees that we manufacture in different corrosive media give exceptional resistivity to corrosion. Prashaant Steel & Alloys is capable of delivering the shortest lead time to bulk orders of ASME B16.9 Lateral Tees. Prashaant Steel & Alloys houses an enormous inventory that is filled with only the top-notch resources that allow us to provide a wide range of ASME B16.9 Lateral Tees. We do carry out many checks on our goods to guarantee the consistency of the goods.

Pipe Lateral Tee is a kind of a fitting that is T-shaped and is used in piping systems in industries such as pulp/paper, Textile, Refining, Marine, Automotive, Industrial equipment, Waste treatment, Chemical processing, Petroleum, Utilities/power generation as well as Gas compression and distribution industries. The ASME B16.9 Lateral Tee is produced with two outlets, at 90° to the connection to the main pipeline. Since the fitting is a short piece of pipe with a lateral outlet, it is referred to as an ASME B16.9 Carbon Steel Lateral Tee. Pipe Lateral Tee is used to connect pipelines with pipes in a system at a right angle. Pipe Lateral Tees are typically used as pipe fittings.

ASME B16.9 Lateral Tee Specification:

Standards:

ANSI – B 16.9

ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’

API 590-605

ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”

ASME B16.25 – ‘Buttwelding Ends’

ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’

MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’

Schedule:

Sch 5 TO Sch XXS.

Sizes:

1/2” TO 36”

(SEAMLESS UPTO 24”)

(WELDED 8” TO 36” )

Materials:

Monel, Nickel, Inconel, Hastelloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30

Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Type:

Butt Weld (BW)

Thickness:

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS etc.

Dimension:

ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

ASME B16.9 Lateral Tee Dimension:

Nominal

Pipe Size

TYPE

Outside

Diameter OD

STD

X – S

NPS

E & L

D

T

ID

E & L

D

T

ID

1

B

B

B

1.315

1.660

1.900

5.75

6.25

7.00

1.75

1.75

2.00

0.133

0.140

0.145

1.049

1.380

1.610

6.50

7.25

8.50

2.00

2.25

2.50

0.179

0.191

0.200

0.957

1.278

1.500

1

2

3

A/B

B

B

2.375

2.875

3.500

8.00

9.50

10.00

2.50

2.50

3.00

0.154

0.203

0.216

2.067

2.469

3.068

*8.00

**9.00

10.50

11.00

2.50

2.50

3.00

0.128

0.276

0.300

1.939

2.323

2.900

2

3

4

5

B

A/B

B

4.000

4.500

5.562

11.50

12.00

13.50

3.00

3.00

3.50

0.226

0.237

0.258

3.548

4.026

5.047

12.50

*12.00

**13.50

15.00

3.00

3.00

3.50

0.318

0.337

0.375

3.364

3.826

4.813

4

5

6

8

10

A/B

B

B

6.625

8.625

10.750

14.50

17.50

20.50

3.50

4.50

5.00

0.280

0.322

0.365

6.065

7.981

10.020

*14.50

**17.50

20.50

24.00

*3.50

**4.00

5.00

5.50

0.432

0.500

0.500

5.761

7.625

9.750

6

8

10

12

14

16

B

B

B

12.750

14.000

16.000

24.50

27.00

30.00

5.50

6.00

6.50

0.375

0.375

0.375

12.000

13.250

15.250

27.50

31.00

34.50

6.00

6.50

7.50

0.500

0.500

0.500

11.750

13.000

15.000

12

14

16

18

20

24

B

B

B

18.000

20.000

24.000

32.00

35.00

40.50

7.00

8.00

9.00

0.375

0.375

0.375

17.250

19.250

23.250

37.50

40.50

47.50

8.00

8.50

10.00

0.500

0.500

0.500

17.000

19.000

23.000

18

20

24

ASME B16.9 Lateral Tee Uses & Application:

  • Chemical
  • Petrochemical
  • Refineries
  • Fertilizers
  • Power Plant
  • Nuclear Power
  • Oil & Gas
  • Paper
  • Breweries
  • Cement
  • Sugar
