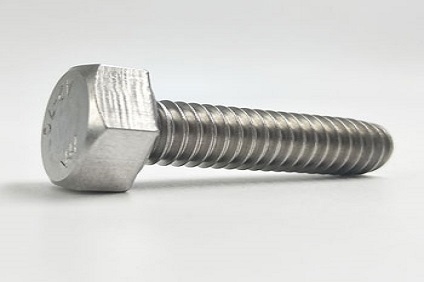

EN 15048 Bolts

BS EN 15048-2 Structural Bolts, washer and EN 15048 grade 8.8 Bolts Manufacturer in India.

Manufacturer and supplier of BS EN 15048 Fully Threaded Set screw, Nut Bolts Suppliers in India.

Detailed Information

Prashaant Steel & Alloys is used in the manufacture of EN 15048 Bolts in various industries that have found applications. At Prashaant Steel & Alloys, we manufacture EN 15048 Bolts in a variety of sizes and dimensions that are suitable for the applications needed. The EN 15048 Bolts that we manufacture are made from our huge inventory using the highest quality of raw materials. EN 15048 Bolts are available in sizes ranging in thickness. At Prashaant Steel & Alloys, we aim to offer full customer satisfaction. Therefore, we also manufacture the EN 15048 Bolts in custom size orders that suit our clients’ specifications and requirements. Prashaant Steel & Alloys has a clientele of many companies from all over the world and caters to both large and small sectors. Prashaant Steel & Alloys houses all the machinery and technology required for the development of high caliber EN 15048 Bolts at its state-of-the-art plant.   At Prashaant Steel & Alloys, the customer service team ensures that all customers are helped with all their needs and demands. Due to the high strength they give, the EN 15048 Bolts from Prashaant Steel & Alloys are widely common.

There are hot dip galvanized, zinc plated, black oxide and other types of finishing available for the different types of Structural Bolts En 15048. The size of the stainless steels range from M2 to M100. The hex bolts range from M3 to M60. The different grades such as the En 15048 Grade 10.9 Bolts range in length from 6mm to 500mm. There are different types of threads available for these bolts. There are also other types of fasteners such as the BS EN 15048 Fully Threaded Setscrew and threaded rods. The thread types range as unified fine, coarse and UNR thread types. The bolt heads range as square, hex, T-head and round. The drive type and neck type of the EN 15048 Nut Bolts also vary with application requirements. The general applications of this type of bolts are in the automotive industry, construction, engineering and other structural applications.

EN 15048 iso 4017 is a standard specification for structural bolts. These are non-tensioned fasteners designed for the use with steel structural components. The bolts can come as plain or passivation treated.

Dimensions Table of EN 15048 Hex Bolt:

Nom. Dia. (d)

M12

M16

M20

M24

M30

M36

Thread Pitch

1.75

2.00

2.50

3.00

3.50

4.00

s

Min.

17.57

23.16

29.16

35.00

45.00

53.80

Max.

18.00

24.00

30.00

36.00

46.00

55.00

a

Max.

5.25

6.00

7.50

9.00

10.50

12.00

df

Min.

16.47

22.00

27.70

33.25

42.75

51.11

c

Min.

0.15

0.20

0.20

0.20

0.20

0.20

Max.

0.60

0.80

0.80

0.80

0.80

0.80

e

Min.

19.85

26.17

32.95

39.55

50.85

60.79

r

Min.

0.60

0.60

0.80

0.80

1.00

1.00

de

Max.

13.70

17.70

22.40

26.40

33.40

39.40

k

Min.

7.32

9.71

12.15

14.65

18.28

22.08

Max.

7.68

10.29

12.85

15.35

19.12

22.92

Standard Weights of EN 15048 Grade 8.8 Bolt:

L

WEIGHT IN KG/1000 PCS

30

8.06

35

9.13

18.20

40

10.20

20.30

35.00

45

11.30

22.20

38.00

53.60

50

12.30

24.20

41.10

58.10

82.00

55

13.40

25.80

43.80

62.60

88.10

115.00

60

14.40

27.80

46.90

67.00

94.10

123.00

65

29.80

50.00

70.30

98.80

131.00

171.00

219.00

70

31.80

53.10

74.70

105.00

139.00

181.00

231.00

75

33.70

56.20

79.10

111.00

147.00

191.00

243.00

80

35.70

59.30

83.60

117.00

155.00

200.00

255.00

85

62.40

88.10

123.00

163.00

210.00

267.00

90

65.50

92.40

127.00

171.00

220.00

279.00

95

68.60

96.80

133.00

179.00

230.00

291.00

100

71.70

101.00

139.00

186.00

240.00

303.00

110

109.00

151.00

202.00

260.00

327.00

120

118.00

164.00

218.00

280.00

351.00

130

174.00

230.00

296.00

374.00

140

185.00

246.00

316.00

398.00

150

262.00

336.00

422.00

160

278.00

356.00

446.00

170

376.00

470.00

180

396.00

494.00

190

519.00

200

544.00

Structural bolts EN 15048 Thread Length:

Nominal Dia Thr Pitch

Thread Dia

Body Dia

Flat Width

Head Height

Length

Thread Length

M1.6X.35

1.6000

1.6000

3.2000

1.2250

12, 16

9

M2X.4

2.0000

2.0000

4.0000

1.5250

16, 20

10

M2.5X.45

2.5000

2.5000

5.0000

1.8250

16, 20, 25

11

M3X.5

3.0000

3.0000

5.5000

2.1250

20 to 30 by 5

12

M4X.7

4.0000

4.0000

7.0000

2.9250

25 to 40 by 5

14

M5X0.8

5.0000

5.0000

8.0000

3.6500

25 to 50 by 5

16

M6X1

6.0000

6.0000

10.0000

4.1500

30 to 50 by 5, 60

18

M8X1.25

8.0000

8.0000

13.0000

5.4500

40 to 70 by 5, 80

22

M10X1.5

10.0000

10.0000

16.0000

6.5800

45 to 70

by

5, 80, 90, 100

26

M12X1.75

12.0000

12.0000

18.0000

7.6800

50 to 70

by

5, 80 to 120 by 10

30

M16X2

16.0000

16.0000

24.0000

10.1800

65, 70 to 160 by 10

38, 44

M20X2.5

20.0000

20.0000

30.0000

12.7150

80 to 160

by

10, 180, 200

46, 52

M24X3

24.0000

24.0000

36.0000

15.2150

90 to 160

by

10, 180 to 240 by 20

54, 60, 73

M30X3.5

30.0000

30.0000

46.0000

19.1200

110 to 160

by

10, 180 to 300 by 20

66, 72, 85

M36X4

36.0000

36.0000

55.0000

22.9200

140, 150, 160, 200 to 360

by 20

84, 97

M42X4.5

42.0000

42.0000

65.0000

26.4200

160 to 440 by 20

96, 109

M48X5

48.0000

48.0000

75.0000

30.4200

180 to 480 by 20

108, 121

M56X5.5

56.0000

56.0000

85.0000

35.5000

220 to 500 by 20

137

M64X6

64.0000

64.0000

95.0000

40.5000

260 to 500 by 20

153
