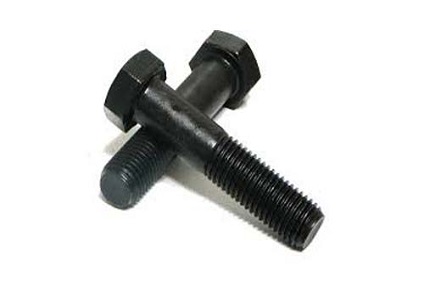

ASTM A193 Grade B16 Bolts

ASME SA193 B16 Nuts, Stud Bolts. Threaded Rod and Hex Bolts manufacturer in India.

Get A193 B16 Material, ASME SA 193 B16 Hex Nuts, ASME SA193 B16 Hex Bolts at Best Price in India.

Detailed Information

Prashaant Steel & Alloys is a well-known ASTM A193 GRADE B16 Bolts maker and retailer. We manufacture ASTM A194 ASTM A193 GRADE B16 BOLTS Nuts with the best quality raw materials from our vast inventory. Prashaant Steel & Alloys produces ASTM A193 Grade B16 Bolts of excellent quality and has carved out a niche for itself in the industry. Our ASTM A193 GRADE B16 BOLTS Nuts are highly common and are used in a number of industries due to their high strength and reliability. Prashaant Steel & Alloys has a well-equipped production facility that can fill huge orders of ASTM A193 Grade B16 Bolts in a range of sizes and diameters. We manufacture ASTM A193 GRADE B16 BOLTS Nuts and export them to all of the world’s big cities. We store our goods in suitable wooden boxes and ship them with all appropriate paperwork to prevent product degradation during shipping.

The B16 Set screws and other fasteners that are greater than M100 and up to M180 in diameter have 690MPa minimum tensile strength and 585MPa minimum yield strength. The SS A193 B16 Flange Bolts are used with inbuilt flanges. These flanges help the nuts to stay in place while fastening and after connection. The material is chromium, molybdenum, and vanadium alloy steel. Therefore the ASTM A193 Gr B16 Socket head cap screw is much corrosion resistant to general corrosive applications. There are different types of fasteners such as the SA-193-B16 lock Nuts which are used mostly in automobile wheels to make sure that the nuts don’t loosen due to high vibration. The ASTM A193 Grade B16 Bolts can be heat treated. The usual heat treatment is the quenched and tempered method. The A193 B16 Material needs to be heated to 860 degrees Celsius minimum to get the desired heat treated hardness. The B16 Nut Bolt is used in some of the high tensile and high stress applications such as power plants, boilers, railway tracks and others. The B16 Head Bolts are one of the special types. Each of the different types of bolts in this specification are used under high temperature, high pressure conditions.

ASME SA 193 B16 Hex Nuts are made up of carbon, manganese, phosphorus, sulfur, chromium, molybdenum, vanadium and aluminum in the composition. One of the most used types is the SA 193 B16 Hex Bolts that are used for high strength and connection. The diameters of the ASTM A193 B16 Nuts range up to M100 for fasteners with 760MPa minimum tensile strength and 655MPa minimum yield strength.

ASME SA193 B16 Heavy Hex Bolts Standard Dimensions:

Diameter (D)

Body Diameter (D)

Across the Flats (F)

Across the Corners ©

Head Height (H)

Thread Lengths (T)

MAX

MIN

MAX

MIN

MAX

MIN

MAX

MIN

6”

6”

5/8

0.642

0.605

1.062

1.031

1.227

1.175

0.444

0.378

1.5

1.75

3/4

0.768

0.729

1.25

1.212

1.443

1.383

0.524

0.455

1.75

2

7/8

0.895

0.852

1.438

1.394

1.66

1.589

0.604

0.531

2

2.25

1 1/8

1.149

1.098

1.812

1.756

2.093

2.002

0.78

0.658

2.5

2.75

1 1/4

1.277

1.223

2

1.938

2.309

2.209

0.876

0.749

2.75

3

1 1/2

1.531

1.47

2.375

2.3

2.742

2.622

1.036

0.902

3.25

3.5

1 3/4

1.785

1.716

2.75

2.662

3.175

3.035

1.196

1.054

3.75

4

2

2.039

1.964

3.125

3.025

3.608

3.449

1.388

1.175

4.25

4.5

2 1/4

2.305

2.214

3.5

3.388

4.041

3.862

1.548

1.327

4.75

5

2 3/4

2.827

2.711

4.25

4.112

4.907

4.688

1.869

1.632

5.75

6

3

3.081

2.961

4.625

4.475

5.34

5.102

2.06

1.815

6.25

6.5

ASTM A193 B16 Nuts Chemical Resistance Guide:

Chemicals

% Percentage

C.

0.37 – 0.49%

Mn.

0.65 – 1.10%

Si.

0.15 – 0.35%

P.

0.035%.

S.

0.040%

Cr.

0.75 – 1.20%

Ni.

Mo.

0.15 – 0.25%

Mechanical Characteristics of SA 193 B16 Hex Bolts:

Grade

Diameter

Tensile ksi, min

Yield, ksi, min

Elong, %, min

RA % min

HBW

HRC

B16

Up to 2-1/2

125

105

18

50

321 max

35 max

Over 2-1/2 to 4

110

95

17

45

Over 4 to 8

100

85

16

45



A193 Gr B16 Material selection and specification:

Additional Requirements

NACE MR0103/ MR0175/ ISO 15156 Compliance

Dimensions Standards

ASME B18.2.1, B18.3

Additional Certifications

PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified

Threads Configuration

ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads

Mandatory Requirements

Free from Mercury & Radioactive Contamination

Certification

Dual Certified As per ASTM & ASME Codes

Standard Specification of Grade B16 Bolts:

  • ASTM A193 / A193M – 16 : Standard Specification for High-Temperature Bolting, with Expansion Coefficients Comparable to Austenitic Stainless Steels
  • ASTM A1082 / A1082M – 16 : Standard Specification for High Strength Precipitation Hardening and Duplex Stainless Steel Bolting for Special Purpose Applications
  • ASTM F2281 : Standard Specification for Stainless Steel and Nickel Alloy Bolts, Hex Cap Screws, and Studs, for Heat Resistance and High Temperature Applications Designation
  • ASTM A1014 / A1014M – 16 : Standard Specification for Precipitation-Hardening Bolting (UNS N07718) for High Temperature Service
  • ASTM A962 / A962M – 16a : Standard Specification for Common Requirements for Bolting Intended for Use at Any Temperature from Cryogenic to the Creep Range
  • ASTM A638 / A638M : Standard Specification for Precipitation Hardening Iron Base Superalloy Bars, Forgings, and Forging Stock for High-Temperature Service
