Types of Valves Products

Check Valves

[wpseo_breadcrumb]

Specification

CHEMICAL & MECHANICAL COMPOSITION

Enquire Now

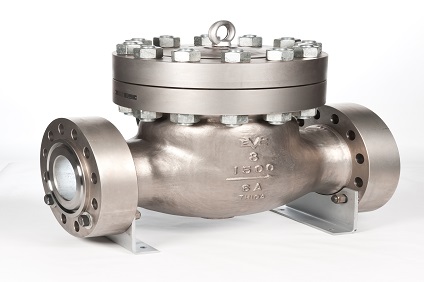

Check-Valves

Check Valve, Industrial Check Valve, Check Valves Dealers, Check Valves Distributors, Check Valves Exporters, Check Valves Suppliers, Check Valve Manufacturers in india, Check Valves Price in India.

Check Valves Manufacturers, Check Valves Suppliers, Check Valves Stockists, Pressure Sealed Check Valves Manufacturer, DIN Lift Check Valves Supplier in India.

Detailed Information

Check Valves is a leading producer and retailer of Prashaant Steel & Alloys. We manufacture Check Valves at our gigantic factory using modern machinery and the latest technologies. Only high quality Check Valves are obtained from Prashaant Steel & Alloys. Therefore, our diverse inventory utilizes the highest quality of raw materials available. The Check Valves we make have a strong foundation and exhibit outstanding characteristics. We produce the Check Valves in a variety of styles and sizes suitable for use in many industries. We also take custom orders from our customers that produce the Check Valves, according to their demand and needs. At Prashaant Steel & Alloys, we are focused on offering our best to our customers, and we use the highest quality raw materials to manufacture Check Valves. Thanks to the incredible resistant properties we have, these Check Valves are commonly used in various applications.

Check Valves are often forgotten by many industry experts. However, Check Valves are one of the most important Valves in a system. They work to ensure smooth operations and safety. But what is a Check Valves and how does it work? A Check valve, clack valve, non-return valve, reflux valve, retention Valves or one-way Valves is a Valves that normally allows fluid (liquid or gas) to flow through it in only one direction.

Check Valves are two-port valves, meaning they have two openings, one for fluid to enter and the other for fluid to leave. There are various types of Check Valves used in a wide variety of applications. Check Valves are often used for common household items. Although KHD Valves Automation Pvt Ltd’s Check Valves are available in a wide range of sizes and costs, they are generally very small, simple, or inexpensive. Check Valves work automatically and most are not controlled by a person or any external control.

Check Valves are flow sensitive and rely on the line fluid to open and close. The internal disc allows flow to pass forward smoothly, which opens the valve. The disc begins closing the Valves as forward flow decreases or is reversed, depending on the design. Construction is normally simple with only a few components such as the body, seat, disc, and cover. Depending on design, there may be other items such as a stem, hinge pin, disc arm, spring, ball, elastomers, and bearings.

Material of Construction:

Cast Iron

: IS 210 Gr FG 200

Cast Carbon Steel

: ASTM A 216 Gr WCB

Cast Stainless Steel

: ASTM A 351 Gr CF 8/CF 8M

Forged Carbon Steel

: ASTM A 105

Forged Stainless Steel

: ASTM A 182 Gr F304 / F316

Design Type

: Swing Type Disc / Piston Lift Type Disc

End Connection

: Screwed AS PER BSP/BSPT/NPT

Socketweld

: AS PER ANSI B 16.11

Flanged

: AS PER ANSI B 16.5

Pressure Rating

: ASA 125#, 150#, 300#, 600#, 800#, PN 16 & PN 40

Engineering Option

: Gear Operated, Electrical Actuated,

Size Range

: 15mm to 300 mm

Design & Testing International Standard:

Valve Design

: BS 5351 / ANSI B 16.34 / API 6D

Pressure Testing

: BS 6755-I

Face To Face

: ANSI B 16.10

Flange Drilling

: ANSI B 16.5 / BS 10 Table / DIN / IS 6392

Butt Weld End

: ANSI B 16.25

Socket Weld End

: ANSI B 16.11

Screwed End

: ANSI B 1.20.1(BSP/NPT)

Types of Check Valves:

  • Lift Check Valves
  • Non-Slam Check Valves
  • Double Disc Wafer Check Valves
  • Tilting Disc Check Valves
  • Pressure Sealed Check Valves
  • Lift Wafer Check Valves
  • Single disc Check Valves
