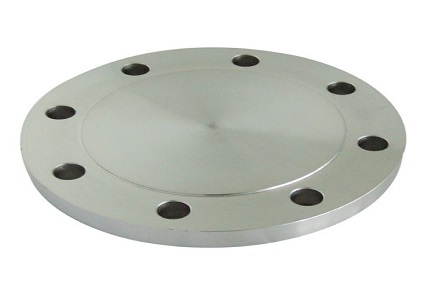

blind-flange

Blind Flanges, ASTM A182 Blind Flanges, Stainless Steel Blind Flanges, ANSI B16.5 Blind Flanges, Steel Blind Flanges Manufacturers, Carbon Steel Blind Flanges, Steel Blind Flanges Suppliers In India.

Blind Flanges Suppliers, Carbon Steel Blind Flanges Stockist, Stainless Steel Blind Flanges Dealers, ANSI B16.5 Blind Flanges Exporter, Steel Blind Flanges Manufacturers, ASTM A182 Blind Flanges Manufacturers, Steel Blind Flanges Suppliers In India.

Detailed Information

Prashaant Steel & Alloys is known as the pinnacle in the world of metal market for the best quality Reducer Insert production in India. One of the largest Manufacturers & Suppliers of of ASTM A182 Blind Flanges , BLRF Flanges, Carbon Steel Blind Flanges, Stainless Steel Blind Flanges, Alloy Steel Blind Flanges, Nickel Blind Flanges, Inconel Blind Flanges, Hastelloy Blind Flanges, ASTM A182 Blind Flanges, Blind Flanges manufacturers in india. Best Price of Blind Flanges in all size, classes & dimensions like Class 150 Blind Flanges, Class 300 Blind Flanges, Class 900 Blind Flanges, Class 1500 Blind Flanges, Class 2500 Blind Flanges, pn16 blind flange dimensions & pn40 blind flange dimensions Suppliers in india. Prashaant Steel & Alloys has been a professionally managed importer, stockist and supplier of ferrous and non-ferrous metals.

We are capable of providing a vast range of materials, from stock, to suit your needs. To close the ends of piping systems is used as a blind flange. It’s a sort of round platform with no middle but all the right bolt holes. A Stainless Steel Blind Flange is available in different sizes and materials and is used to ensure that the ends of tubing, valves or nozzles are positively connected. This flange facilitates easy access to a line once it is screened. Sometimes the ANSI B16.5 blind flanges are adjusted or employed to accommodate a nominal tube to which the cut-off is made. The drop can be either threaded or welded. From highly specialized non-standard material to off-the-shelf items, from production to prototype, from low minimums to mill runs. Prashaant Steel & Alloys has the experience to solve your most difficult requirements. Also, Prashaant Steel & Alloys offers a commendable range of Orifice Flange, for prestigious clients with competitive price Each of our department right from procurement, production, inventory, market, sales & services are fully automated for a better supply chain management, so as to offer the best product quality & prompt service to our clients. Along with technological equipment, manpower is also given special attention. All our professionals are highly dedicated and committed to their client’s requirements. Our team of workers starves to provide quality service to you according to your specification.

Blind Flanges Specifications:

Size

½” (15 NB) to 48″ (1200NB)

Standard

ANSI A182, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820

Dimensions

ANSI A182, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA

Class

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Specialize

As per drawing

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large

Form

SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc

Stainless Steel

ASTM A-479, A-182, 304, 304L,304H,304S, 316, 316L,316 Ti, 316H, 309, 310, 310S, 317L, 321, 347, 409, 410, 420, 430, 440, 446, 904L. etc.

Duplex Steel

2205, 31803, 32750, 32760, 2101, 2304.

Alloy Steel

A-182 – F5, F9, F11, F12, F21, F22 & F91

Special Grade

Stainless Steel 17-4 PH, Alloy 800, Alloy 600. Hastelloy C276.

Carbon Steel

A 105, LF 2, Duplex Steel.

Spectacle Blind Flange 2500 Lbs:

PIPE
SIZE
Spectacle Blinds 2500# Flange
A B C D E F
1/2″ 0.625 2.625 3.5 1.50 3/8
3/4″ 0.82 2.875 3.75 0.875 1.625 3/8
1″ 1.05 3.25 4.25 1.0 2.5 3/8
1-1/4″ 1.38 4.0 5.125 1.125 2.5 1/2
1-1/2″ 1.61 4.5 5.75 1.25 2.75 5/8
2″ 2.07 5.625 6.75 1.125 2.75 5/8
2-1/2″ 2.47 6.5 7.75 1.25 3.0 3/4
3″ 3.07 7.625 9.0 1.375 3.0 7/8
4″ 4.03 9.125 10.75 1.625 3.5 1-1/8
5″ 5.05 10.875 12.75 1.875 3.5 1-3/8
6″ 6.06 12.375 14.5 2.125 3.5 2
8″ 7.81 15.125 17.25 2.125 4.0 2-1/8
10″ 9.75 18.625 21.25 2.625 4.5 2-5/8
12″ 11.37 21.5 24.375 2.875 4.5 3-1/8

Spectacle Blind Flange 1500 Lbs:

PIPE
SIZE
Spectacle Blind 1500# Flanges
A B C D E F
1/2″ 0.625 2.375 3.25 1.50 1/4
3/4″ 0.82 2.625 3.50 0.875 1.625 3/8
1″ 1.05 3.0 4.0 1.0 2.5 3/8
1-1/4″ 1.375 3.375 4.375 1.0 2.5 3/8
1-1/2″ 1.61 3.75 4.875 1.125 2.75 1/2
2″ 2.07 5.5 6.5 1.0 2.75 1/2
2-1/2″ 2.47 6.375 7.5 1.125 3.0 5/8
3″ 3.07 6.75 8.0 1.25 3.0 3/4
4″ 4.03 8.125 9.5 1.375 3.5 7/8
5″ 5.05 9.875 11.5 1.625 3.5 1-1/8
6″ 6.06 11.0 12.5 1.5 3.5 1-3/8
8″ 7.98 13.75 15.5 1.75 4.0 1-5/8
10″ 10.02 17.0 19.0 2.0 4.5 2
12″ 11.94 20.375 22.5 2.125 4.5 2-3/8
14″ 13.12 22.625 25.0 2.375 5.0 2-5/8
16″ 15.0 25.125 27.75 2.625 5.25 3
18″ 16.88 27.625 30.5 2.875 5.75 3-3/8
20″ 18.81 29.625 32.75 3.125 6.0 3-3/4
24″ 22.62 35.375 39.0 3.625 7.0 4-3/8

Spectacle Blind Flange 900 Lbs:

PIPE
SIZE
Spectacle Blind 900# Flange
A B C D E F
1/2″ 0.625 2.375 3.25 1.50 1/4
3/4″ 0.0825 2.625 3.50 0.875 1.625 1/4
1″ 1.05 3.0 4.0 1.0 2.25 1/4
1-1/4″ 1.44 3.375 4.375 1.0 2.25 3/8
1-1/2″ 1.68 3.5 4.875 1.125 2.625 3/8
2″ 2.16 5.5 6.5 1.0 2.25 1/2
2-1/2″ 2.64 6.375 7.5 1.125 2.625 1/2
3″ 3.25 6.5 7.5 1.0 2.625 5/8
4″ 4.25 8.0 9.25 1.25 3.0 3/4
5″ 5.3 9.625 11.0 1.375 3.375 7/8
6″ 6.36 11.25 12.5 1.25 3.375 1
8″ 8.33 14.0 15.5 1.5 3.75 1-3/8
10″ 10.42 17.0 18.5 1.5 4.125 1-5/8
12″ 12.39 19.5 21.0 1.5 4.125 1-7/8
14″ 13.62 20.375 22.0 1.625 4.5 2-1/8
16″ 15.62 22.5 24.25 1.75 4.875 2-3/8
18″ 17.62 25.0 27.0 2.0 5.25 2-5/8
20″ 19.56 27.375 29.5 2.125 5.25 2-7/8
24″ 23.5 32.875 35.5 2.625 6.0 3-1/2

Spectacle Blind Flange 600 Lbs:

PIPE
SIZE
Spectacle Blind 600# Flange
A B C D E F
1/2″ 5/8 2 2-5/8 5/8 1-1/2 1/4
3/4″ 13/16 2-1/2 3-1/4 3/4 1-1/2 1/4
1″ 1-1/8 2-3/4 3-1/2 3/4 2-1/4 1/4
1-1/4″ 1-7/16 3-1/8 3-7/8 3/4 2-1/4 3/8
1-1/2″ 1-11/16 3-5/8 4-1/2 7/8 2-5/8 3/8
2″ 2-1/8 4-1/4 5 3/4 2-1/4 3/8
2-1/2″ 2-5/8 5 5-7/8 7/8 2-5/8 1/2
3″ 3-1/4 5-3/4 6-5/8 7/8 2-5/8 1/2
3-1/2″ 3-3/4 6-1/4 7-1/4 1 3 5/8
4″ 4-1/4 7-1/2 8-1/2 1 3 5/8
5″ 5-1/4 9-3/8 10-1/2 1-1/8 3-3/8 3/4
6″ 6-3/8 10-3/8 11-1/2 1-1/8 3-3/8 7/8
8″ 8-3/8 12-1/2 13-3/4 1-1/4 3-3/4 1-1/8
10″ 10-7/16 15-5/8 17 1-3/8 4-1/8 1-3/8
12″ 12-3/8 17-7/8 19-1/4 1-3/8 4-1/8 1-5/8
14″ 13-5/8 19-1/4 20-3/4 1-1/2 4-1/2 1-3/4
16″ 15-5/8 22-1/8 23-3/4 1-5/8 4-7/8 2
18″ 17-5/8 24 25-3/4 1-3/4 5-1/4 2-1/8
20″ 19-5/16 26-3/4 28-1/2 1-3/4 5-1/4 2-1/2
24″ 23-1/2 31 33 2 6 2-7/8

Types of Flanges Available:

  • Blind Flanges
  • Slip on Flanges
  • Socket Weld Flanges
  • Threaded Flanges
  • Weld Neck Flange
  • Lap Joint Flange
  • Expander Flange
  • Nippo Flanges
  • Reducing
